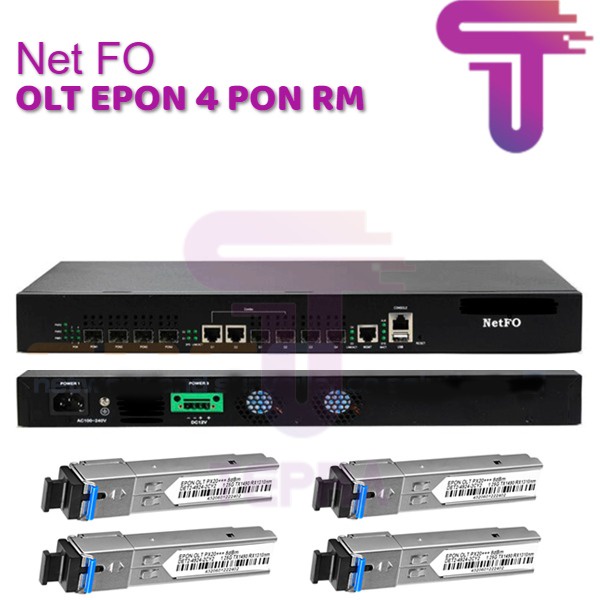

OLT EPON 4 PON (AC 220V + DC 12V) Chassis Rackmount 1U

Detail OLT EPON 4 PON (AC 220V + DC 12V) Chassis Rackmount 1U

OLT EPON 4 PON Uplink 2 SFP ports + 2Combo ports (AC 220V + DC 12V)
Chassis Rackmount 1U

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

*** GARANSI 3 BULAN

Technical Specification

Panimeter Specificaiion
Operating v1avelength 1310(RX)/1490(TX)
Optical power +2.5-+7d8m Receivlngsensitivity-30dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 4 PON, maximum 255pcs ONU
MAC 8k
Uplinkport 2 SFP ports+ 2Combo ports
PON port 4 SFP 1000M fiber ports

Control port 1 Console(RJ45), to debug the device
1 USB port
1101100/1000M RJ45port
MTBF 100,000 hours

EPON traits
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, mairnenanceand upgrade
Support auto discovery and autoregister of ONU (real-time operation)
Support IEEE802.3ah
Support DB.b.\•tith minrnurnt Kbps granularity adjustable
Support 1 Gbps up link and down link symmetrical bandwidth

Protocolssupported
Support IEEE802.3. IEEE802.3u. IEEE802.3ab. IEEE802.3z
Support IEEE802.10 VLAN. IEEE802.1d SpanningTree
Support IEEE 802.1POoS. IEEE802.3X Flow Control
Support IEEE802.3ad Trunk. IEEE802.1W RSTP

Network management
Support GUI manacemern based on SNt.,,1P
Support VVEB andTelnetGUI manaeemeotbased on CLI

Other functions
Support 1 GMPv•1N2 protocol report, query and leave message mouse
Support DHCP Snooping
Support lpv4 address le8Ining basedat DHCP Snooping
Support ARP Snooping,QoS etc

Working Environment

Parameter Specification
Power
AC100-240V 50/60HZ DC12V/5A redundantthree powersupply
Power Consumption
25W

EPON OLT PX20+++ 7dB
o Single-fiber bidirectional hot-swappable SFP with SC/UPC interface
o Up to 1.25Gbps operating rate
o Transmission distance up to 20KM

Gambar produk
