Detail OLT EPON 4 PON 4 Gigabit UPLink | EPON OLT 4PON 4GE Uplink

Deskripsi : OLT EPON 4 PON SC , 2SC ,2 Gigabit LAN ( Uplink )

Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain

- BONUS 1 Unit EPON ONT ( Selama Persediaan msh ada )
- OLT GARANSI 3 BULAN
- SFP GARANSI 1 BULAN

Varian :
SFP Epon 7 dBi & 9 dBi
Tanpa SFP = tidak dapat SFP ( walaupun pilih 7/9 dB ) tetep tidak dapat SFP

Mini 4 port Epon olt
Version:Mini 4 port Epon olt
Color:Black
Battery:AC100V~240V
Function:Mini 4 port Epon olt
Accessories:Plug


Parameter Specification
Operating wavelength : 1310(RX) /1490(TX)
Optical power : +2.5 ~ +7dBm
Receiving sensitivity : -30dBm
Max distance : 20km
Max splitter ratio : 1:64
Capacity : 4 PON, maximum 256pcs ONU
MAC : 8k
Uplink port : 2 SFP ports + 2 TP ports
PON port : 4 SFP PON ports
Control port :
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device
1 USB port
MTBF : 100,000 hours

EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)

Protocols supported
Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree
Support IEEE 802.1P QoS、IEEE802.3X Flow Control
Support IEEE802.3ad Trunk、IEEE802.1W RSTP

Network management
Support GUI management based on SNMP
Support WEB and Telnet GUI management based on CLI

Other functions
Support 1GMPv1/v2 protocol report, query and leave message mouse
Support ONU remote configure and upgrade
Support real-time alarm detection, accurate fault location
Support the alarm information sent to the mailbox, support SMS alarm

Gambar produk

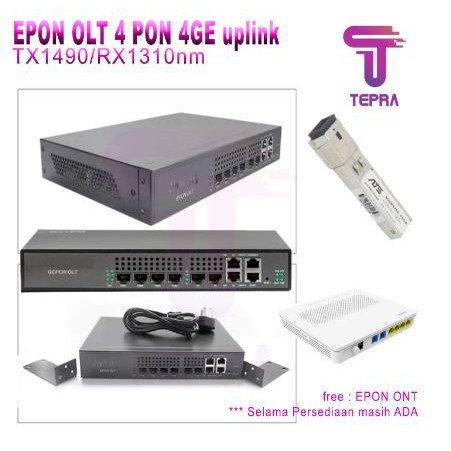

OLT EPON 4 PON 4 Gigabit UPLink | EPON OLT 4PON 4GE Uplink
