OLT EPON 2 PON 2 Gigabit LAN | EPON OLT 2PON 2Gigabit

Detail OLT EPON 2 PON 2 Gigabit LAN | EPON OLT 2PON 2Gigabit

Deskripsi : OLT EPON 2 PON , 2 Gigabit LAN + 2 SFP PX20+++

Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain

- OLT GARANSI 3 BULAN
- SFP GARANSI 1 BULAN
Bisa dipasang di rakmount

Varian :
SFP Epon 7 dBi & 9 dBi
Tanpa SFP = tidak dapat SFP ( walaupun pilih 7/9 dB ) tetep tidak dapat SFP

Mini 2 port epon olt
Version：Mini 2 port epon olt
Color：black
Battery：AC100V~240V
Function：Mini 2 port epon olt
Accessories：Plug

Technical Specification
Parameter Specifications
Operating wavelength : 1310（RX）/1490（TX）
Optical power : +0 ~ +7dBm
Receiving sensitivity : -27dBm
Max distance : 20km
Max splitter ratio : 1:64
Capacity : 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC : 8K
Uplink port : 2 1000M Ethernet RJ45 ports
PON port : 2 SFP fiber ports
Control port : RJ45 console port, to debug the device
MTBF : 100,000 hours
EPON traits :
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS

Management :
CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc

Working Environment

Parameter Specification
Power supply : AC220V
Power consumption : 11W
Operating temperature :-10～55℃
Storage temperature : -40～70℃
Humidity : 5%～90% non-condensing
Dimension : 276mm(length) ×200mm(width) ×44mm(height)

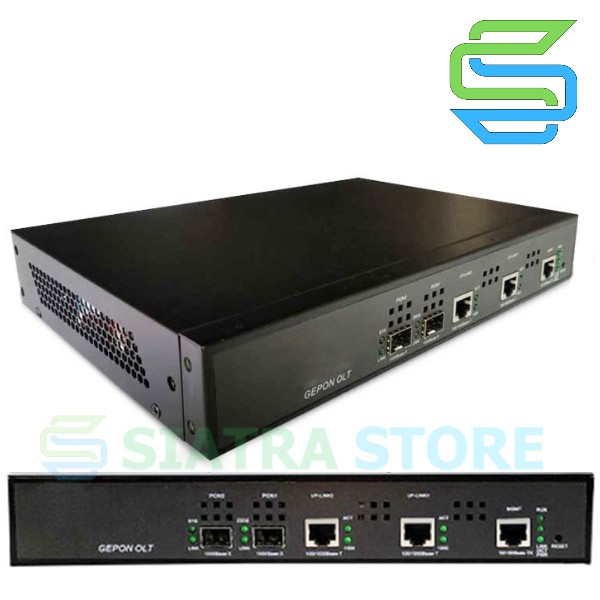

Gambar produk
