Detail ols joinwit jw3109 optical light source
Video perkenalan produk ols joinwit jw3109 optical light source. Sumber: Shopee.
Specifications ;
Wavelengths(nm) : 850 / 1300 / 1310 / 1550
Emitter Type : FP-LD,LED or others please specify
Typical Output Power (dBm) : -7dBm for LD, -20dBm for LED
Spectral Width(nm) : 10
Output Stability : 0.05dB/15mins; 0.1dB/ 8hours
Modulation Frequencies : CW,270Hz,1KHz,2KHz
Optical Connector : FC/PC
Power Supply : Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour) : 45
Operating Temperature() : -10~+60
Storage Temperature() : -25~+70
Dimension : 23.5cmX16cmX8cm
Weight : 600 Gram
Gambar produk

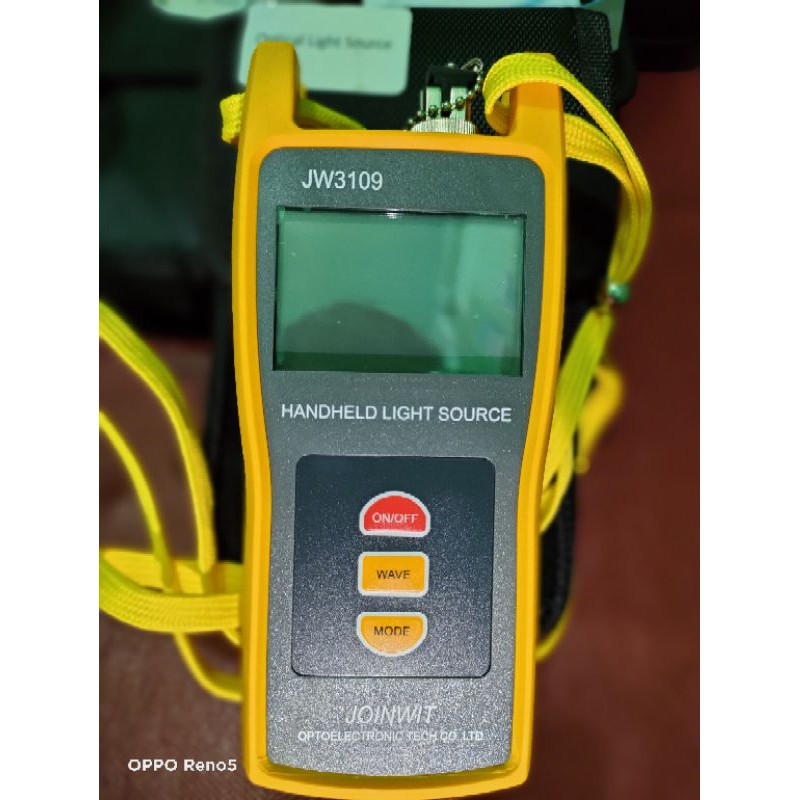

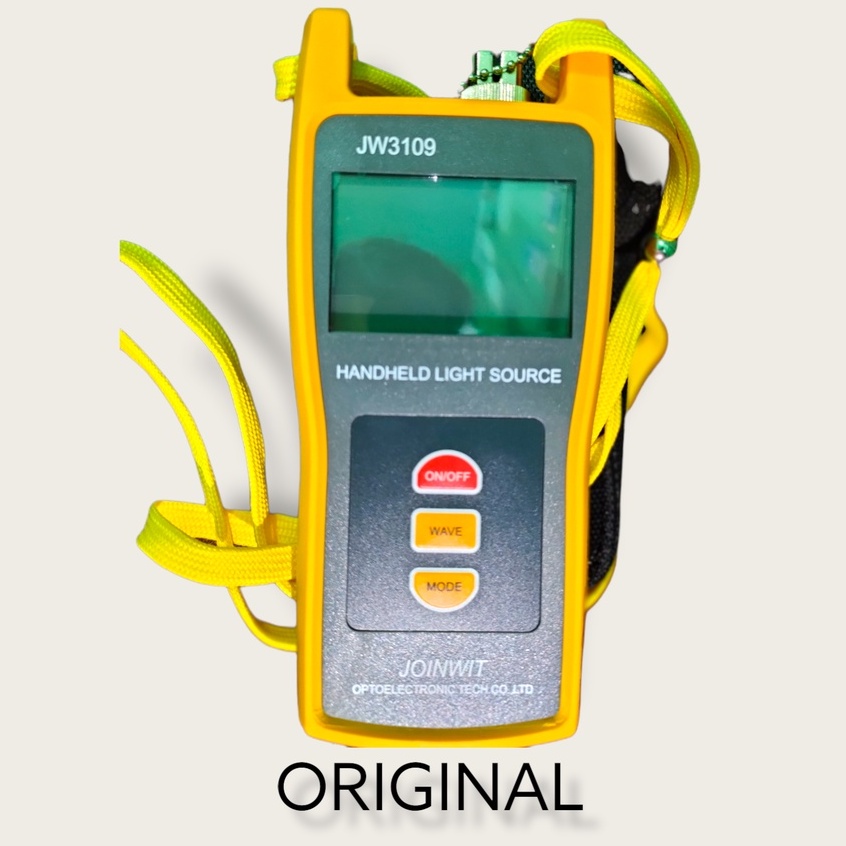

ols joinwit jw3109 optical light source
ols joinwit jw3109 optical light source
ols joinwit jw3109 optical light source
ols joinwit jw3109 optical light source
