OLED LCD 0.91 Inch 128 x 32 White I2C Protocol
Deskripsi singkat
Elektronik > TV & Aksesoris > Bracket TV > OLED LCD 0.91 Inch 128 x 32 White I2C Protocol
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail OLED LCD 0.91 Inch 128 x 32 White I2C Protocol
OLED LCD 0.91 Inch 128 x 32 White I2C ProtocolSpesifikasi:

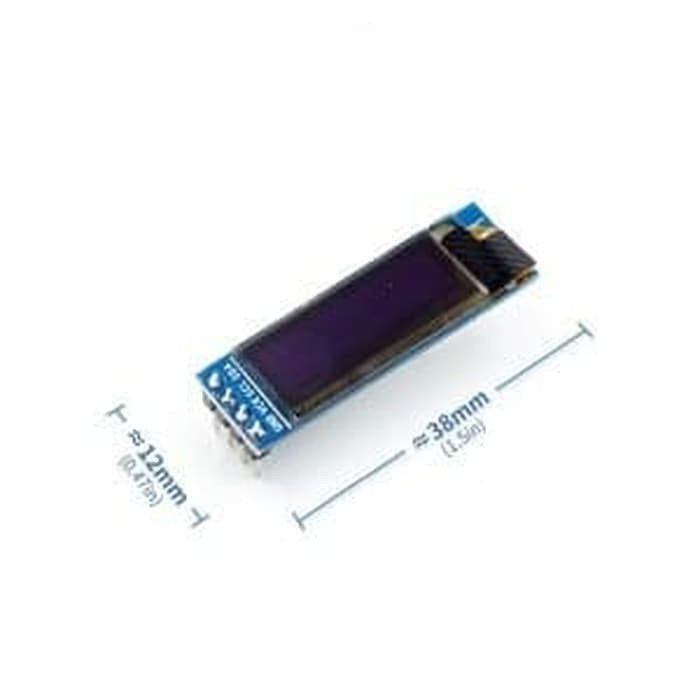

-12.0mm x 39mm (0.47" x 1.5")
-Display area: 7mm x 25mm
-Thickness: 4mm
-Diagonal Screen Size0.91"
-Number of Pixels128 32
-Interface I2C
-Drive IC: SSD1306
-Color DepthMonochrome (White)
- GND: Power Ground
- VCC: Power + (DC 3.3 ~5v)
- SCL: Clock Line
- SDA: Data Line
