OLED 128x64 LCD I2C SPI 0.96 INCH WHITE BLUE YELLOW BLUE BACKLIGHT

Detail OLED 128x64 LCD I2C SPI 0.96 INCH WHITE BLUE YELLOW BLUE BACKLIGHT

Hi #RekanEasyWare ...

UNTUK ITEM INI BELUM DISOLDERKAN!!! JIKA INGIN DISOLDERKAN SILAHKAN TAMBAHKAN JASA SOLDER SAAT CEKOUT!!*

- (Blue Color) EasyWare Part#: EP000270
- (White Color) EasyWare Part#: EP000459

What is OLED?
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

The use of OLED technology offers the following advantages for flat-panel displays?
1. A simplified manufacturing process compared to TFT-LCD (See comparison of Picture 1 and Picture 2 below)
2. Self-emitting light, in contrast to the required backlight for TFT-LCD
3. High luminosity
4. Lightweight and thin (less than 2 mm)
5. Capable of wide viewing angles?~180??
6. Low operating voltage and power consumption
7. Quick response (~ ? second level)
8. Wide range of operating temperatures (-40c to 85c)

Spesifications :
- High resolution: 128 * 64
- Viewing angle:> 160
- Supports many control chip: Fully compatible with FOR Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
- Ultra-low power consumption: full screen lit 0.08W
- Voltage: 3V ~ 5V DC
- Working Temperature: -30 c ~ 70 c
- Module Size: 27.0MM * 27.0MM * 4.1MM
- I2C/IIC Interface, need 2 IO only.
- Driver IC: SSD1306

Package :
- 1pcs 0.96" I2C IIC SPI Serial 128X64 OLED LCD LED Display Module for Arduino

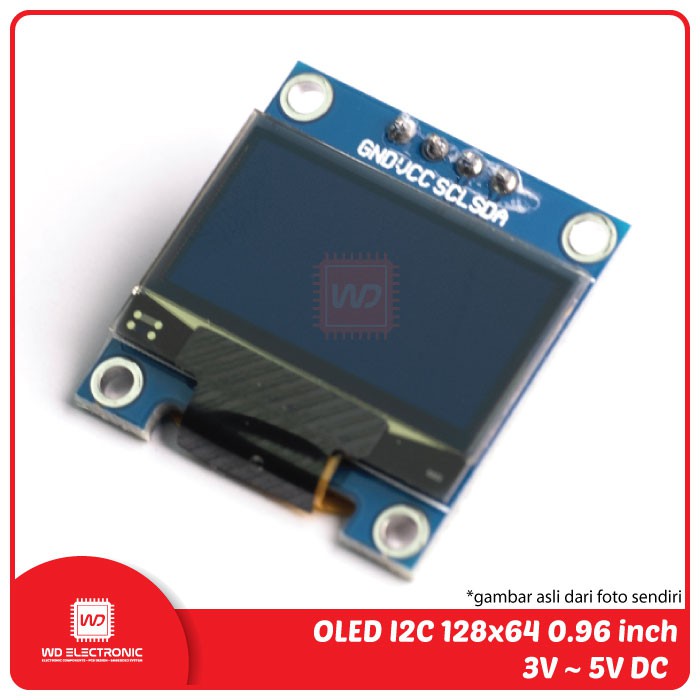

Gambar produk
