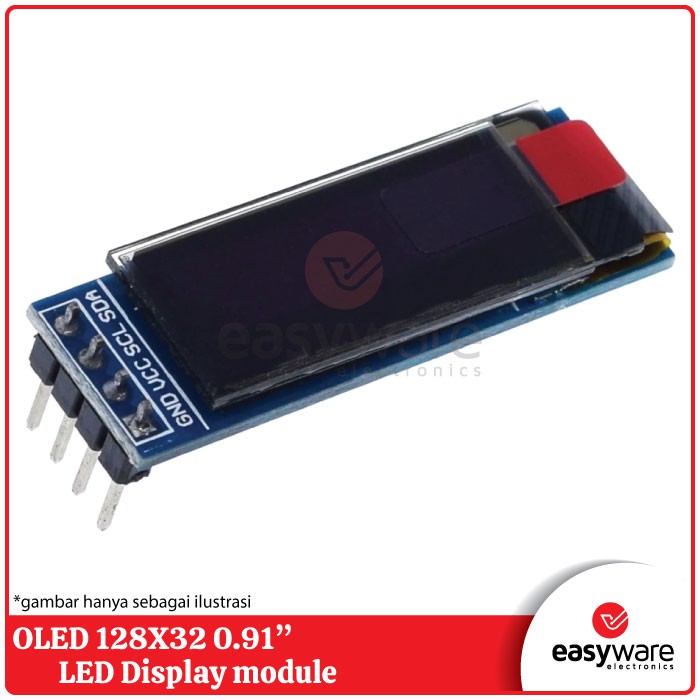

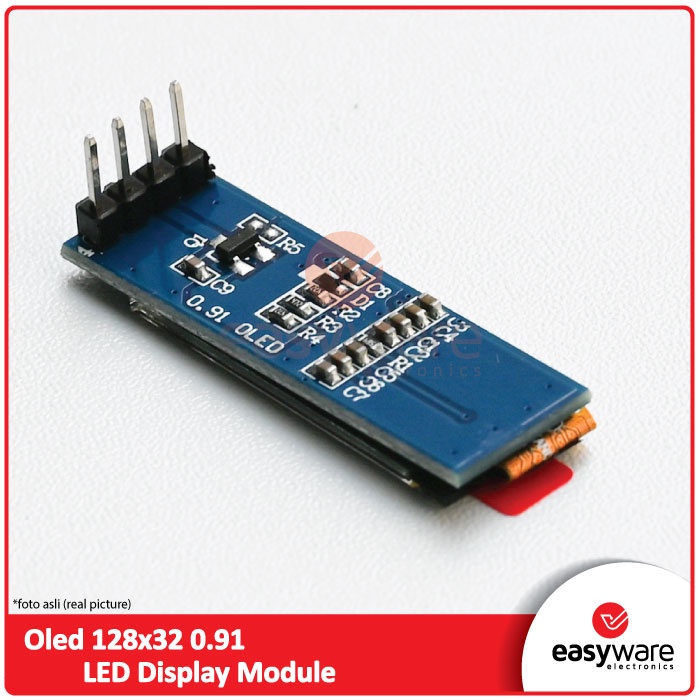

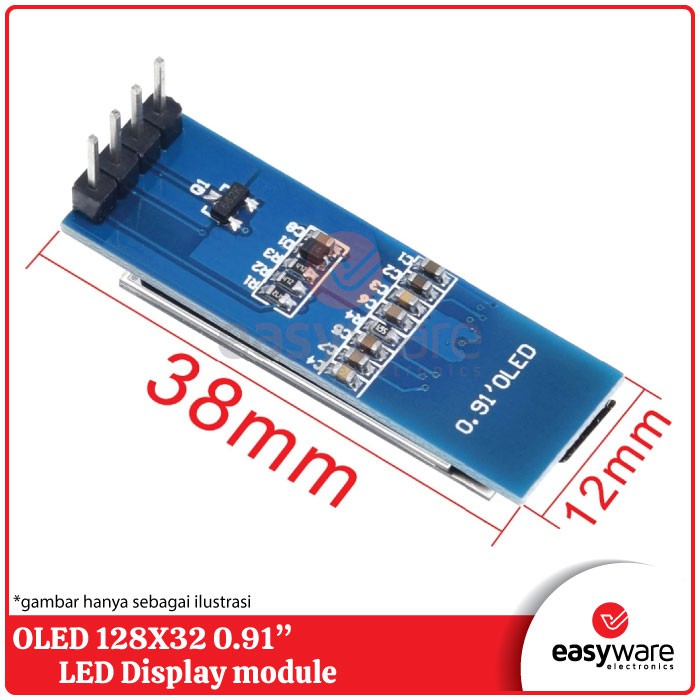

OLED 128X32 0.91 inch I2C LCD Display module

Detail OLED 128X32 0.91 inch I2C LCD Display module

Hi #RekanEasyWare ...
- White: MOD0141
- Blue: EP000609

*** Bismillah,
Silahkan pilih variannya terlebih dahulu sebelum order yah. Untuk sementara, display picture hanya sebagai ilustrasi. Silahkan chat kami jika ingin foto asli. Terima kasih ***

OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s. This 0.91 inch 128×32 Blue OLED Display Module offers 128×32 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C(also called as IIC) serial interface. The 0.91 inch 128×32 Blue OLED Display Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle.

Pin Description:
- GND: Power Ground
- VCC: Power + (DC 3.3 ~5v)
- SCL: Clock Line
- SDA: Data Line

SPESIFICATIONS :
- Driving IC: SSD1306
- Operating Voltage: 3.3-5V
- Resolution Ratio: 128 x 32
- Text Color: Blue / Yellow
- Background Color: Black

PACKAGE :
- 1x OLED 128X32 0.91" I2C Display module


*deskripsi dan gambar diperoleh dari berbagai sumber di internet

Gambar produk
