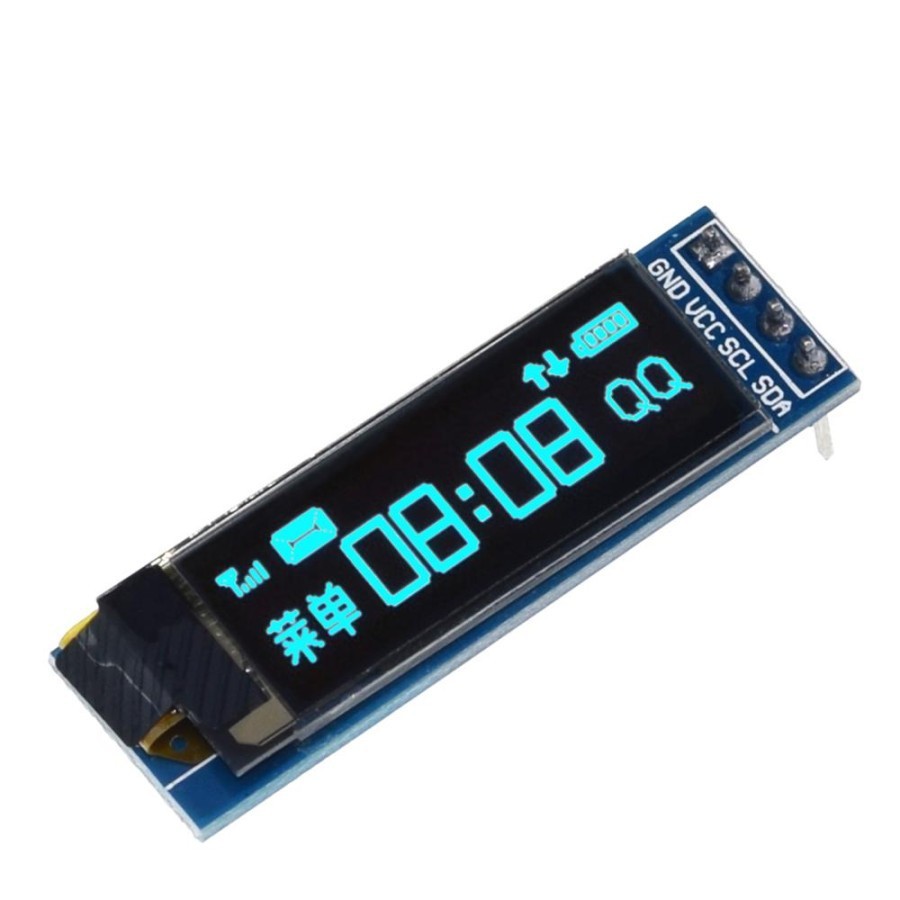

Detail OLED 0.91 inch 4 Pin I2C IIC White Blue Arduino LCD 128X32

Specifications:
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32

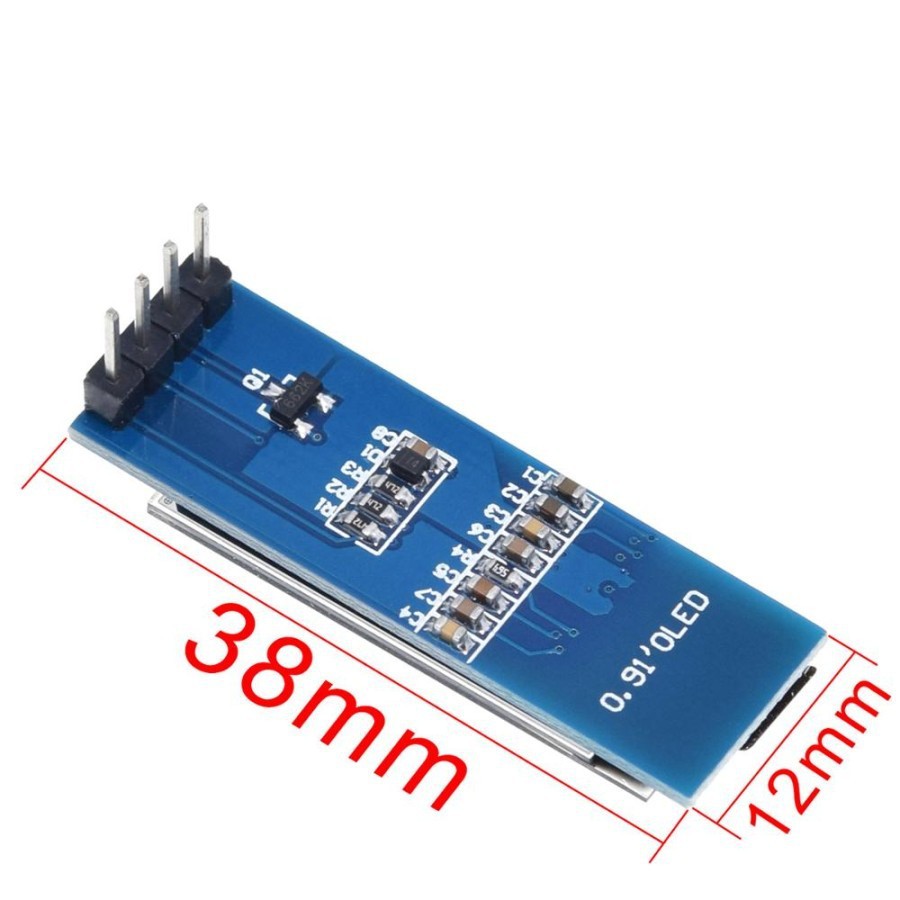

Size: 38 x 12 mm
Interface Type: IIC interface

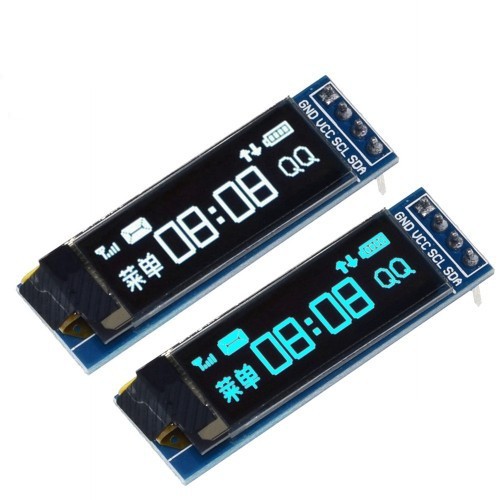

Display Color: White

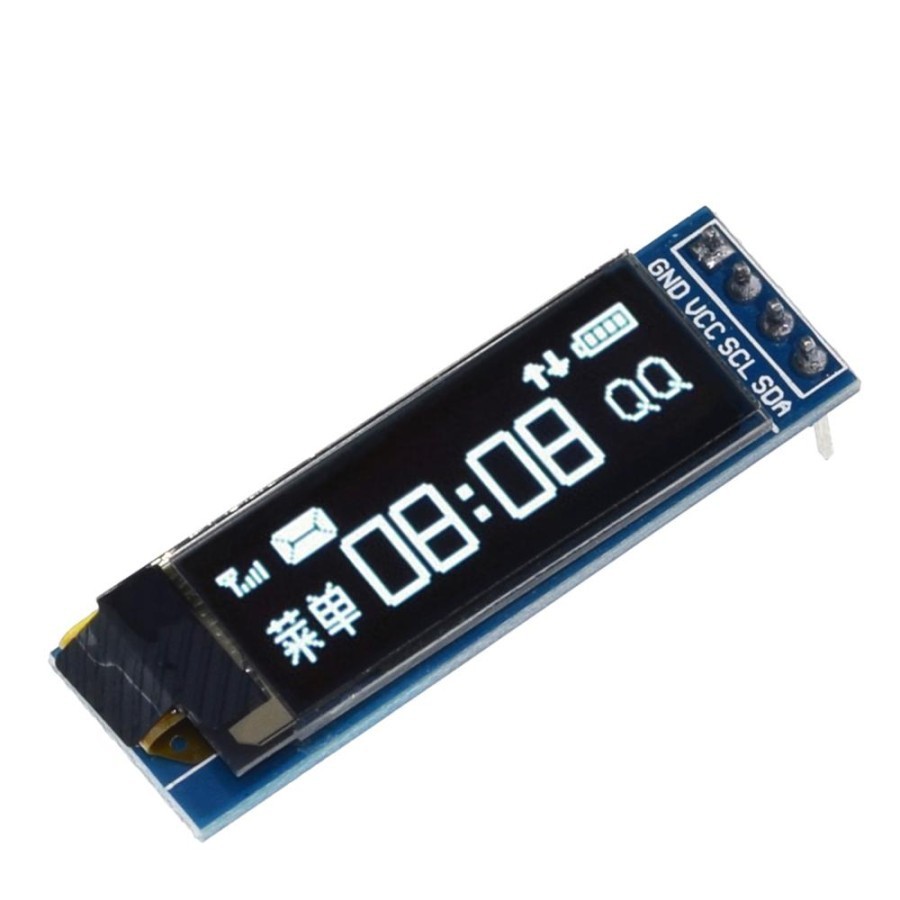

Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Operating temperature:-40 ~ 85 ℃
