NZXT H510 Flow White Mid Tower ATX Case Casing PC Free Fan

Detail NZXT H510 Flow White Mid Tower ATX Case Casing PC Free Fan

Details

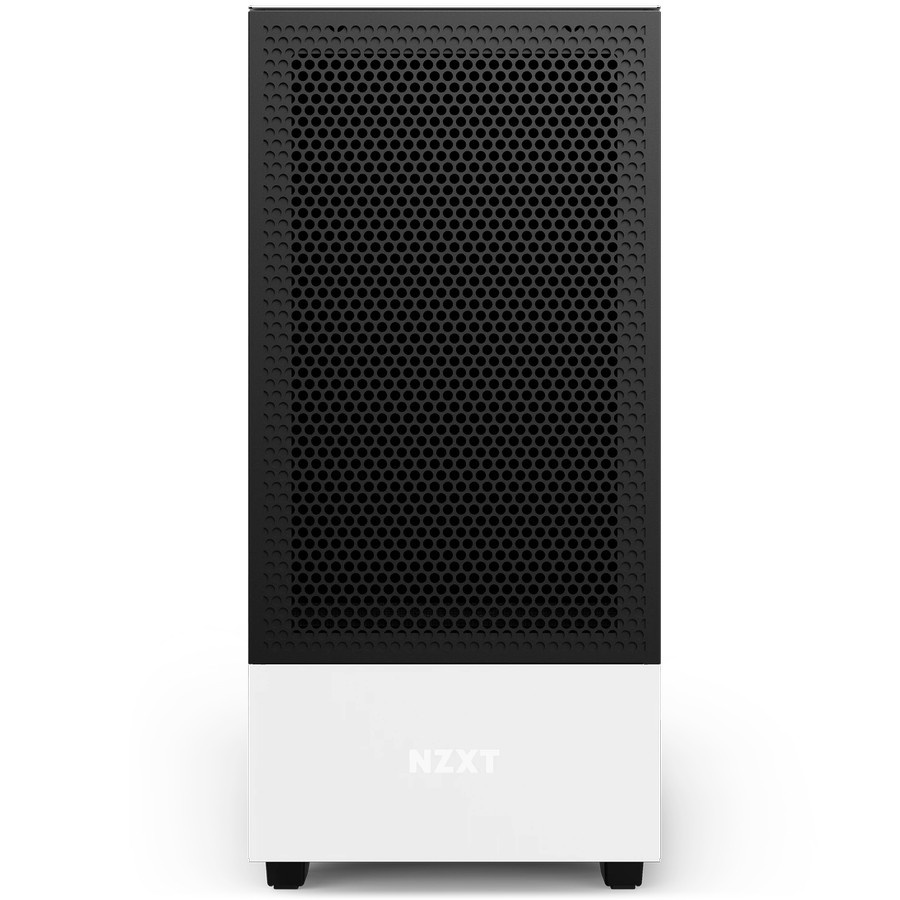

This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The H510 is easy to build in and offers flexibility for a variety of ATX parts.

An optimized perforated top panel delivers increased airflow to your system for improved temperatures

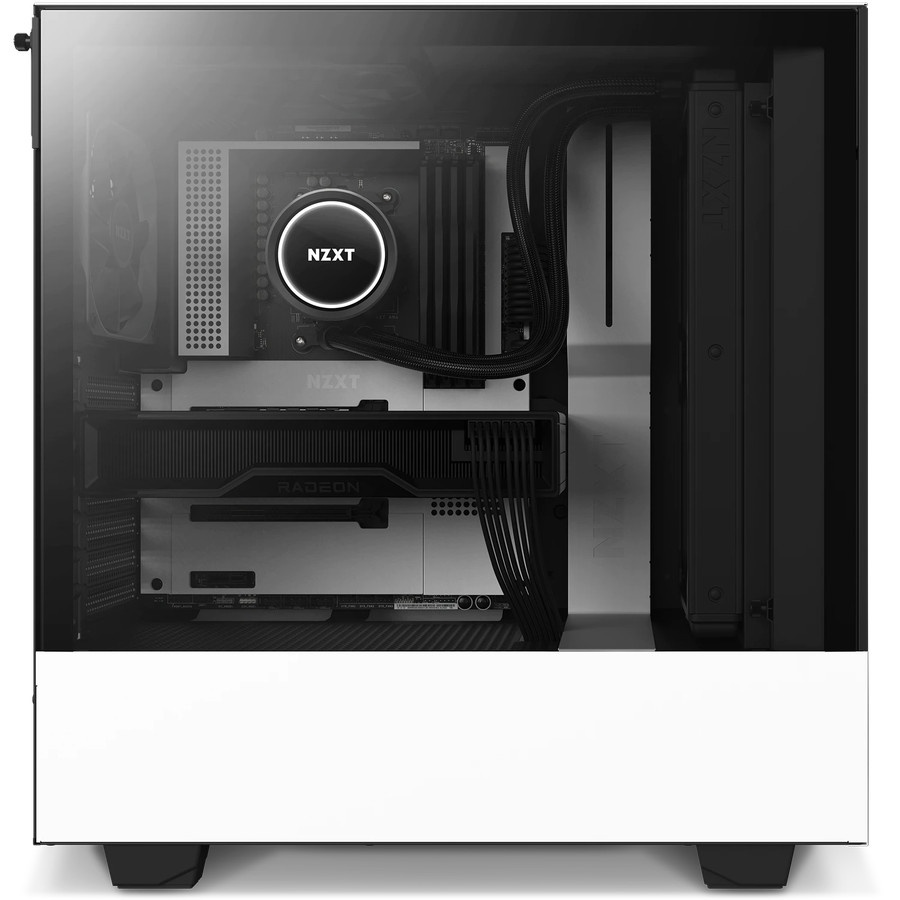

Iconic cable management bar and uninterrupted tempered-glass side panel
Cable routing kit with pre-installed channels and straps
Two Aer F120mm fans and removable filters on all air intakes
Removable bracket designed for radiators up to 280mm

Inside the Box
H510 Flow Case 1
Aer F 120mm (Case Version) 2
Headset Audio Jack Splitter 1
Breakout Cable 1
Installation Accessories 1
Manual 1

KEY SPECS
Motherboard Support:Mini-ITX, MicroATX, ATX
Enclosure Type:Compact Mid-Tower
Case Material:SGCC Steel, Tempered Glass

DIMENSIONS
Height:460 mm / 18.11 inches
Width:210 mm / 8.26 inches
Depth:428 mm / 16.85 inches
Weight:6.6 kg / 14.5 lb

COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:165 mm
Max GPU Clearance:360 mm
Front Fan & Radiator Clearance:60 mm
Cable Management:19 - 23 mm

FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:1
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1

EXPANSION SLOTS
Standard:7
Vertical:-

DRIVE BAYS
2.5":2 + 1
3.5":2 + 1

FAN SUPPORT
Front:2 x 120mm / 2 x 140mm
Top:1 x 120mm / 1 x 140mm
Rear:1 x 120mm
Filters:All air intake

INCLUDED FANS
Front:1 x Aer F 120mm (Case Version)
Top:-
Rear:1 x Aer F 120mm (Case Version)

RADIATOR SUPPORT
Front:280mm
Rear:120mm

FAN SPECS
Model:Aer F 120mm (Case Version)
Speed:1,200 ± 200RPM
Airflow:50.42 CFM
Noise:28 dBA
Bearing:Rifle Bearing
Fan Connector:3-pin

GENERAL
Warranty:2 years

WHITE SKU
Model Number:CA-H52FW-01
UPC:815671019585
EAN:5060301699254

BLACK SKU
Model Number:CA-H52FB-01
UPC:815671019578
EAN:5060301699247
