Detail NZXT H510 Elite With Type-C Port Casing PC CA-H510E-B1

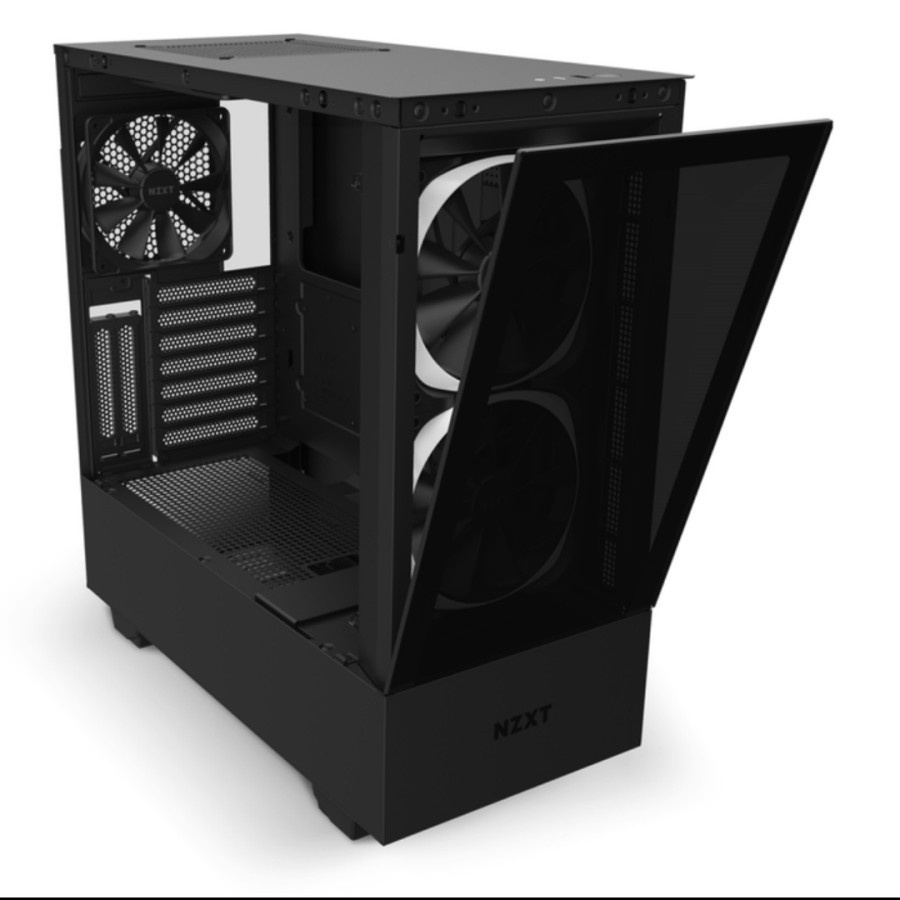

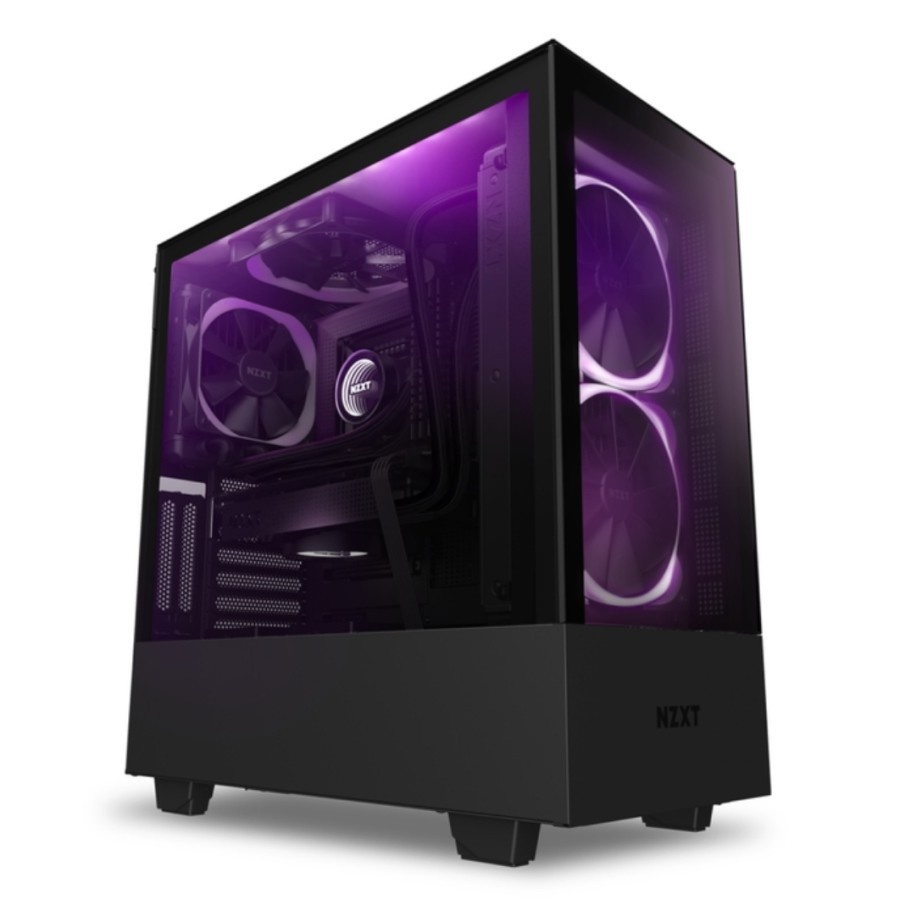

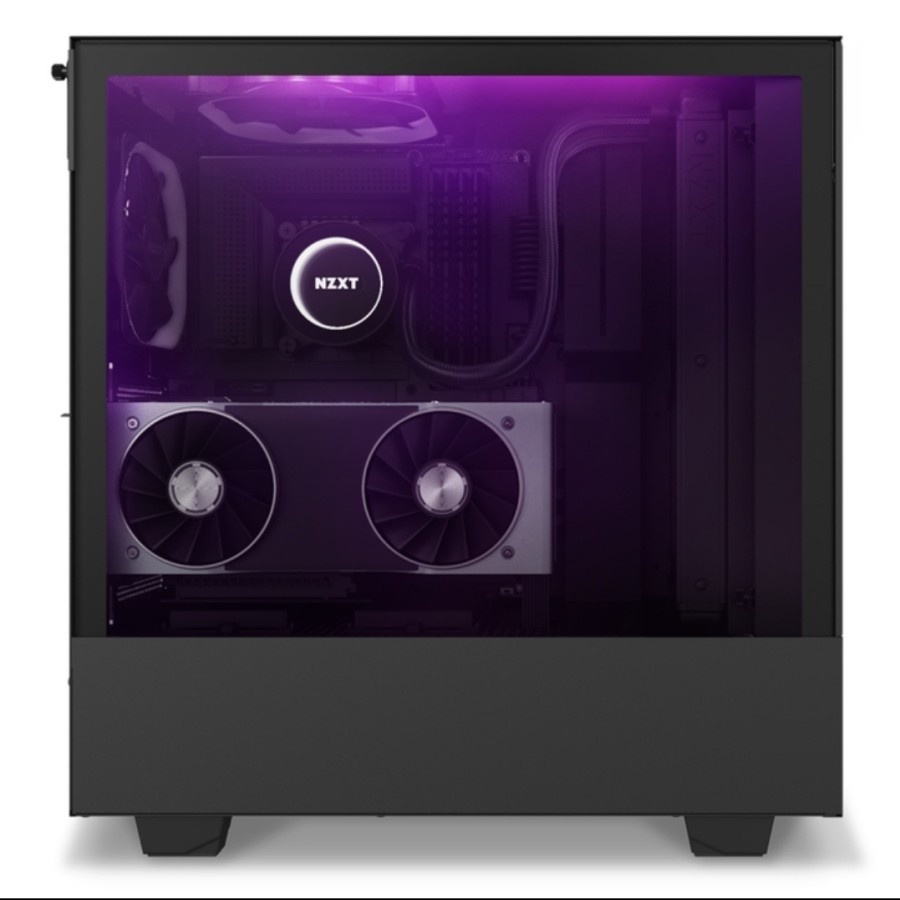

NZXT H510 ELITE RGB Matte Black Tempered Glass Mid Tower ATX Case
Dimensions W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) Material(s) SGCC Steel, Tempered Glass Weight 7.5 kg Clearance Cable Management: 19-23mm GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) Motherboard Support Mini-ITX, MicroATX, ATX Front I/O Ports 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header Filters All Air Intakes Smart Device V2 3x Fan channels with Max 10W per channel output* 2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans Built-in noise detection module *Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters. RGB LED Lighting 2x Integrated Aer RGB 2 140mm Fans 1x Integrated addressable LED Strip Vertical GPU Mount 2 Slots Drive Bays 2.5": 2+1 3.5": 2+1 Expansion Slots 7 Radiator Support Front: 2x 140 or 2x 120mm with Pull *Note: Need to remove RGB fans if you plan to mount the radiator to the front Rear: 1x 120mm Fan Support Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included) Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included) Rear: 1x 120mm (1x AER F120 Case Version Included) Fan Specs Aer RGB 2 (140mm) Speed: 500-1,500 RPM Airflow: 30.39 - 91.19 CFM Noise: 22 - 33 dBA
