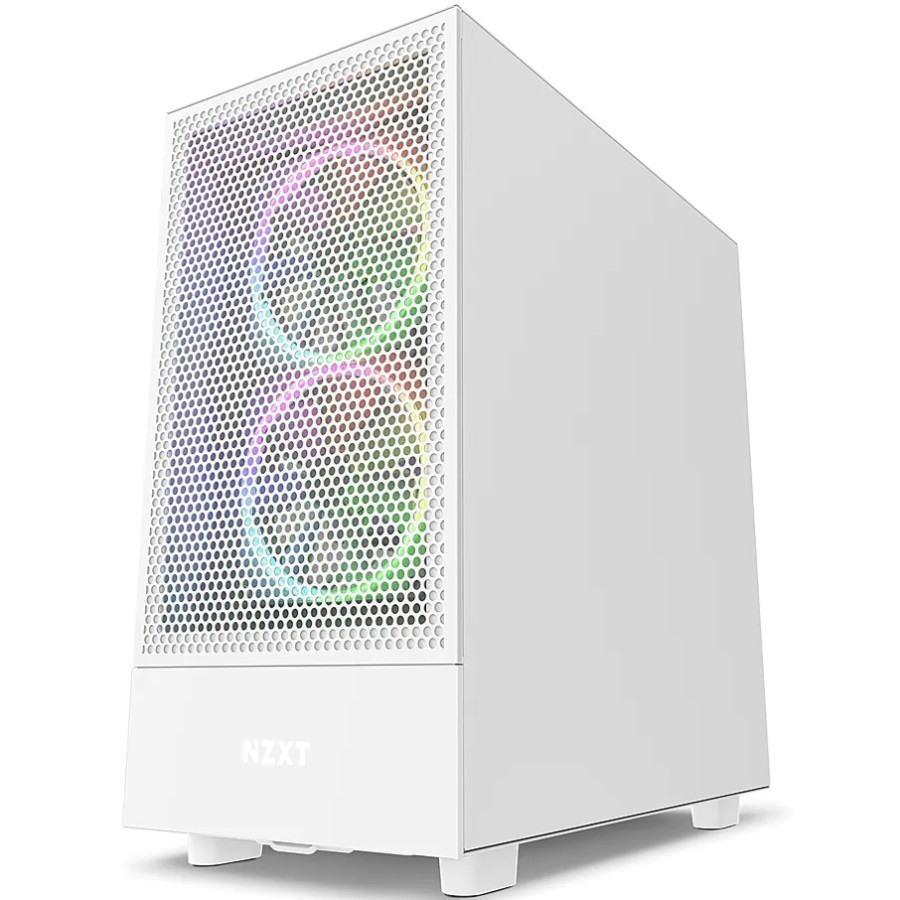

NZXT H5 Flow Matte White Mid Tower ATX Case Casing PC Free Fan

Detail NZXT H5 Flow Matte White Mid Tower ATX Case Casing PC Free Fan

Motherboard Support : ATX, Micro-ATX, mini-ITX

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

Dedicated fan on bottom inside panel is angled to cool GPU
Perforated front panel provides optimal ventilation
Intuitive cable management system with wide channels, hooks, & straps
Tool less access to front and side panels
Front panel supports up to 2 x 140mm fans or 280mm radiator
Top panel supports up to 2 x 120mm fans or 240mm radiator
Includes two pre-installed F120Q fans

Dimensions
With Feet : W: 227mm H: 464mm D: 446mm
Without Feet : W: 227mm H: 448mm D: 446mm
Material(s) : SGCC Steel, Tempered Glass
Weight : 7.01 kg
Motherboard Support : ATX, Micro-ATX, mini-ITX
I/O Ports : 1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-C
1 x Headset Audio Jack
Filters : All Air Intakes
Included Accessories : Installation screws
10 x Cable ties
Expansion Slots : 7

Drive Bays
2.5” : 1+1
3.5” : 1

Radiator Support
Front Up to 280mm
Top Up to 240mm
Rear Up to 120mm

Fan Support
Front : 2 x 120mm / 2 x 140mm
Top : 2 x 120mm
Rear : 1 x 120mm
(1 x F Series Quiet 120mm (Case Version) included)
Bottom : 1 x 120mm
(1 x F Series Quiet 120mm (Case Version) included)

Fan Specs
Speed : 1200 ± 240RPM
Airflow : 62.18 CFM
Static Pressure :1.05 mm - H2O
Noise : 25.1 dBA
Fan Connector : 3-pin
Clearance
Cable Management : Max 23mm
GPU Clearance : Max 330mm
CPU Cooler : Max 165mm
Front Radiator Clearance : 45mm
