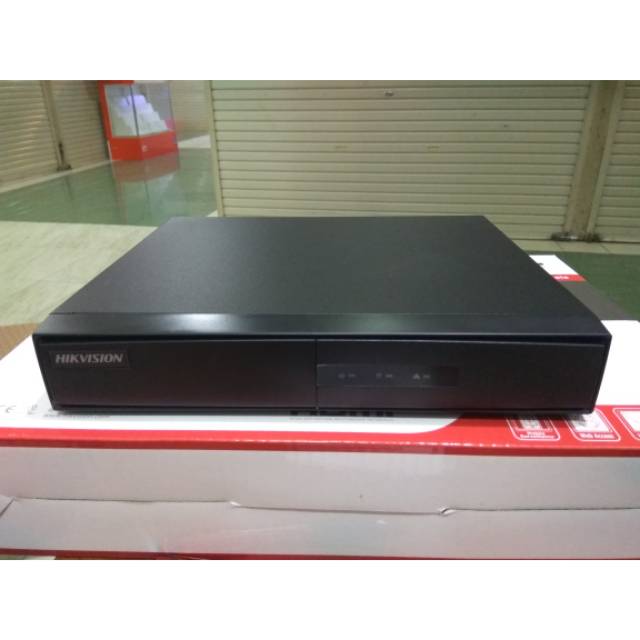

NVR HIKVISION POE 4CH DS-7104NI-Q1/4P/M Support POE ONVIF

Detail NVR HIKVISION POE 4CH DS-7104NI-Q1/4P/M Support POE ONVIF

NVR HIKVISION DS-7104NI-Q1/4P/M POE 4 CH Support POE ONVIF 4CH
4 channels
Video recording with resolution up to 4Mp
Video output with resolution up to 4Mp
Synchronous playback of 2 channels @ 2Mp
1 SATA HDD up to 6TB
1/1 audio input / outputs
Network interface 1 RJ-45 10M / 100M Ethernet
EXTEND PoE up to 250 m 10 Mbit Cat 5e

Video / audio input
Video compression format H.265 + / H.265 / H.264 + / H.264
IP cameras 4 channels
Two-way audio input 1 RCA channel (2.0 Vp-p, 1 KΩ)
Inbound bandwidth 40Mb / s
Outgoing bandwidth 60Mb / s
Video / audio output
Video output HDMI / VGA
Output resolution up to 1080p
Audio output 1 channel, RCA (Linear, 1 kΩ)
Record
Number of threads 2
Main thread 4Mp / 3Mp / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Additional flow In accordance with podkl. video camera
Stream type Video, video and audio
Synchronous playback 1 channel @ 4 MP (25 fps) / 2 channels @ 1080p (25 fps)
Network
Protocols TCP / IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP ™
HDD
SATA 1 SATA
Volume up to 6 TB each
Interfaces
Network interface 1 RJ-45 10M / 100M Ethernet
Independent PoE Interfaces 4 x 100 Mbit / s PoE, EXTEND PoE up to 250 m 10 Mbit Cat 5e
USB interface 2 USB 2.0
Are common
Nutrition DC12V
Power consumption (without HDD) Up to 50W
Working conditions -10 ° C ... + 55 ° C, humidity 10% ~ 90%
Dimensions 260 × 225 × 48 mm

GARANSI RESMI HIKVISION 2 TAHUN
