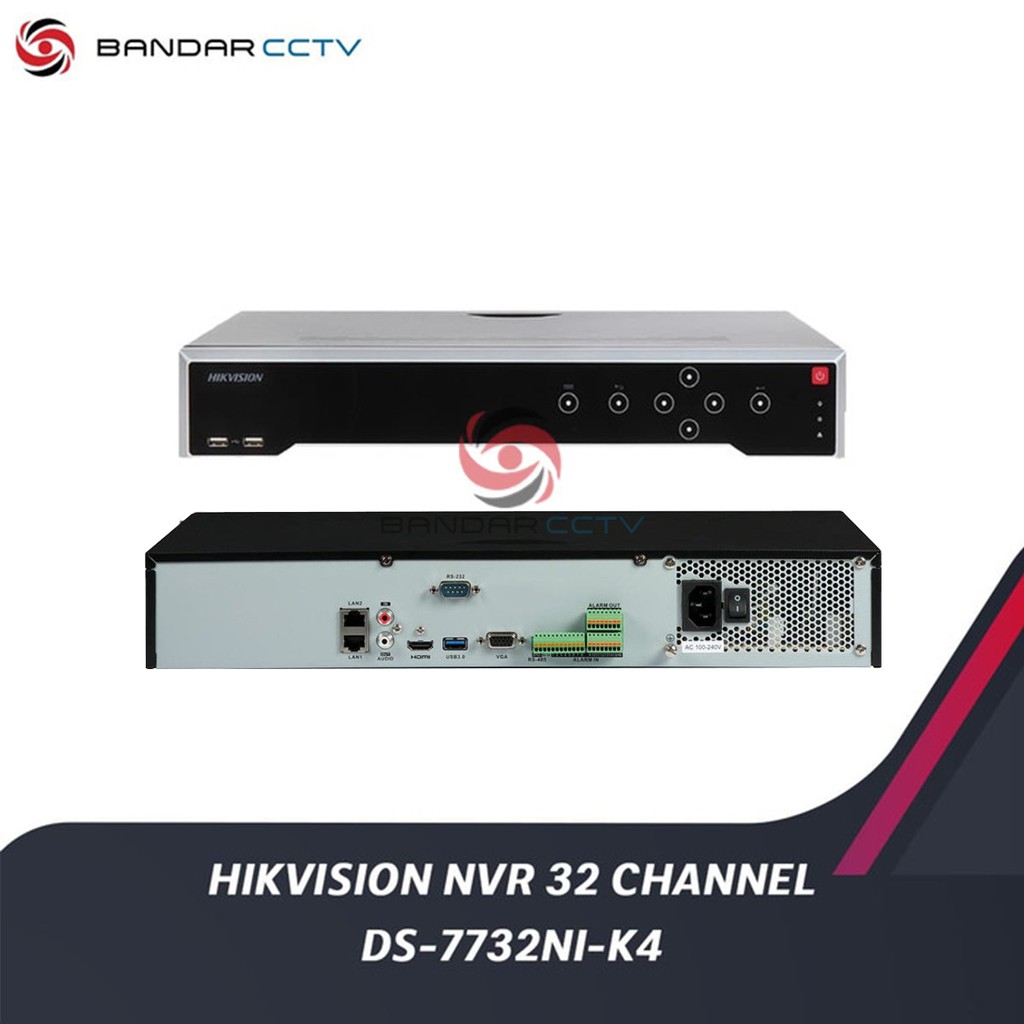

NVR HIKVISION 32 CHANNEL DS-7732NI-K4

Detail NVR HIKVISION 32 CHANNEL DS-7732NI-K4

NVR HIKVISION 32 CHANNEL DS-7732NI-K4
Video And Audio
IP Video Input
32-ch
Incoming/Outgoing Bandwidth
256 Mbps 160 Mbps
HDMI Output
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Input
1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format
H.265/H.265+/H.264+/H.264/MPEG4
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF,/2CIF/CIF/QCIF,
Synchronous Playback
16-ch
Chassis
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Network
Network Protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Hard Disk
SATA
4 SATA interfaces
Capacity
Up to 6TB capacity for each HDD
External Interface
Serial Port
1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/4
General
Power
≤ 80 W
Power Supply
100 to 240 VAC
Consumption (Without HDD)
≤ 20 W
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimensions (W × D × H)
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Gambar produk
