NUX B7PSM B-7PSM 5.8 GHz Wireless In Ear Monitoring System

Detail NUX B7PSM B-7PSM 5.8 GHz Wireless In Ear Monitoring System

Specifications
Output Volume Adjustment
-64dB~0dB (0.5dB step)
Operating Frequency Band
5.8 GHz
Operation Length
< 100 feet (30m) outdoor unobstructed, < 33 feet (10m) outdoor with obstructions
Sampling Rate
24bit / 40 kHz
Frequency Response
20~19kHz
Latency
< 5.5ms
Dynamic Range
92 dB
THD+ Noise
<0.6%@1kHz
Built-in Battery Capacity (TX & RX)
450mAh / 3.7V
Battery Running Time
> 4 hours
Battery Charging Time
around 1.5 hours
Power Consumption
TX <90mA，RX < 45mA
TX Impedance
3.5kΩ
Maximum Input Level
7.6Vpp (8.6dBV or 2.7Vrms)
RX Suggestion Phone Impedance
16~32Ω
Maximum Output Power
57mWrms (RLOAD =16Ω, 1 kHz).

A Loud Stereo Phone Preamp.
Plug in the TX to a live or personal mixer and turn on the TX (LED indicator will show GREEN.) Then connect your in-ear buds with the RX, turn on the RX to pair with the TX. The LED indicator will be solid GREEN. Now it’s ready to go.

Caution: Do not put the in-ear buds in your ears before you start to adjust the volume, it may hurt your ears if the volume is too loud.

You can adjust the RX volume in 0.5db increments with the + and – buttons. The maximum volume is 0dB, and the minimum is -64dB. Holding down the + or – button can increase or decrease the volume quickly. The B-7PSM offers STEREO audio transmission, so it’s perfect to work with professional personal mixers to pan the tracks as you want on stage or in the studio during rehearsals and live performances. The B-7PSM features premium sound quality with a 92dBA dynamic range and 20~19K Hz frequency response.

Note: Short press the power button of the RX to return to the default volume setting. It may be too loud if the in-ear buds are very sensitive. Please turn down the mixer’s volume and increase it carefully.

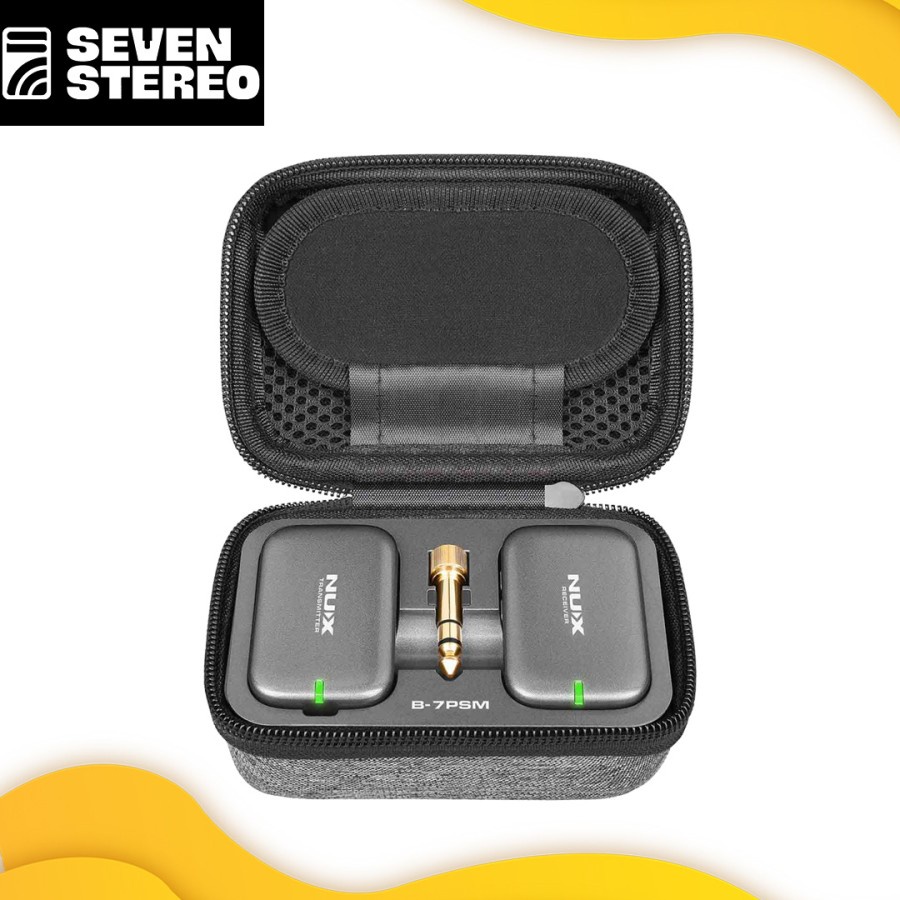

Note: We recommend you use headphones or in-ear buds with a 16~32 Ω impedance for the best experience. You can charge the RX and TX units with the rechargeable storage case, or by using the USB-C cable to charge. Both units can work while charging just in case.
