Detail NRF51822 Low Power Bluetooth 4.0 BLE ARM 2.4 GHz System
Deskripsi NRF51822 Low Power Bluetooth 4.0 BLE ARM 2.4 GHz System
Spesifikasi:
- Supports multiple 2.4GHz radio
- PCB Antenna + Supported external uF.L antenna
- 2.0 mm 2x09 Connectors
- 32-bit ARM Cortex M0 processor
- 256KB flash / 16kB RAM
- Wide supply voltage (1.8 V to 3.6 V)
- On-chip DC/DC buck converter
- Flexible and configurable 31 pin GPIO
- Application development methods and protocol stack completely separately
- Programmable output power from + 4dBm to -20dBm
- Simple ON/OFF Global Power Management
- Full-featured digital interface: SPI/2-wire/UART
- 10-bit ADC
- 128-bit AES ECB/CCM/AAR co-processor
- Ultra low-power 32kHz crystal and RC oscillators
- Radio Peak currents below 10 mA @ 3V

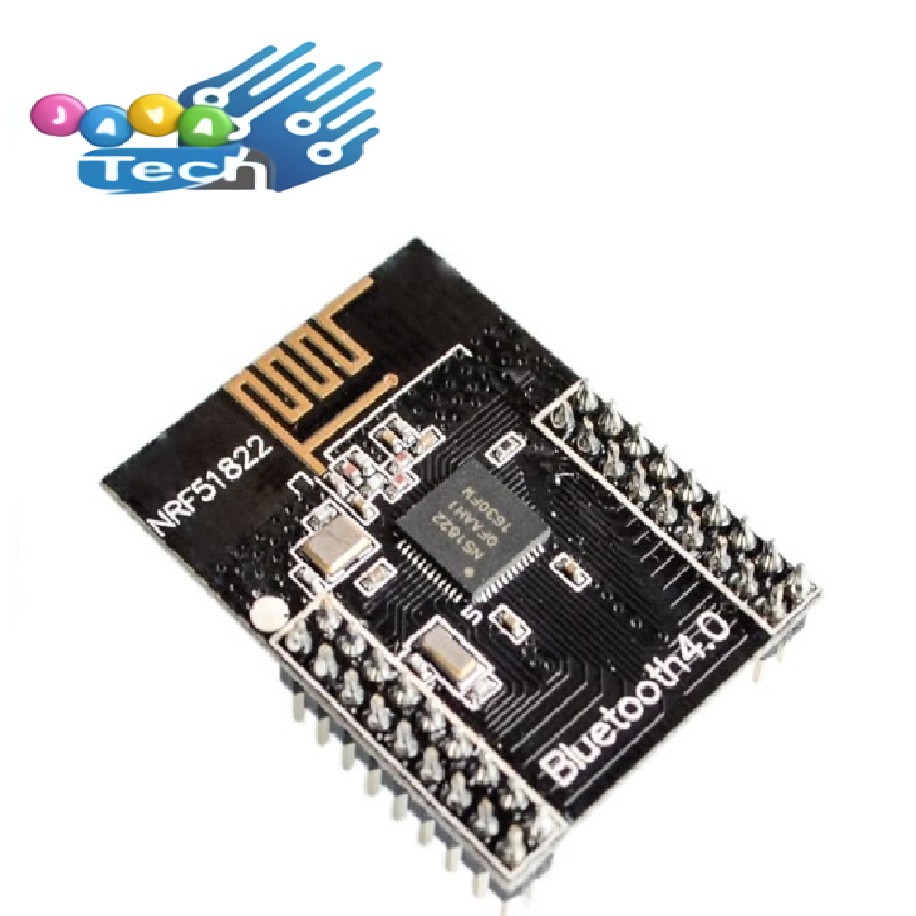

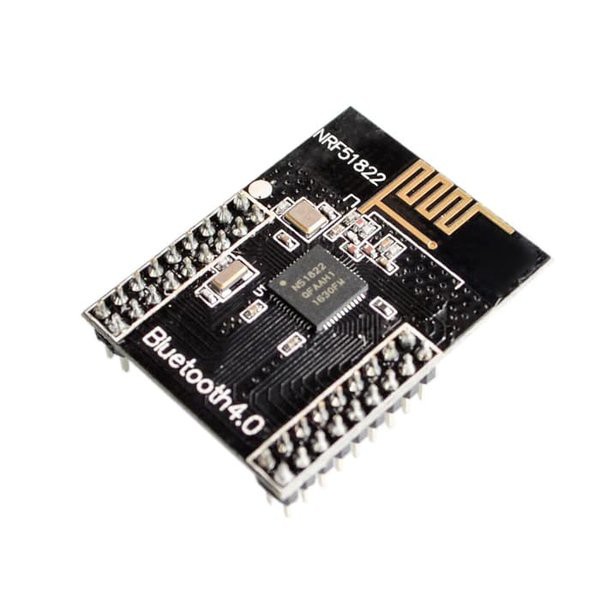

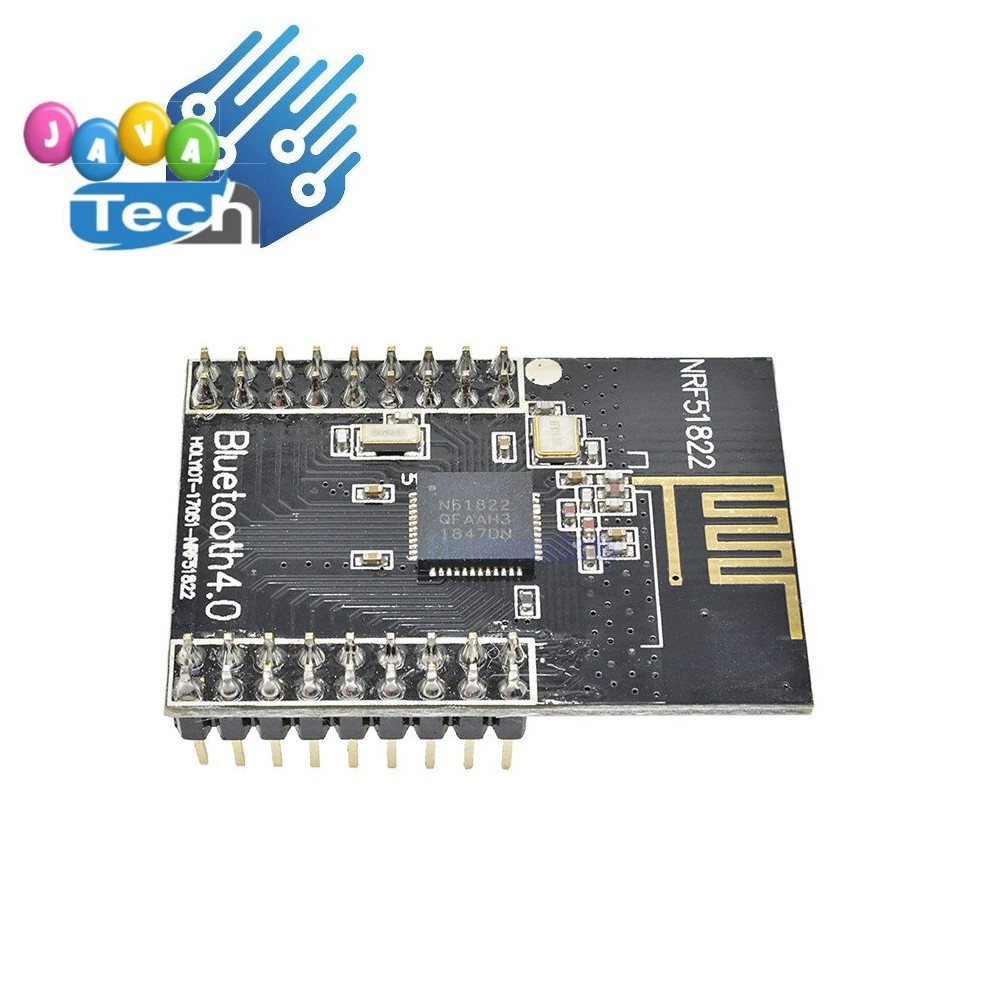

Gambar produk
