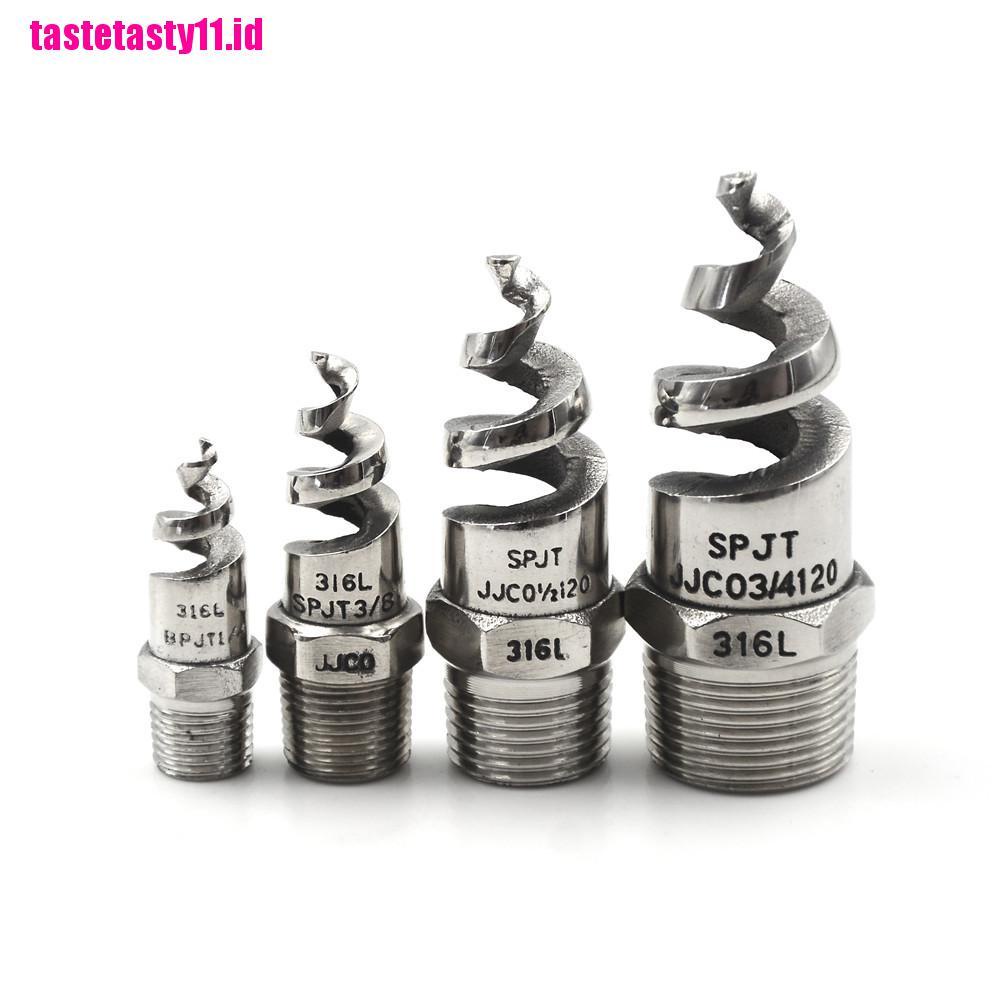

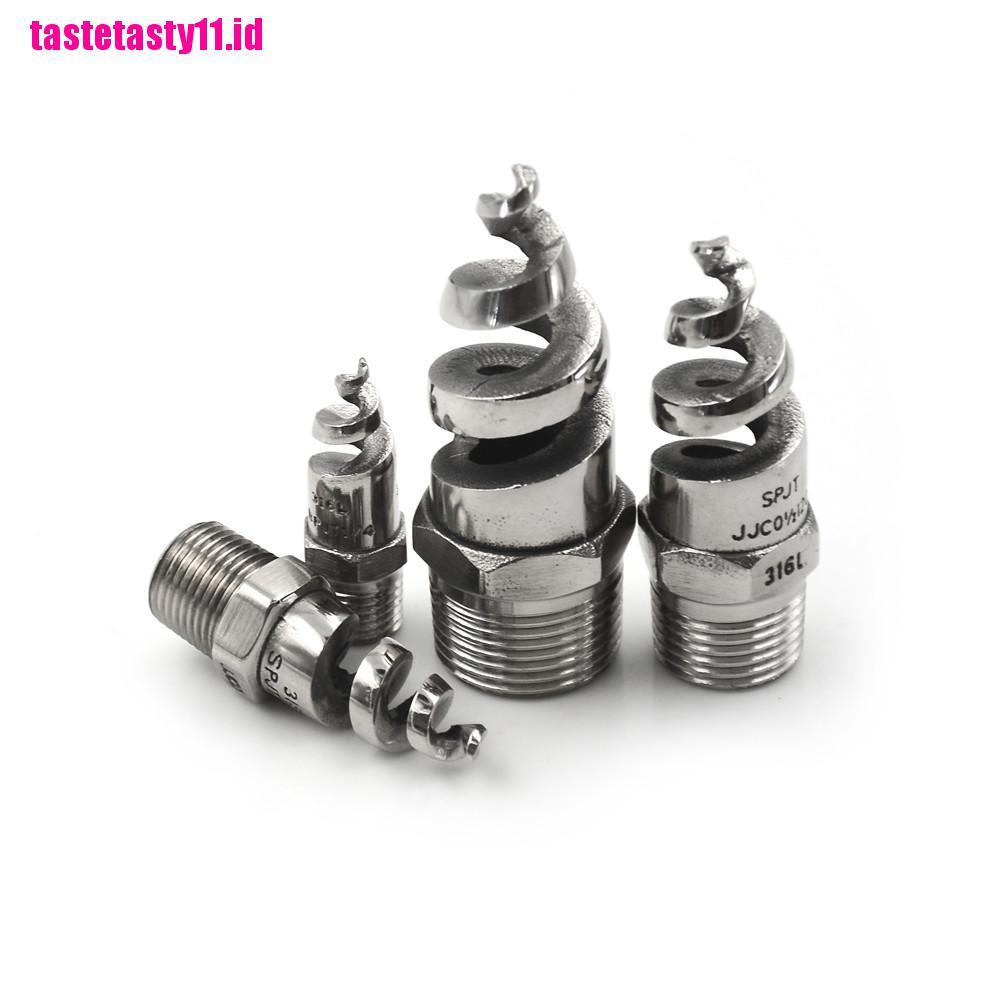

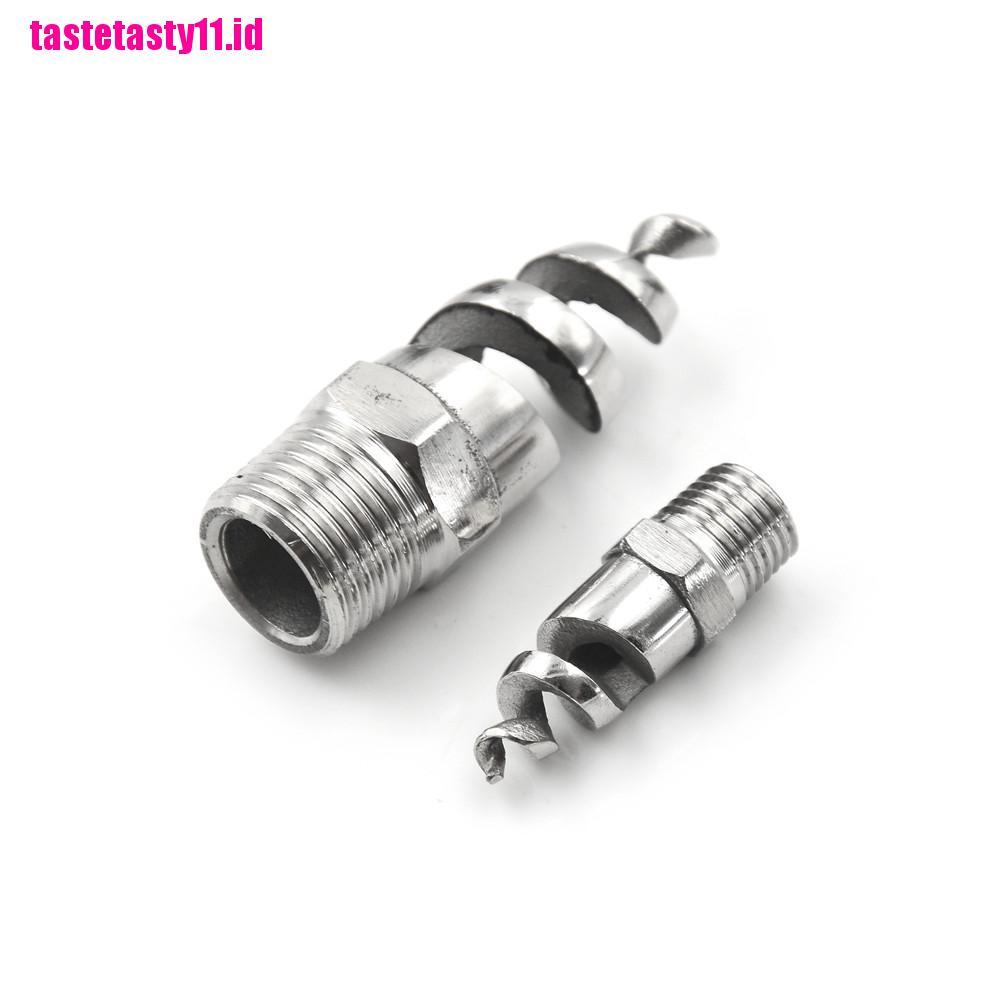

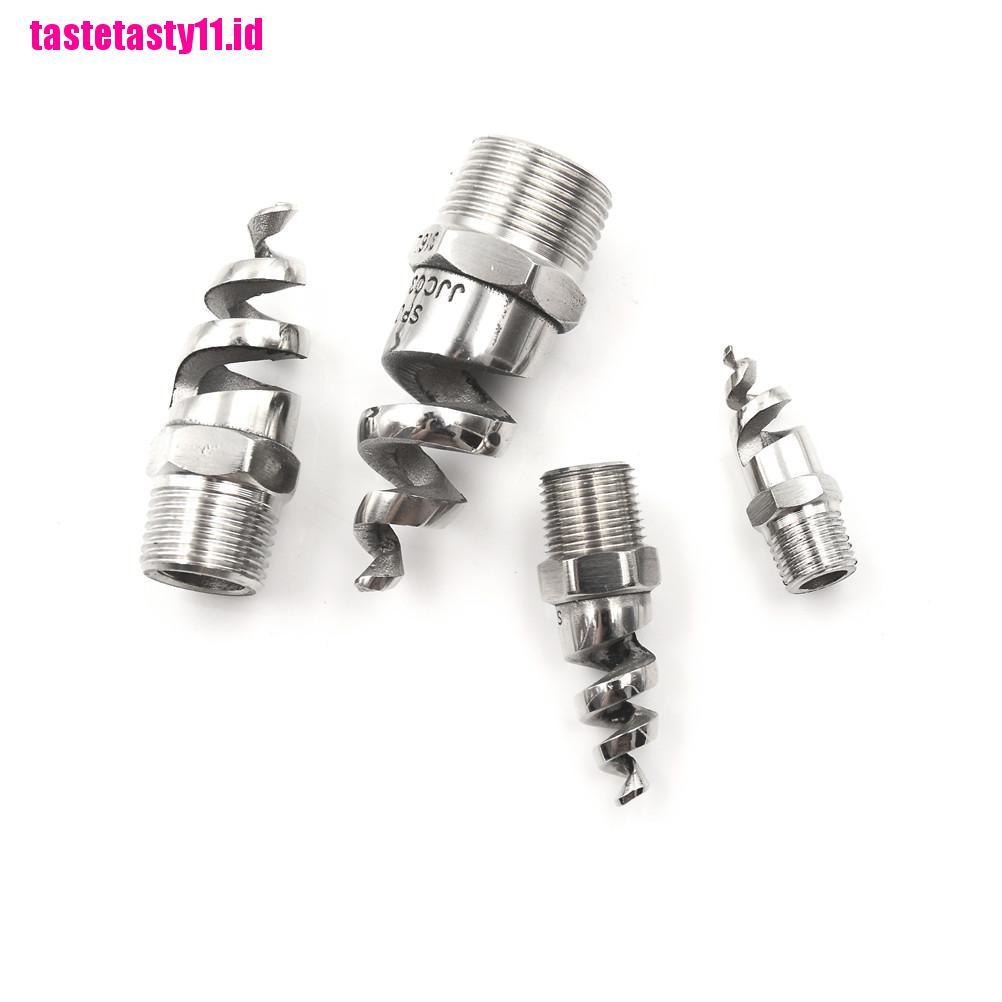

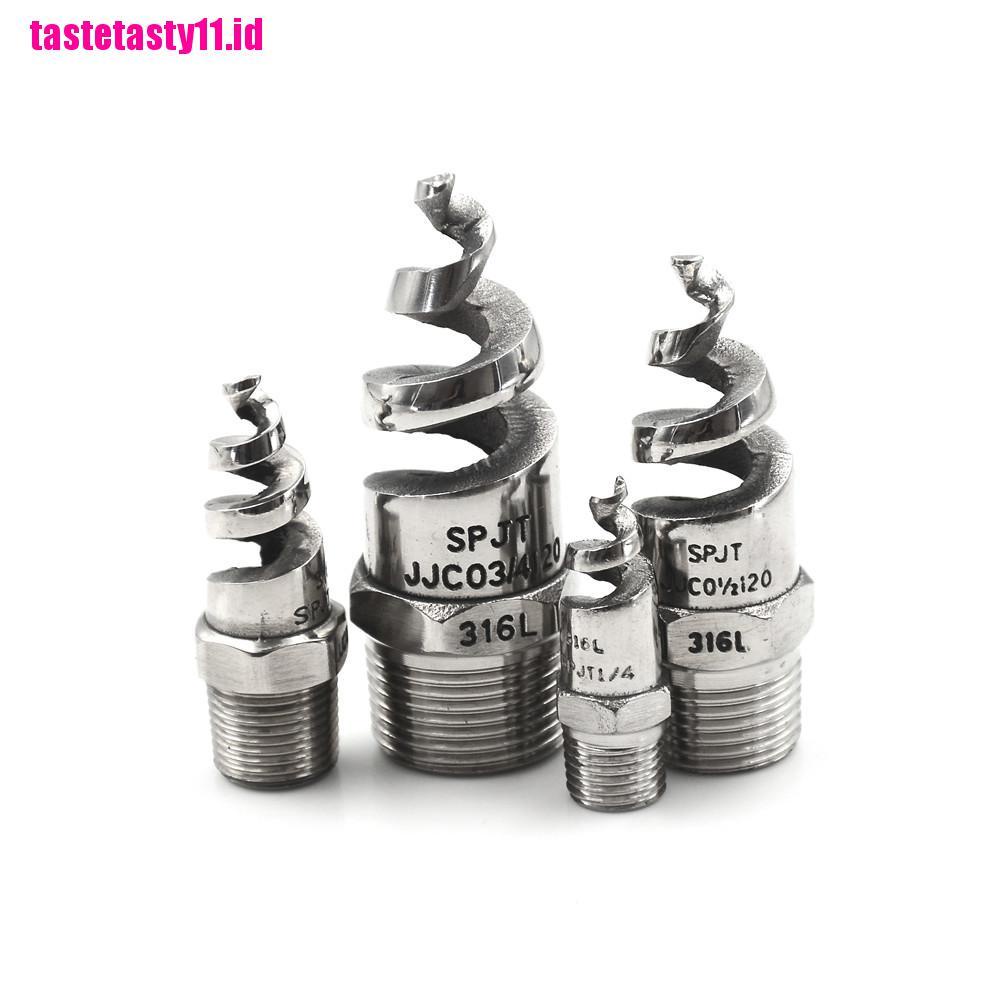

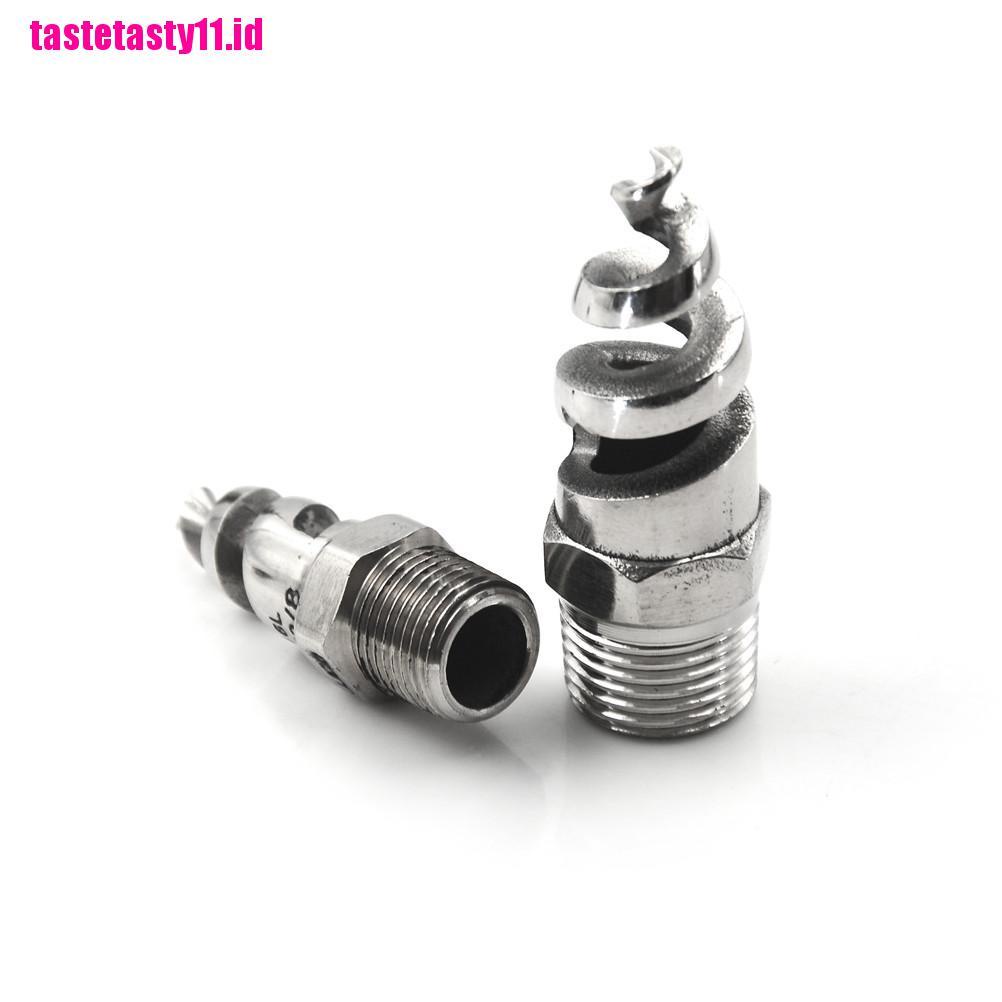

Nozzle Semprot Atomisasi Bentuk Spiral Bahan Stainless Steel Ukuran 1 / 4 1 / 2 Inch

Detail Nozzle Semprot Atomisasi Bentuk Spiral Bahan Stainless Steel Ukuran 1 / 4 1 / 2 Inch

Description:
Stainless Steel Spiral Nozzle is a kind of solid cone-shape or the hollow cone-shape atomization nozzle,
The jet angle scope can be 60 degrees - 170 degrees, generally 120 degrees.
Widely applies in the haze desulphurization, dust removal, exhaust gas processing, wastewater disposal, the fireproofing, fire fighting, spraying cleaning and other fields.
These compact nozzles have smooth flow paths, which can minimize the liquid blocking, so that the liquid in the pipeline of a given size reaches the maximum flow.
Stainless Steel Spiral Nozzle can be installed or updated in the majority of the pipeline system.
There are NPT or BSPT (male) threads nozzles available, Stainless Steel Spiral Nozzle generally for inch male thread specification, it can connect with threaded adapters to be female thread.
Specifications:
Material:316 Stainless steel;

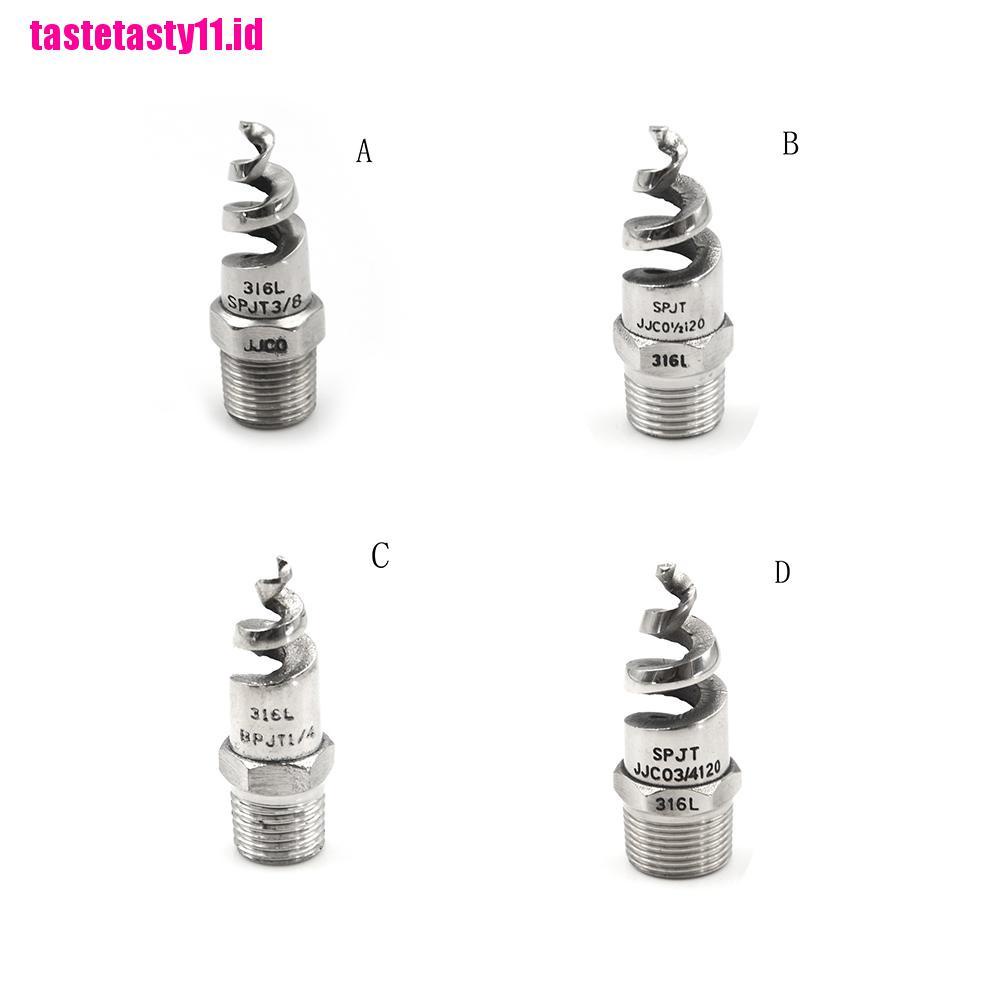

Connection size: C: 1/4"、A:3/8"、B: 1/2"、D:3/4"、1" External Thread;
Working pressure: 50-150Kpa;
Package Includes:
1x Stainless Steel Spiral Nozzle
