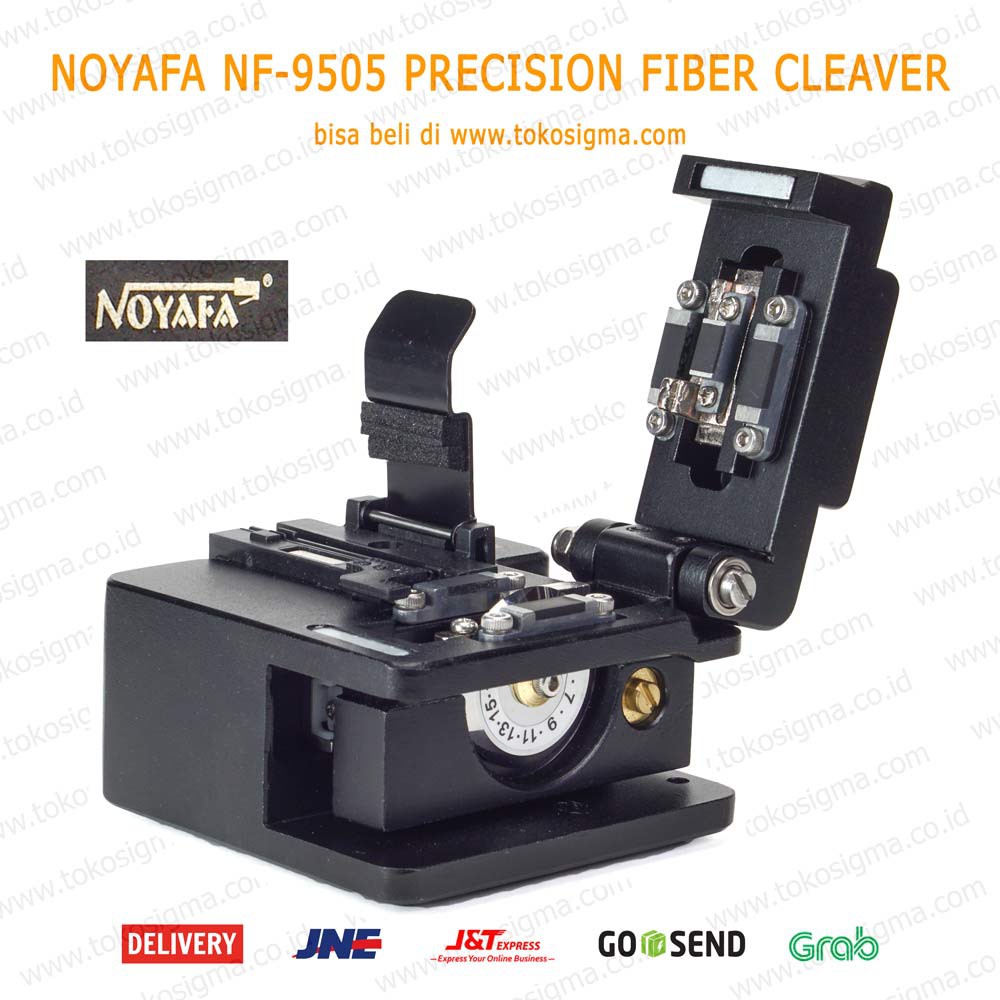

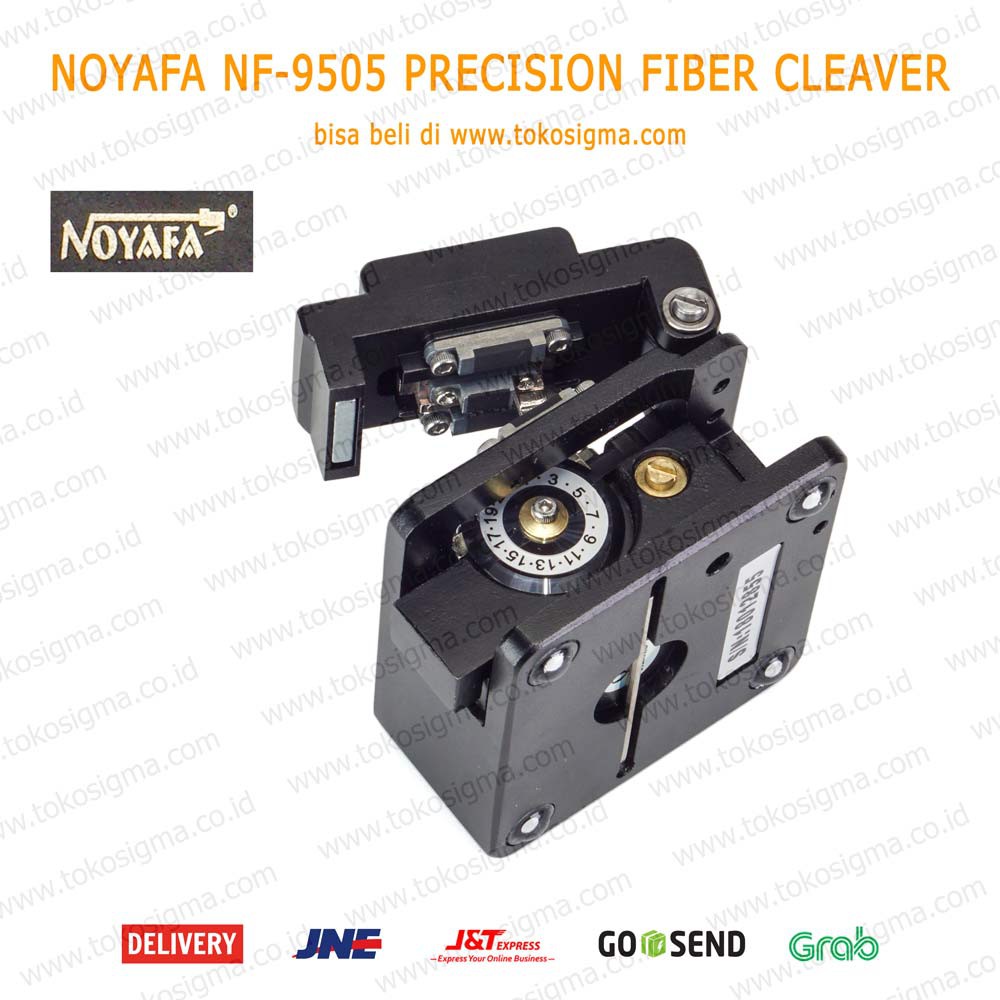

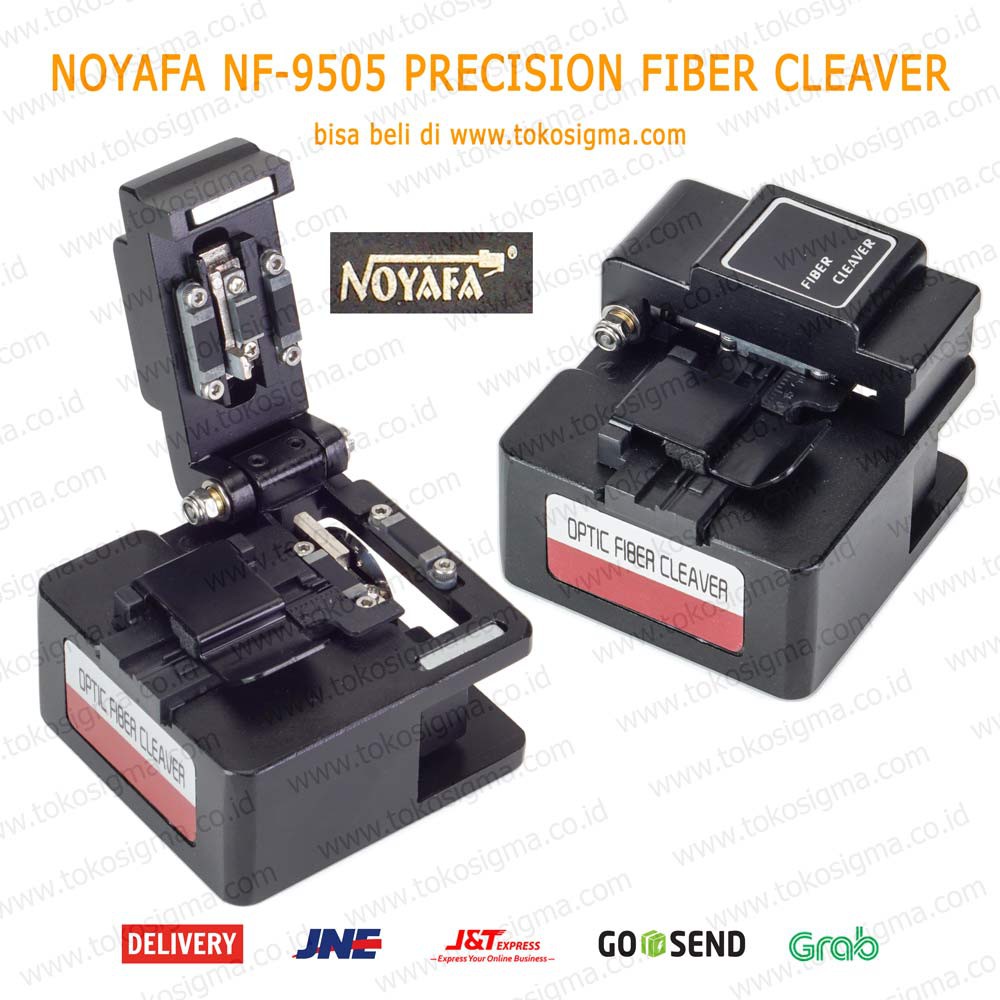

NOYAFA NF-9505 PRECISION FIBER CLEAVER - CUTTER PEMOTONG KABEL FIBER OPTIC

Detail NOYAFA NF-9505 PRECISION FIBER CLEAVER - CUTTER PEMOTONG KABEL FIBER OPTIC

Jual : NOYAFA NF-9505 PRECISION FIBER CLEAVER - CUTTER PEMOTONG FIBER OPTIC

NOYAFA NF-9505 optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers.
It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

High energy uses fine-grained tungsten steel as raw material, which has high hardness, wear resistance and toughness.

Automatic return. After the cover is closed, push it in and cut off the fiber, and the upper cover will open the slide rail and return automatically.

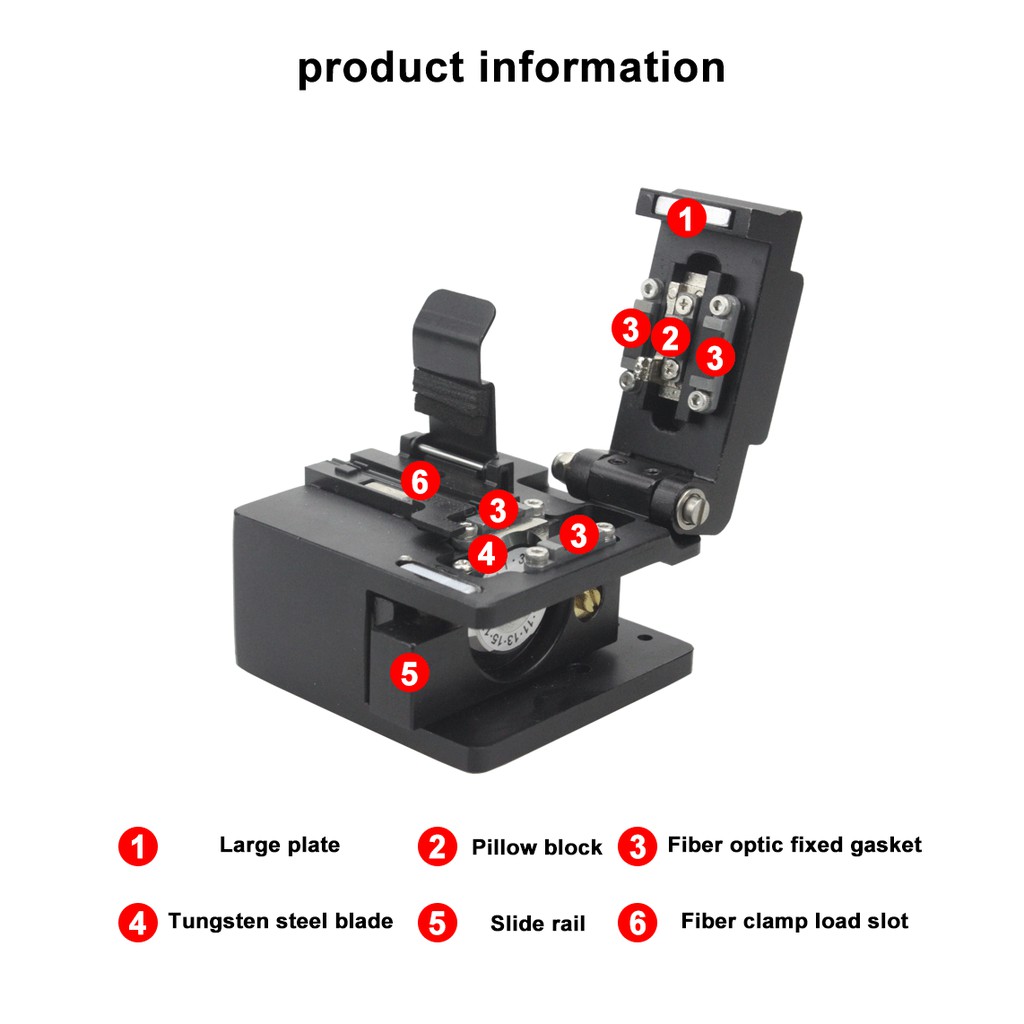

New three-in-one fixture
The newly designed leather, pigtail, and bare fiber three-in-one, all three slots are effective, the three-slot truly full-tooth metal cap assembly, and the small cover automatically positions without falling.


Features :

Cold connection tool, single-mode or multimode use.
High precision cleaves, 250um coated or 900um buffer fiber.
Contained 12 position tungsten steel blade, life time up to 40000 cleaves.
Large & small adjustable knife
Easy to operate.
Compact body & light weight.
Made in Taiwan
Split hammer design Integrated design to improve accuracy
Stable base The bottom is convenient for tool storage

Spec :

Brand : Noyafa
Model Number: NF-9505
Bare fiber diameter : 0.25mm~0.9mm
Out coat diameter : 1.25mm
Cutting angle : 0.5°
Blade Life : 40.000 times
Fiber Core : Single
Material : stainless steel

Cleaving Length :
250um: 9~16mm,
900um: 10~16mm

Size : 59 × 59 × 49 (mm)
Weight: 300 g

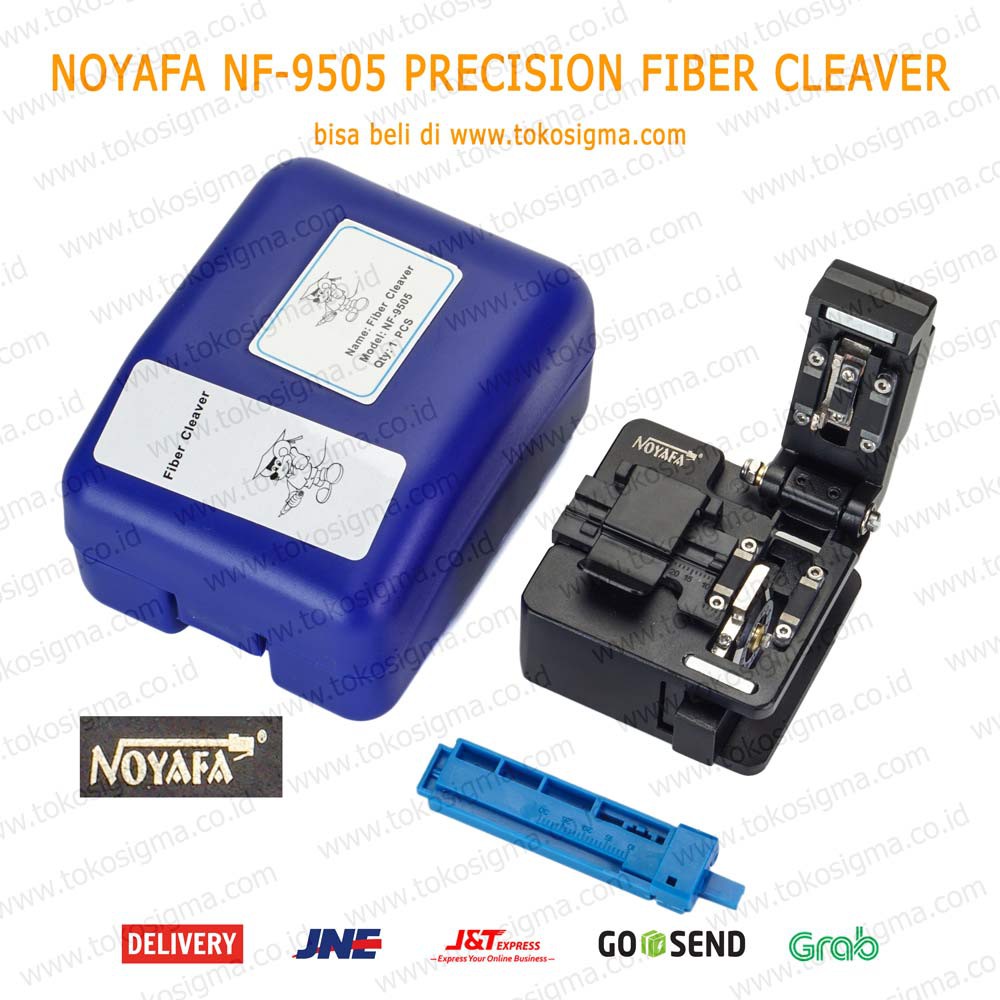

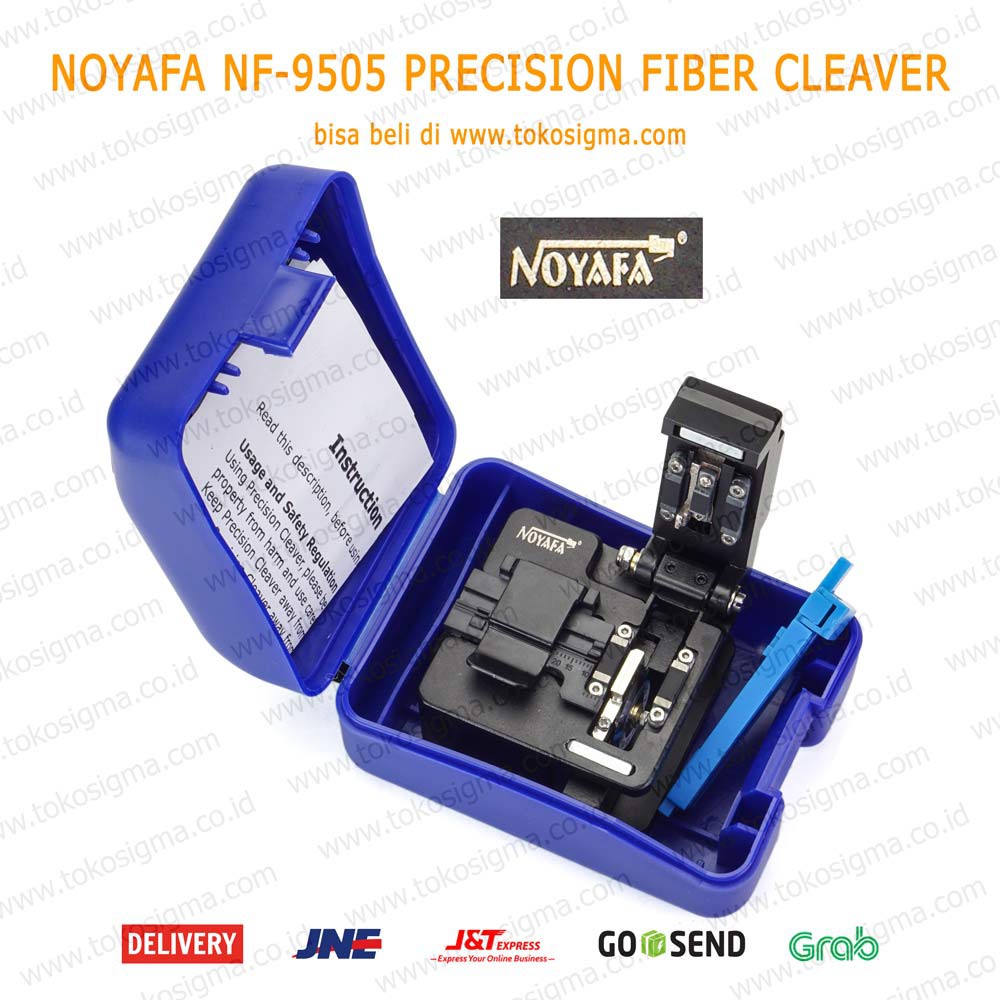

isi paket :

1 x Fiber Optic Cleaver NF-9505
1 x Plastic Box
1 x Instructions
1 x Ruler guide
1 x Kunci L
