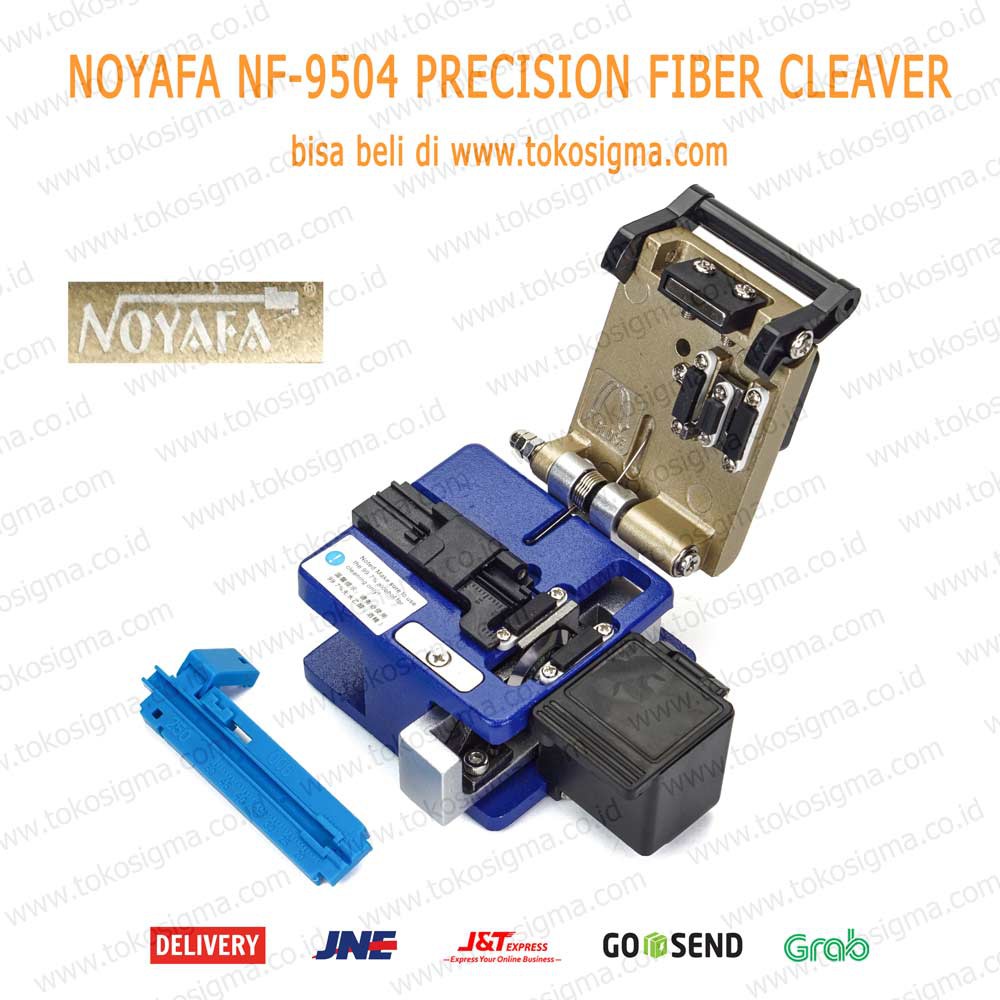

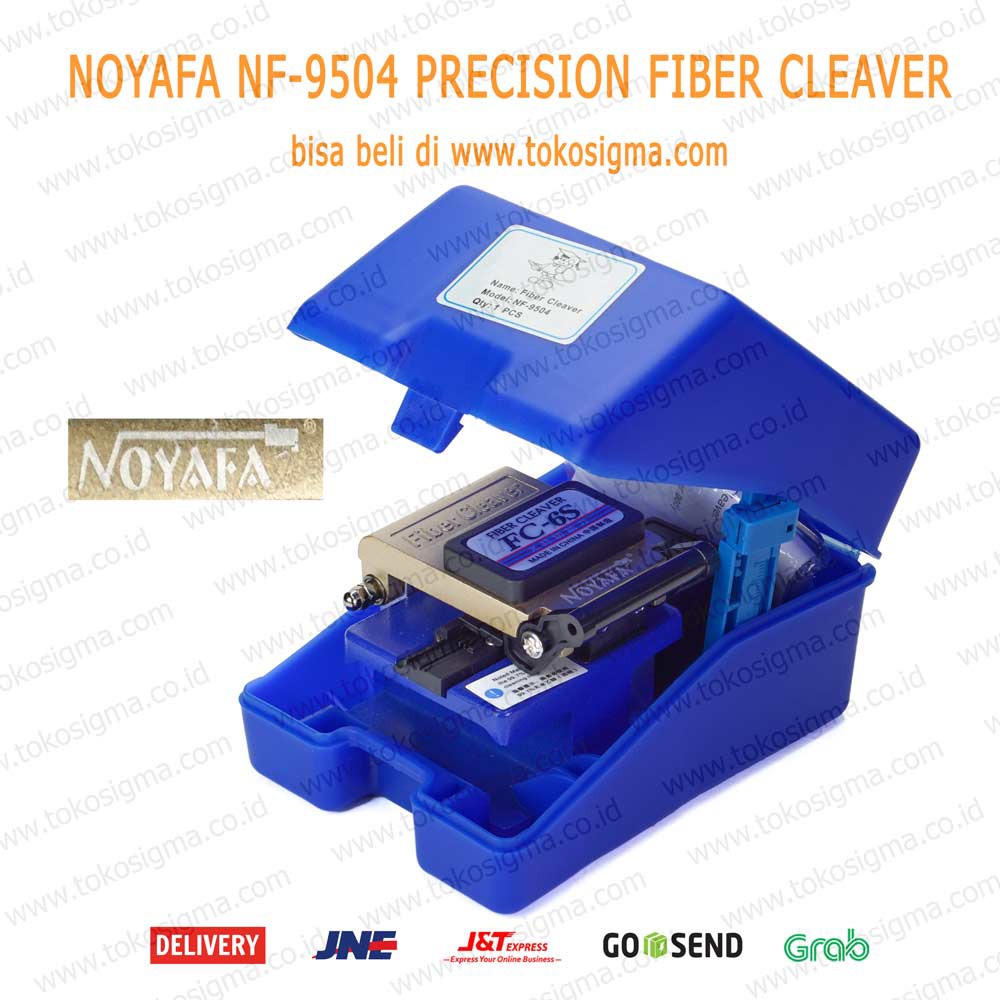

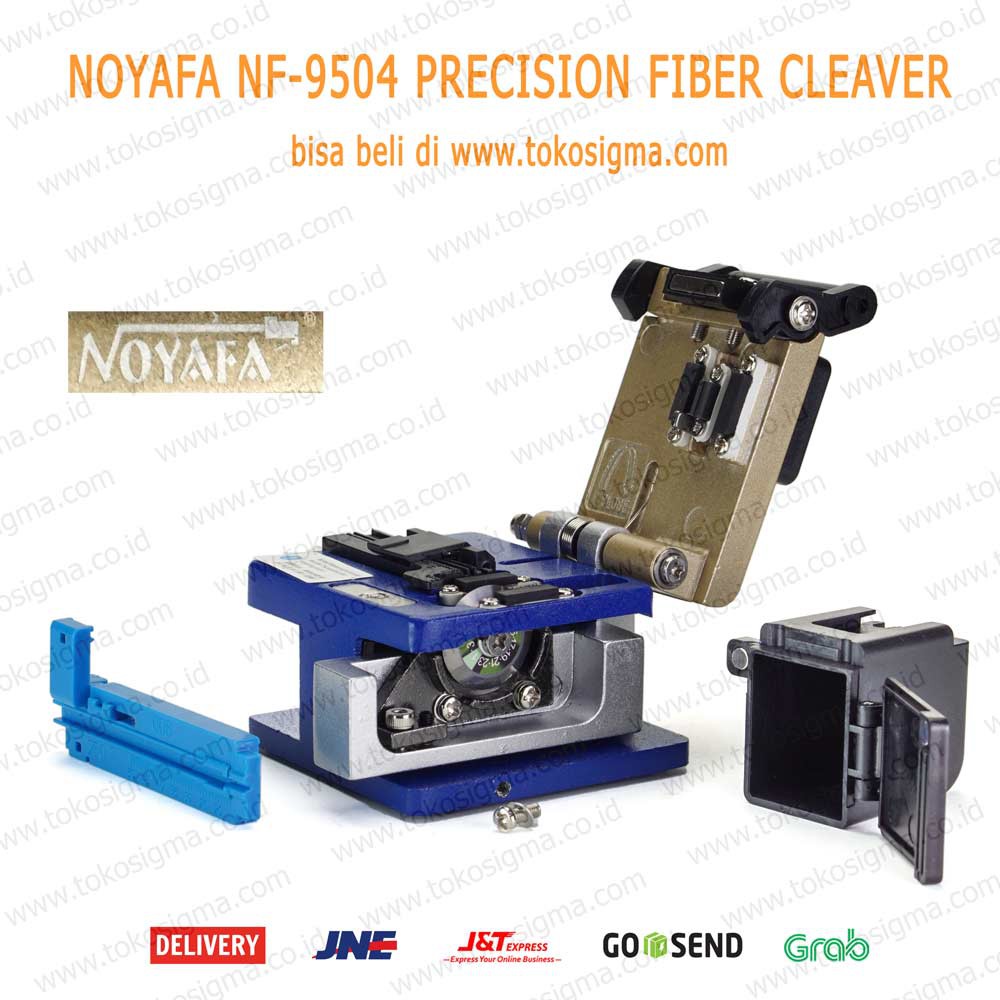

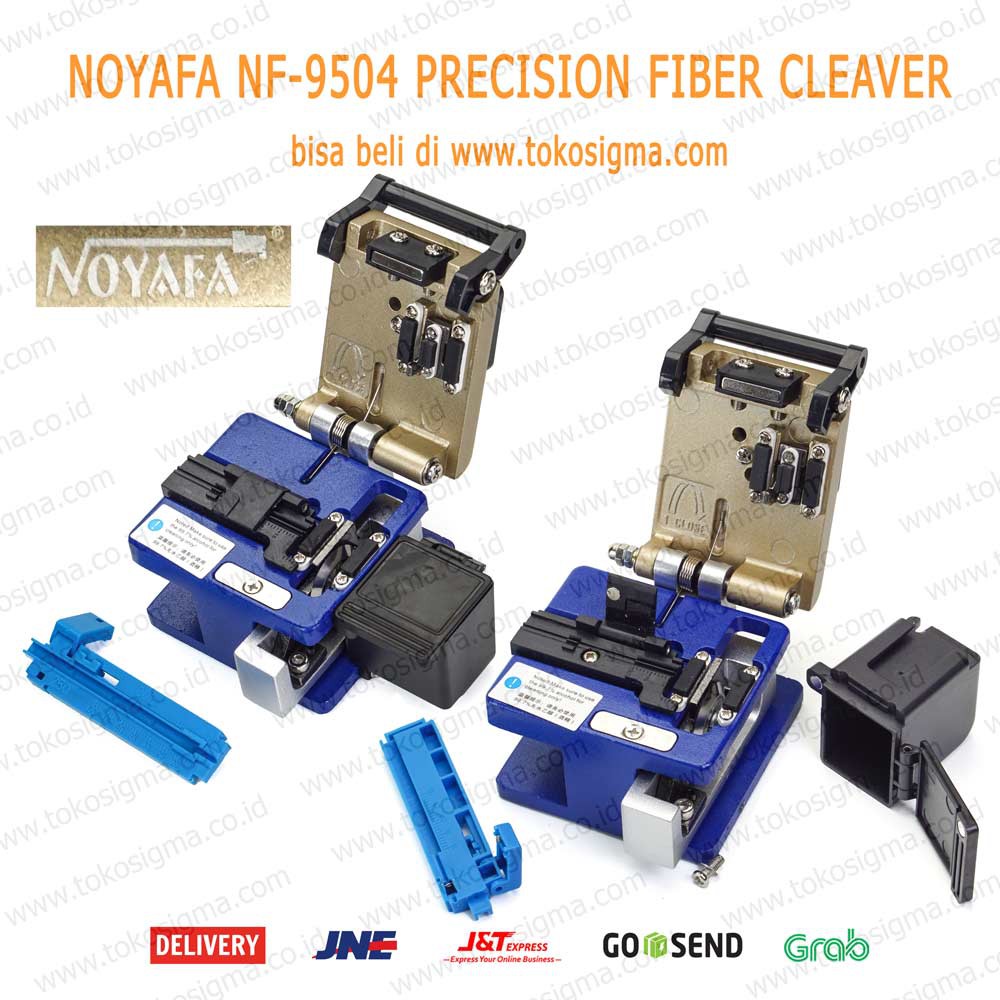

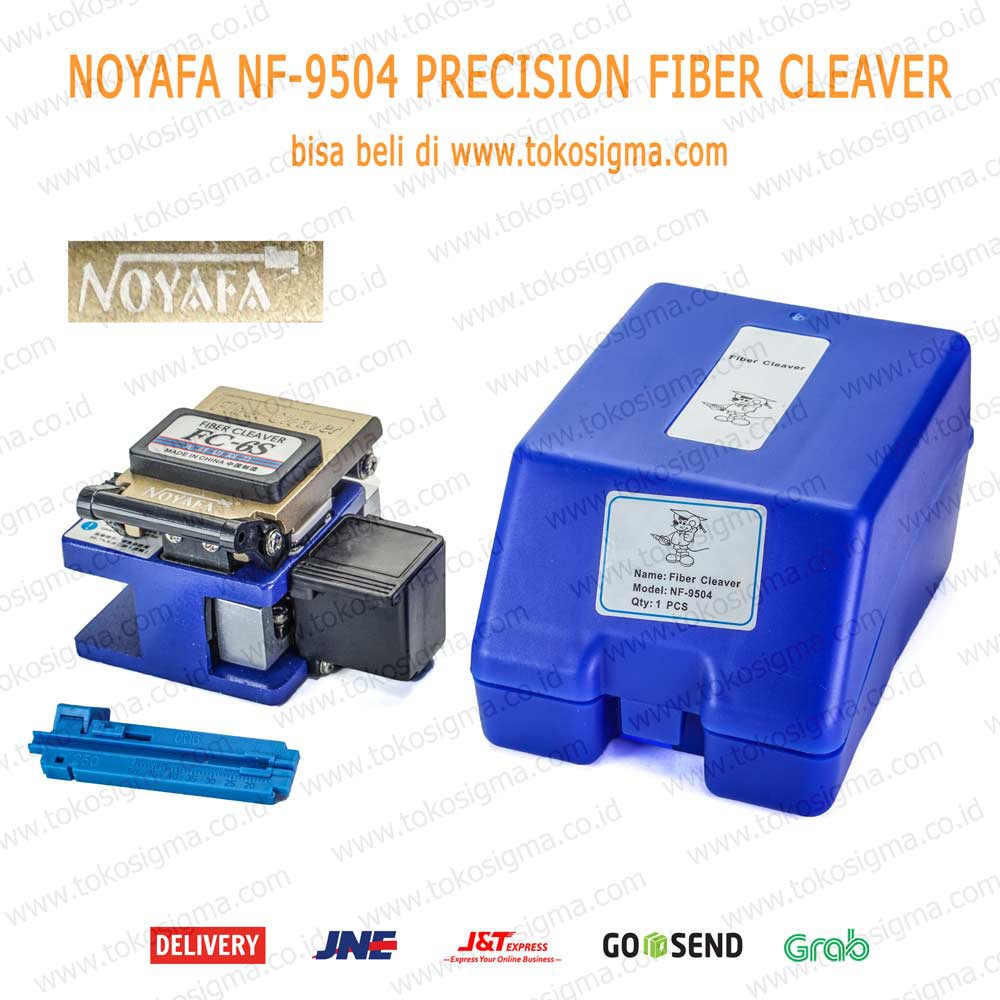

NOYAFA NF-9504 PRECISION FIBER CLEAVER - CUTTER PEMOTONG KABEL FIBER OPTIC

Detail NOYAFA NF-9504 PRECISION FIBER CLEAVER - CUTTER PEMOTONG KABEL FIBER OPTIC

JUAL : NOYAFA NF-9504 PRECISION FIBER CLEAVER - CUTTER PEMOTONG KABEL FIBER OPTIC

NOYAFA NF-9504 FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers.
It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.


Features:

Cold connection tool, single-mode or multimode use.
High precision cleaves, 250um coated or 900um buffer fiber.
Contained 12 position blade, life time up to 36,000 cleaves.
Large & small adjustable knife,
Easy to operate.
Compact body & light weight.

Specification :

Brand Name: Noyafa
Model Number: NF-9504
Fiber & Network Tools : Silver Fiber Knife
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Cutting angle: 0.5 Degrees
Jacket OD: 0.25 & 0.9mm
Provides approximately 36,000 cleaves
250um Coated or 900um Buffer fiber

Cleave Length:
9 - 16mm (Single Fiber - 0.25mm Coating)
10 - 16mm (Single Fiber - 0.9mm Coating)

Size: 63W × 76D × 63H (mm)
Weight: 475g

isi paket :

1 x Fiber Optic Cleaver
1 x Plastic Box
1 x Instructions
1 x Ruler guide
1 x Kunci L

Gambar produk
