Detail Noyafa NF-8208 Network Telephone Cable Multipurpose LCS Display

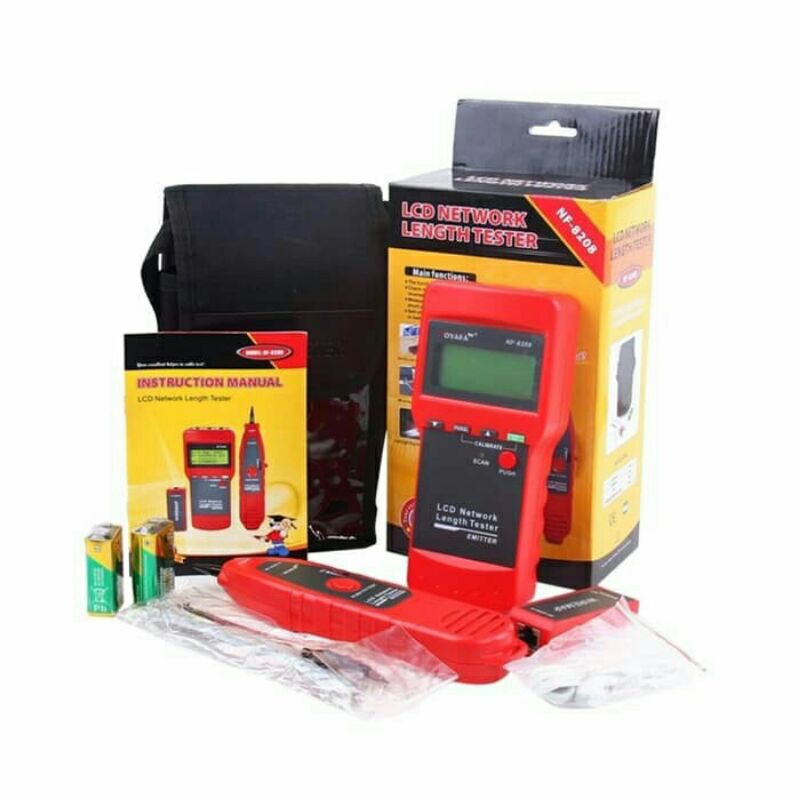

Noyafa NF-8208 Multipurpose LCD Display Network Telephone Cable

Noyafa NF-8208 Multipurpose LCD Display Network Telephone Cable Tester Tracker Line Finder Wire Tester Cable Locator
32882027007
ALX
Brand Name : NOYAFA
Type : Cable Tester
Model Number : NF-8208
Package : Yes


Features:
Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.
Measure length of network cable, and locate the open point.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
LCD light assists use in dark corners.
Enables cables to be located even when totally concealed.
Descriptions:
Single board computer software watchdog design and reliable operation.
Made of quality material, practical and durable.
Compact and portable, easy to handle.
Specifications:
Brand Name: Noyafa
Model: NF-8208
Material: Plastic
Color: red
Main Function: Test Track and Measure Length of Network Cable
Display: LCD with Backlight
Tracking Type: RJ45 ,RJ11
Testing type: RJ45, RJ11
Power: 9V Alkaline battery
NF-8208 Transmitter specifications:
Indicator: LCD 53x25 mm, with back light
Tone frequency: 225 Hz
Max. distance of transmission: 2 km
Max. distance of cable map: 1000m
Max. working current: Less than 70mA
Tone mode: 2 Tone adjustable
Compatible connectors: RJ45
Max. signal voltage: 15Vp-p
Function and faults LCD display: LCD display (wire map, Tone, short, , No adapter, Low battery)
Cable map indication: LCD (-)
Shielded indication: LCD ( )
Voltage protection: AC 60V/DC 42V
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD): 185x80x32mm
NF-8208 Receiver specifications:
Frequency: 225kHz
The Max. working current: Less than 70mA
Ear jack: 1
LED illumination: 2
Battery Type: DC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD): 218x46x29 mm
NF-8208 Remote unit specifications:
Compatible connectors: RJ45
Dimension(LxWxD):
