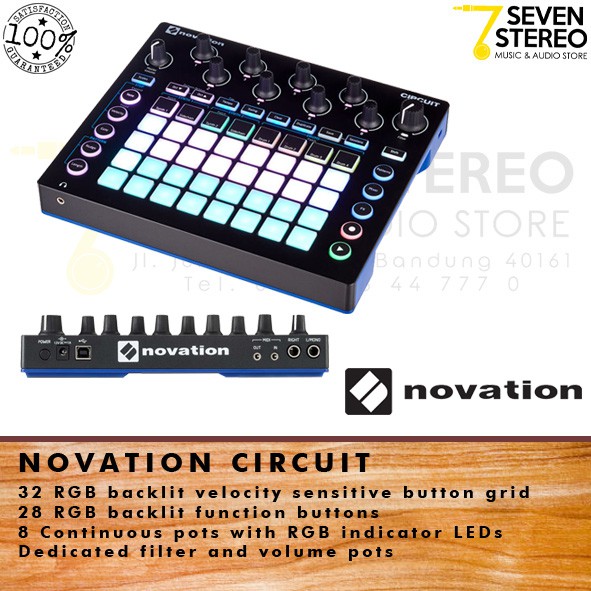

Novation Circuit Groovebox With Sample Import

Detail Novation Circuit Groovebox With Sample Import

Product Hardware Specifications
32 RGB backlit velocity sensitive button grid
28 RGB backlit function buttons
8 Continuous pots with RGB indicator LEDs
Dedicated filter and volume pots
1/4" jack sockets for left and right outputs
Two MIDI sockets (3.5mm jack sockets with MIDI din break-out cables)
USB socket
Front-mounted 3.5mm jack socket for headphones
Integrated speaker
Rubberised knob caps
Rotary controls secured to the chassis with metal nuts
Power supply connector
Power switch
Battery compartment for 6x AA batteries (included)
Kensington Security Slot
Sound Engine
2 Nova synths
4 Part drum machine
6 Note polyphonic per synth
64 Synth patches
64 Drum patches
8 Synth macro controls (Control up to 4 parameters with one knob)
4 Drum parameter controls (Pitch, Decay, Distortion, Filter)
Mixer view with levels and mutes
Master FX with individual track sends
16 Delays
8 Reverbs
Sidechain effect (7 types and off). Triggered from Drum 1
Hi-pass / low-pass master filter
Sequencer
32 Sessions
6 Tracks per session (2 Synth and 4 Drum)
8 Patterns per track (Synth 1, Synth 2, Drum 1&2, Drum 3&4)
16 Demo sessions
Real time record (notes, with velocity and automation)
Auto-quantise notes to steps and automation to 6 events per step
50 Automation parameters (up to 4800 events per pattern)
Internal tempo range 40 - 240
External synced tempo range 30 - 300
Swing 20 - 80%
Real Time Performance
Full range velocity scanning and record. Editable to 16 levels
16 Scale types and chromatic transposition
Synth expand view doubles playable area
Drum expand view allows real time drum record
Octave (input) and pattern octave (edit)
Pattern length and nudge
Configurable pattern chain
Session instant switching and queued switch
Editing
Velocity and gate per step
Multiple gate lengths per step (via real time record)
Automation edit per step
Clear step, automation parameter per pattern, pattern, session
Duplicate step, pattern
Software Compatibility
Ableton Live Lite 9 is included
Circuit will also work as a standard USB-MIDI controller.
Power Requirements
Circuit can be powered using 6x AA batteries or a power supply (both included). It can not be powered via USB
Maximum power consumption 12V DC 600mA
