NodeMcu LUA Wifi V3 4mb 32Mbits CH340 Flash ESP8266 ESP12 Board Module

Detail NodeMcu LUA Wifi V3 4mb 32Mbits CH340 Flash ESP8266 ESP12 Board Module

Bord ini merupakan board yang dapai kita pakai untuk berbagai projek IOT, Board ini merupakan versi ke-3 (V3) dimana lebih setabil dari versi-versi sebelumnya tentunya.

Untuk pemrogramannya sendiri tentu bisa kita perogram melalui aplikasi IDE arduino. Tutorialnya seabrek di google gan.

** Spesifikasi :
- Uses CH340G instead of CP2102.
- NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Communication interface voltage: 3.3V.
- Antenna type: Built-in PCB antenna is available.
- Wireless 802.11 b/g/n standard
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10VMAX), USB-powered
- Current: continuous transmission: 70mA (200mA MAX), Standby: 200uA
- Transfer rate: 110-460800bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Working temperature: -40 ~ + 125
- Drive Type: Dual high-power H-bridge driver
-- Flash size: 4MByte

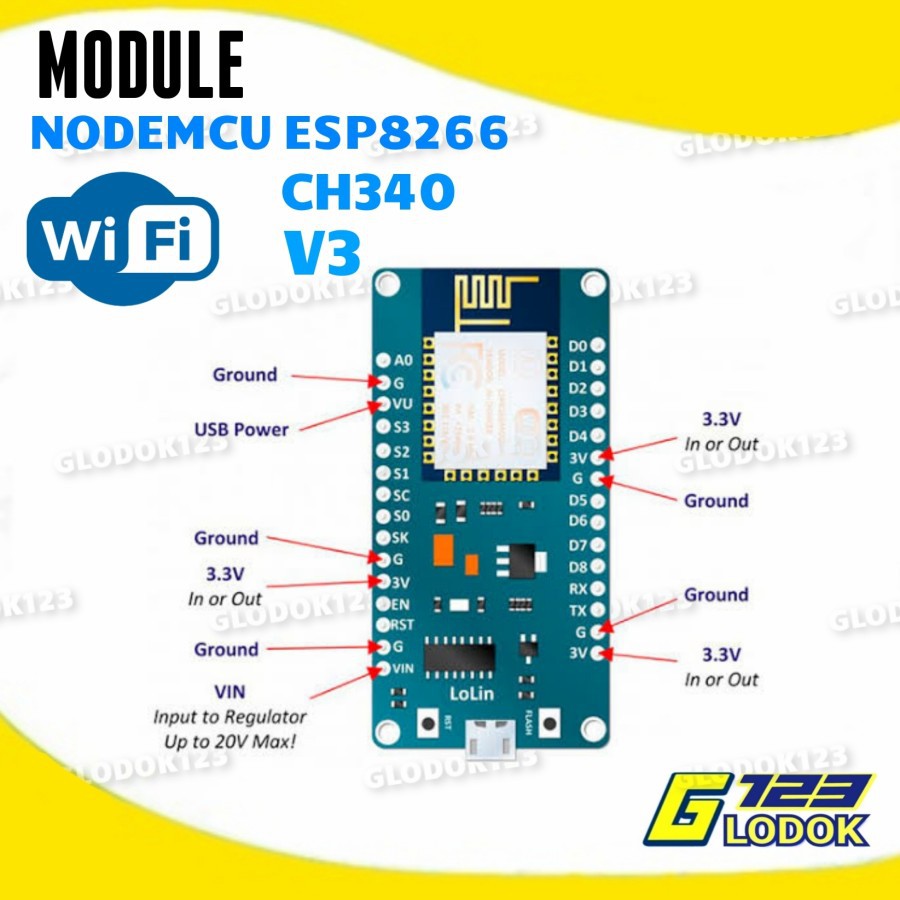

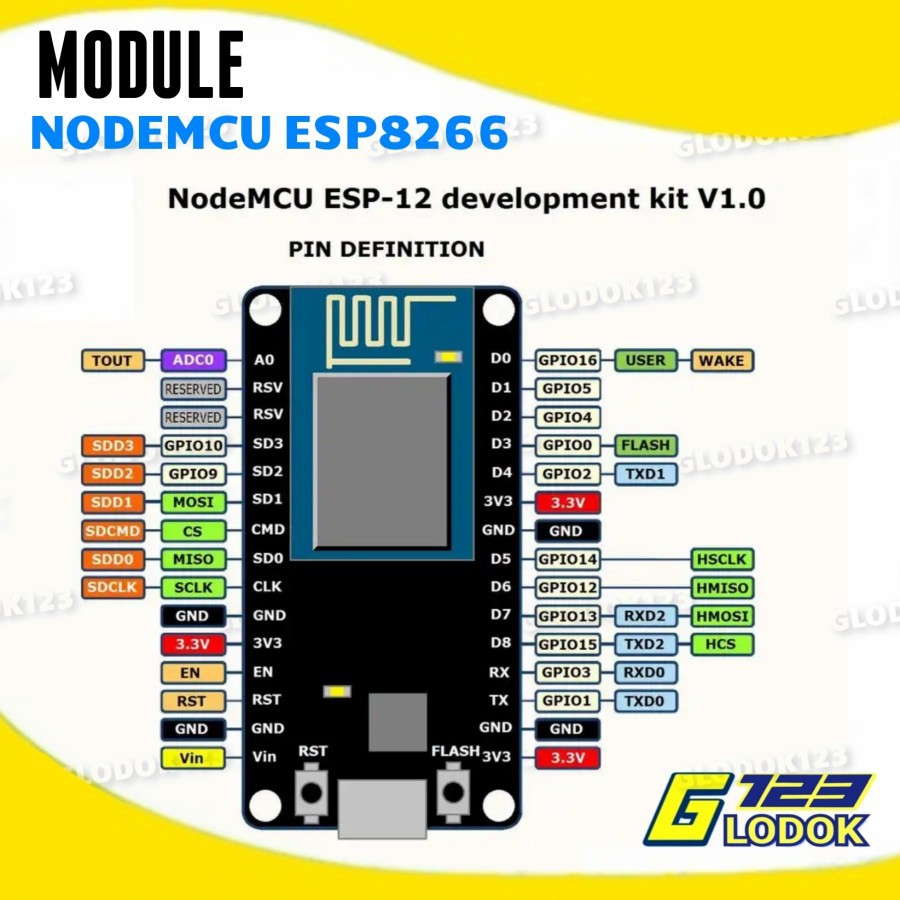

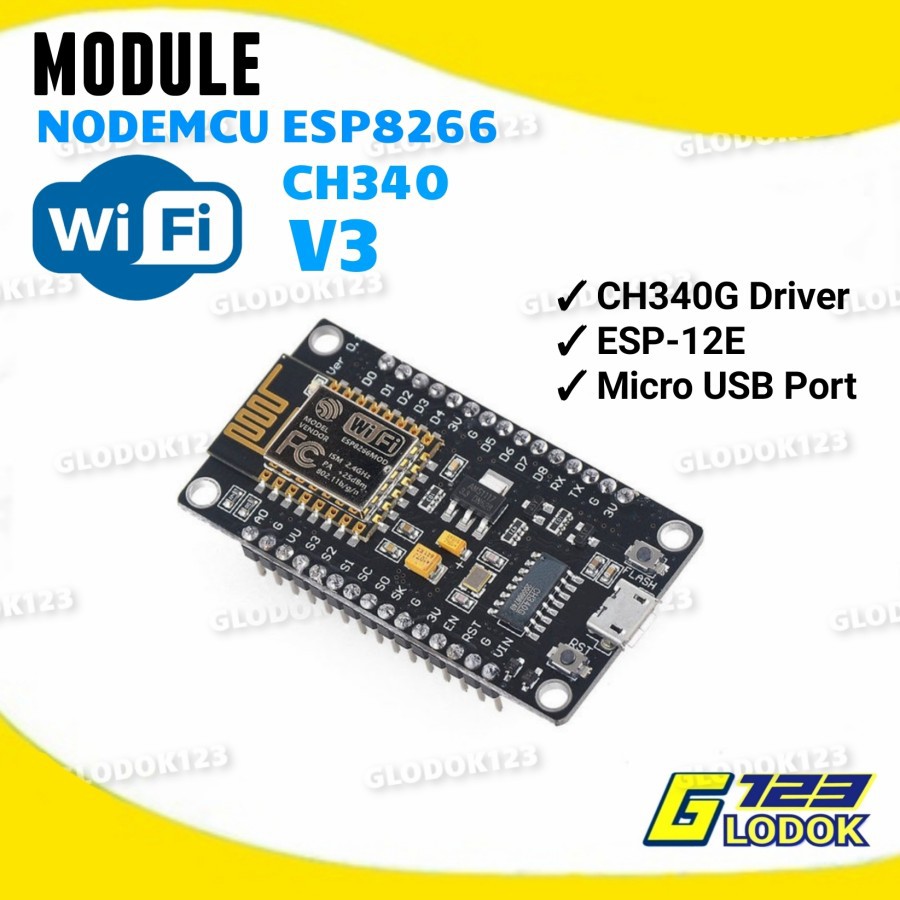

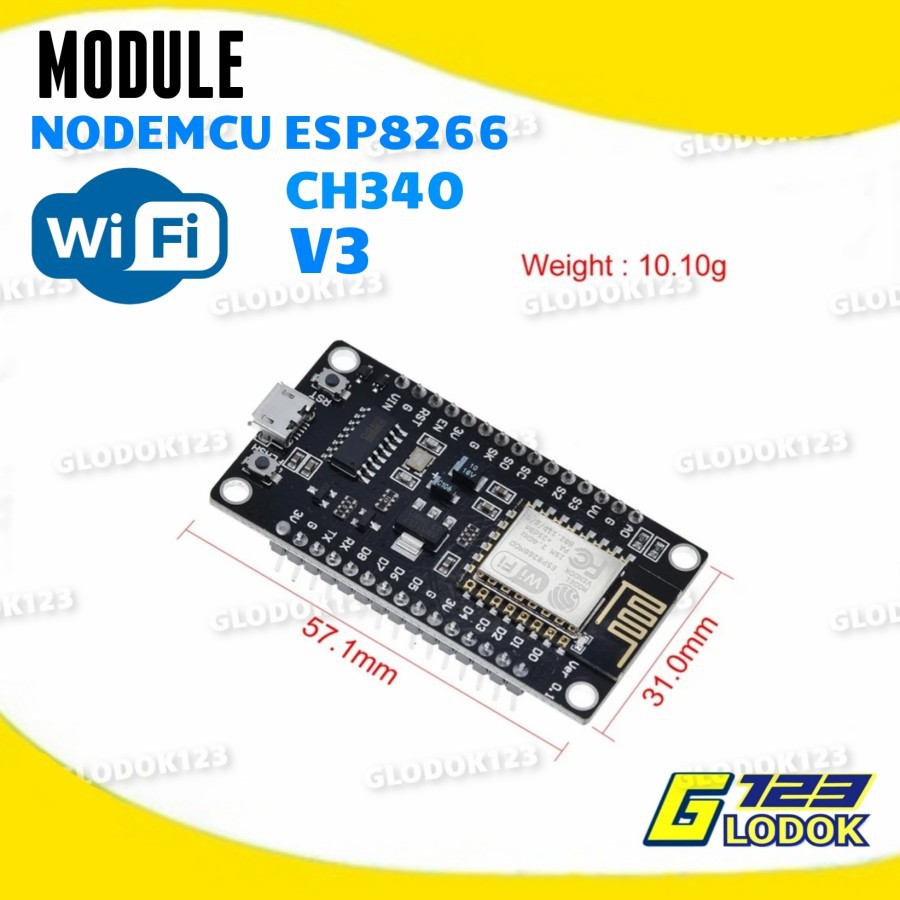

Gambar produk
