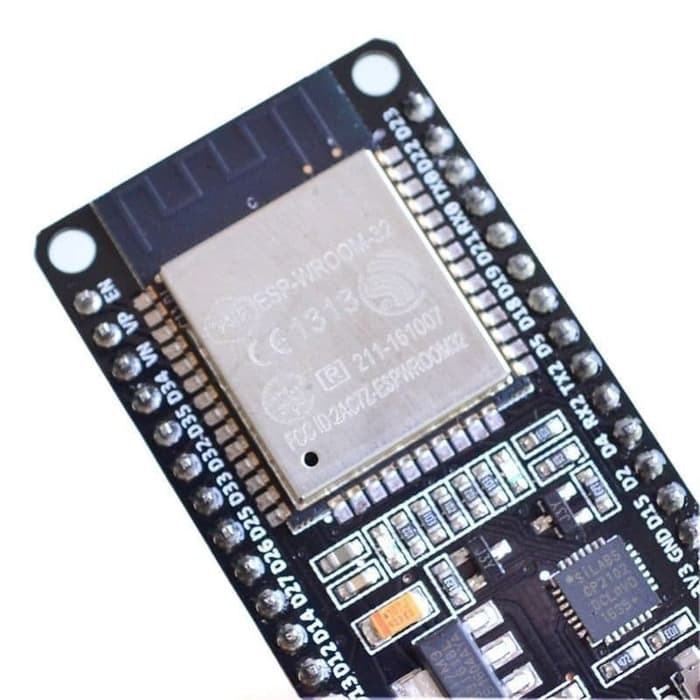

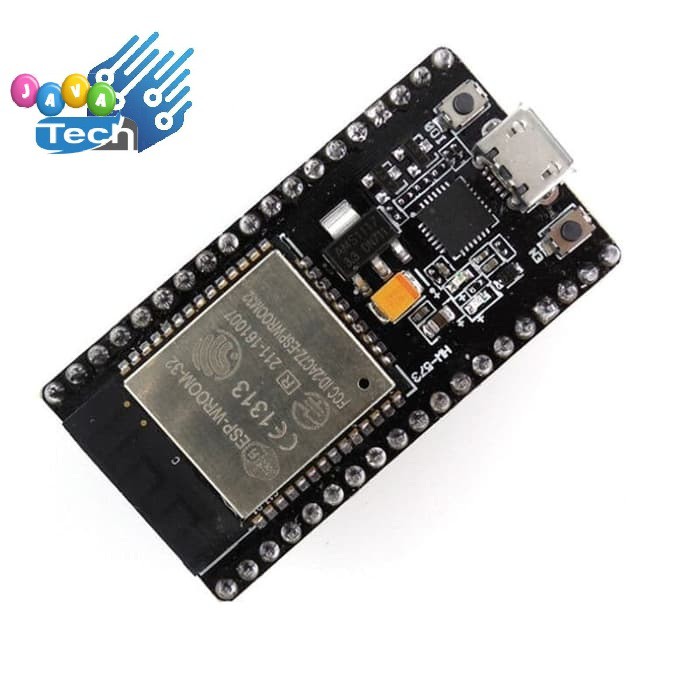

NodeMCU-32S Lua Development Board Bluetooth WIFI Module

Detail NodeMCU-32S Lua Development Board Bluetooth WIFI Module

NodeMCU-32S Lua Development Board Bluetooth WIFI Module
- Model: nodemcu-32S-32S ESP
- Microprocessor: Tensilica Xtensa 32-bit LX6
- Clock: up to 240MHz
- Performance: up to 600 DMIPS
- ROM: 448KB
- SRAM: 520KB
- RTC Slow SRAM: 8KB
- RTC Fast SRAM: 8KB
- Flash: 32Mb (4 megabytes)
- Operating Voltage: 2 , 2V - 3,6VDC
- logic level: 3.3V (not 5V tolerant)
- operating current (typical): 80mA
- Interfaces: GPIO / capacitive sensors / ADC / DAC pre amplified LNA / CAN
- ADC: Up to 18 channels
- ADC Resolution:12 bit
- DAC: 2
- DAC resolution: 8 bits
- GPIO: PWM function, I2C and SPI
- Support WiFi networks: 802.11 b / g / n
- WiFi frequency range: 2.4 to 2.5GHz
- WPA / WPA2 / WPA2-Enterprise / WPS
- Encryption: AES / RSA / ECC / SHA
- Mode of operation: Station / SoftAP / SoftAP + Station / P2P
- Built - in antenna - Bluetooth: v4.2 BR / EDR and BLE Energy)
- Dimensions: 26mm (L) X 16mm (A) X 48mm (C)
