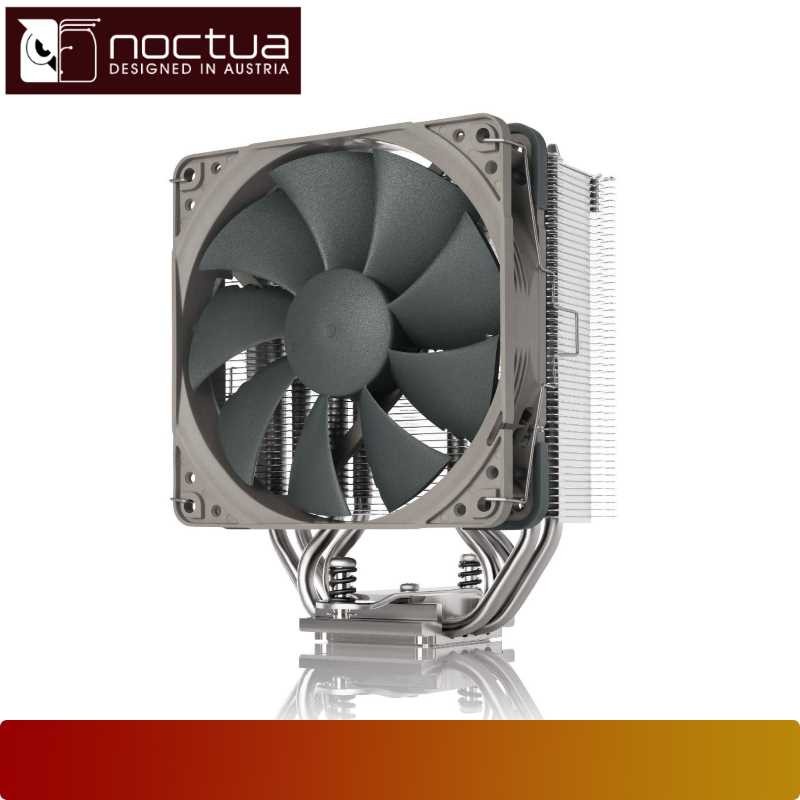

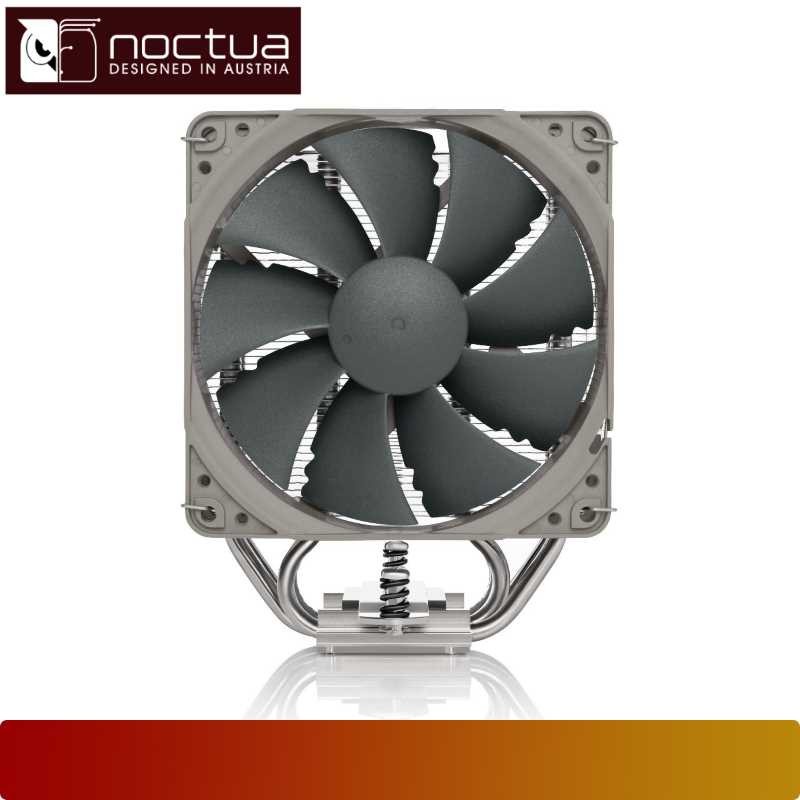

NOCTUA NH-U12S REDUX | Air CPU Cooler 158mm Height

Detail NOCTUA NH-U12S REDUX | Air CPU Cooler 158mm Height

NOCTUA NH-U12S REDUX | Air CPU Cooler 158mm Height

Socket compatibility : Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4

- Height (without fan) : 158 mm
- Width (without fan) : 125 mm
- Depth (without fan) : 45 mm
- Height (with fan) : 158 mm
- Width (with fan) : 125 mm
- Depth (with fan) : 71 mm
- Weight (with fan) : 755 g
- Material : Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
- NSPR : 129
- Max. TDP : see NSPR

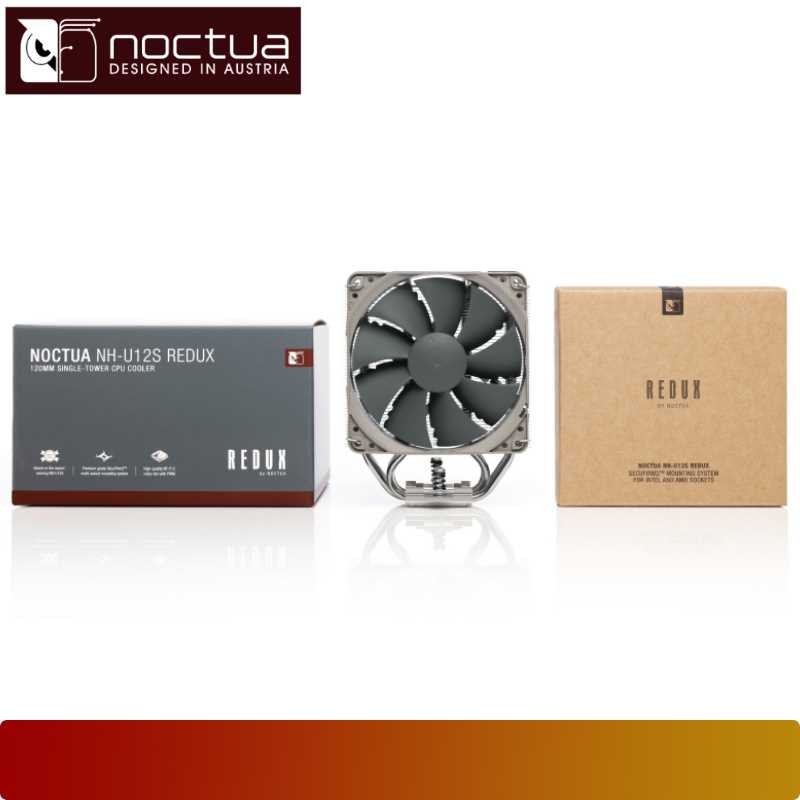

Scope of delivery :
- NH-U12S redux heatsink
- NF-P12 redux-1700 PWM fan
- 4x NA-AVP1 chromax.grey anti-vibration pads
- Fan mounting clips (one pair)
- NT-H1 high-grade thermal compound (pre-applied)
- SecuFirm2 mounting kit


FAN Specification :
- Fan compatibility : 120x120x25
- Model : NF-P12 redux-1700 PWM
- Bearing : SSO
- Max. rotational speed (+/- 10%) : 1700 RPM
- Min. rotational speed (PWM, +/-20%) : 450 RPM
- Max. airflow : 120,2 m/h
- Max. acoustical noise : 25,1 dB(A)
- Voltage range : 12 V
- MTTF > : 150.000 h

Warranty : 6 Years
