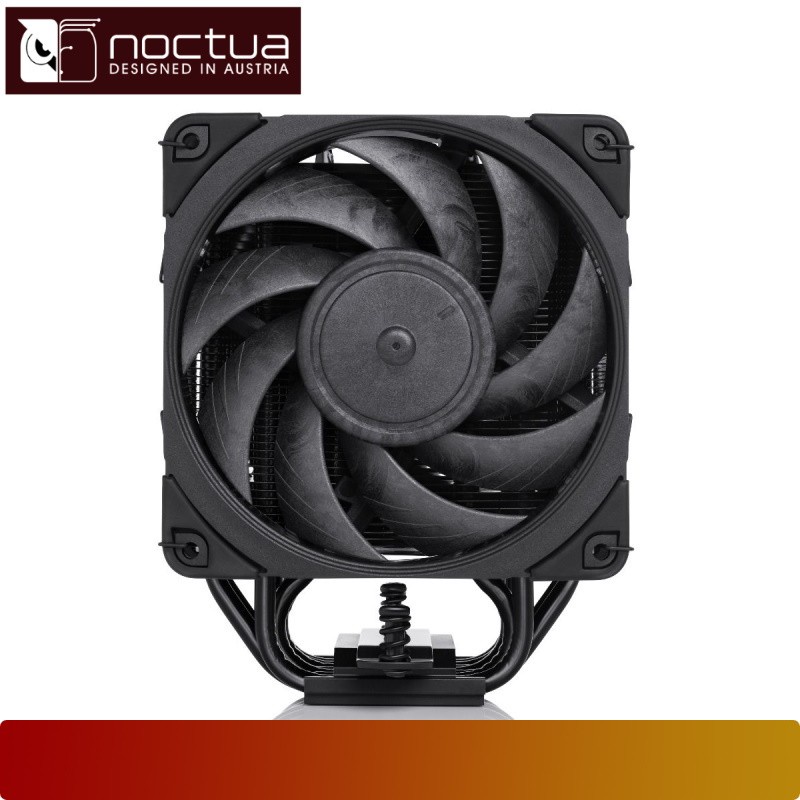

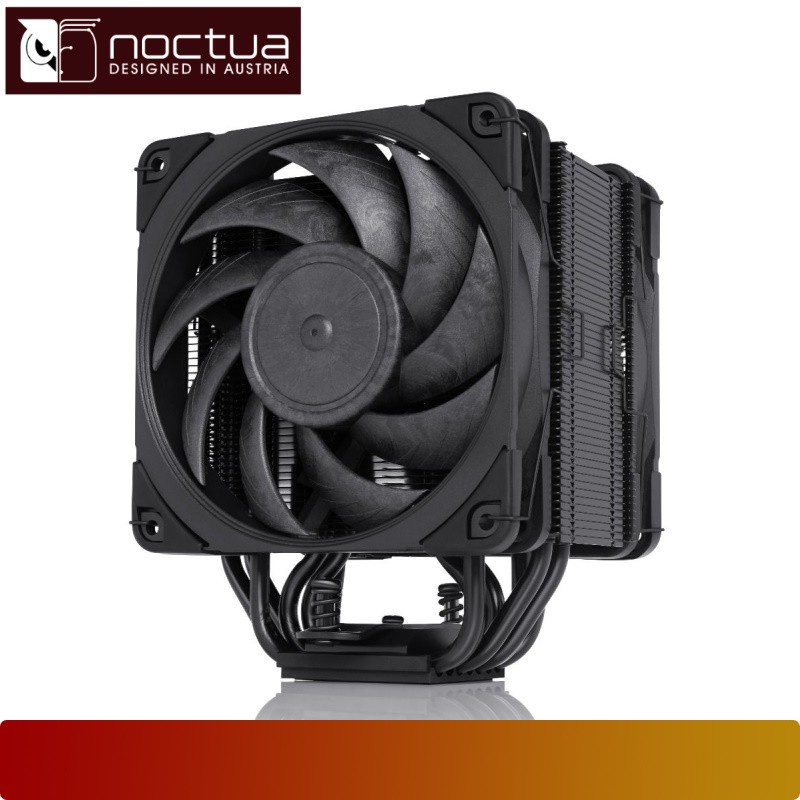

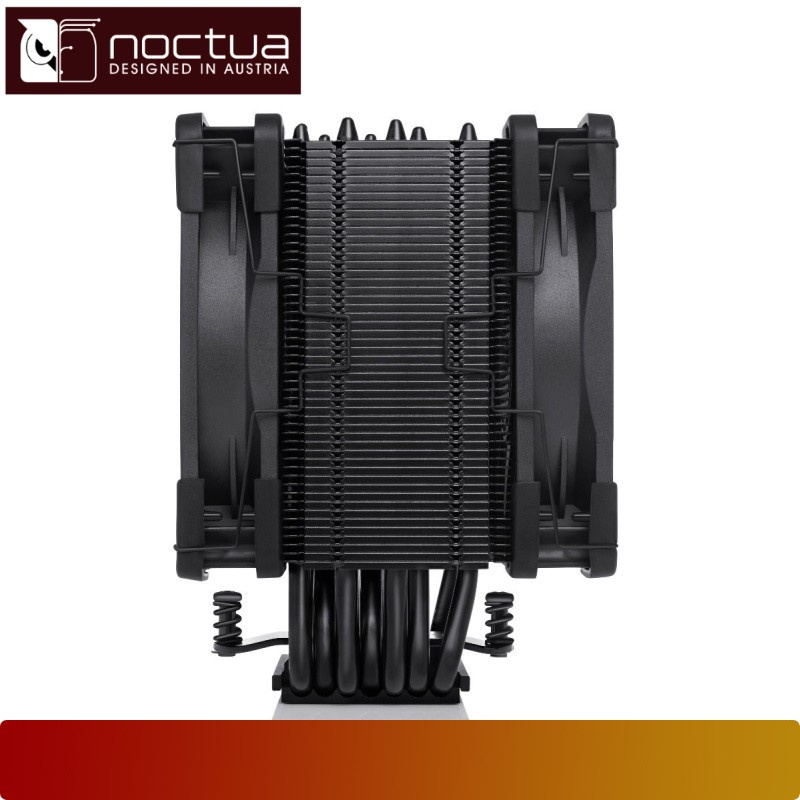

NOCTUA NH-U12A CHROMAX BLACK

Detail NOCTUA NH-U12A CHROMAX BLACK

NOCTUA NH-U12A CHROMAX BLACK | 140mm performance in 120mm size

Socket compatibility :
- Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066
- AMD AM4, AM3(+), AM2(+), FM1, FM2(+)

Height (without fan): 158 mm
Width (without fan): 125 mm
Depth (without fan): 58 mm
Weight (without fan): 760 g
Height (with fan): 158 mm
Width (with fan): 125 mm
Depth (with fan):112 mm
Weight (with fan):1220 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR:169
Fan compatibility: 120x120x25

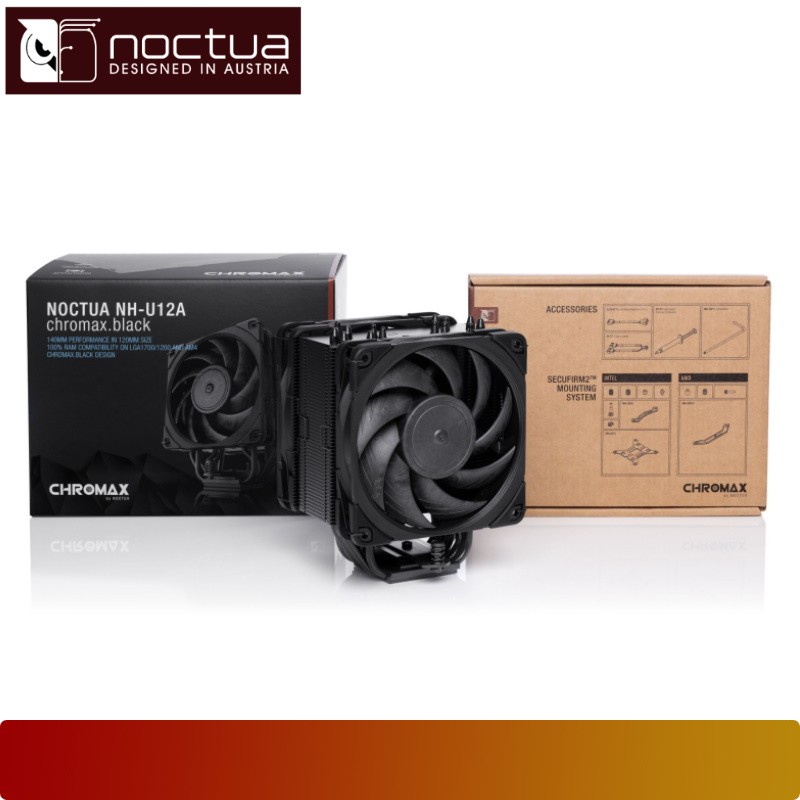

Scope of delivery:
- Black NH-U12A heatsink
- 2x NF-A12x25 PWM chromax.black premium fan
- 2x NA-RC14 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Noctua Metal Case-Badge

FAN Specification :
- Model Noctua: NF-A12x25 PWM chromax.black
- Bearing : SSO2
- Max. rotational speed (+/- 10%) : 2000 RPM
- Max. rotational speed with L.N.A. (+/- 10%) : 1700 RPM
- Min. rotational speed (PWM, +/-20%) : 450 RPM
- Max. airflow : 102,1 m³/h
- Max. airflow with L.N.A. : 84,5 m³/h
- Max. acoustical noise : 22,6 dB(A)
- Max. acoustical noise with L.N.A. : 18,8 dB(A)
- Voltage range : 12 V
- MTTF : > 150.000 h
