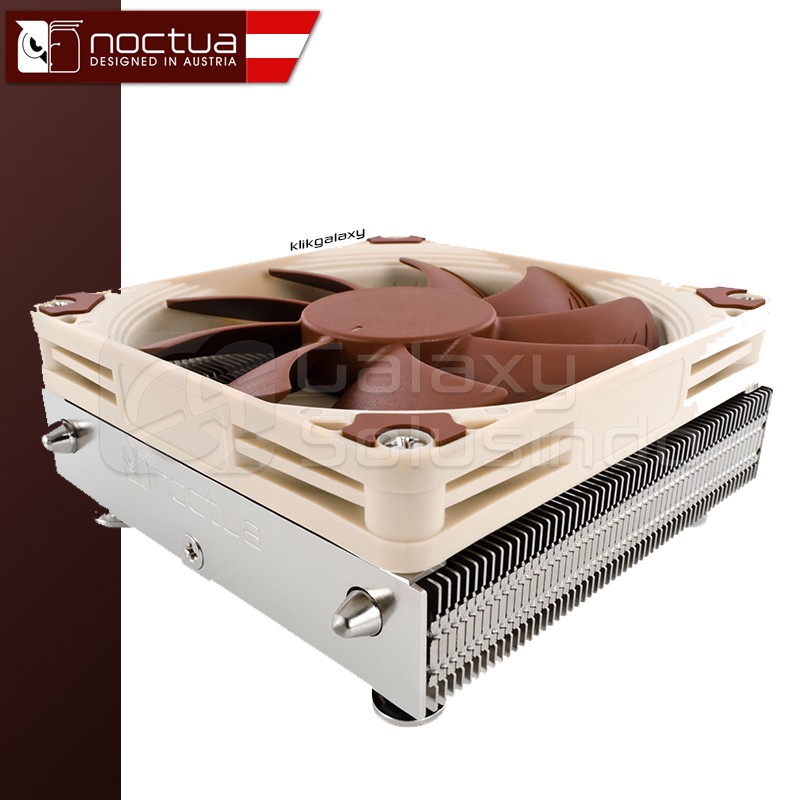

Noctua NH-L9I NF-A9x14 37mm Low Profile Cooler With PWM For Small Form Factor

Detail Noctua NH-L9I NF-A9x14 37mm Low Profile Cooler With PWM For Small Form Factor

SPECIFICATION:
Product Details
Notes and warnings
The NH-L9i is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9i is recommended for your CPU.
Cooler Specification
Socket compatibility
Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, AMD AM4 with NM-AM4-L9aL9i
Height (without fan)
23 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Weight (without fan)
320 g
Height (with fan)
37 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
385 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see CPU compatibility list
Fan compatibility
92x92x14mm, 92x92x25mm

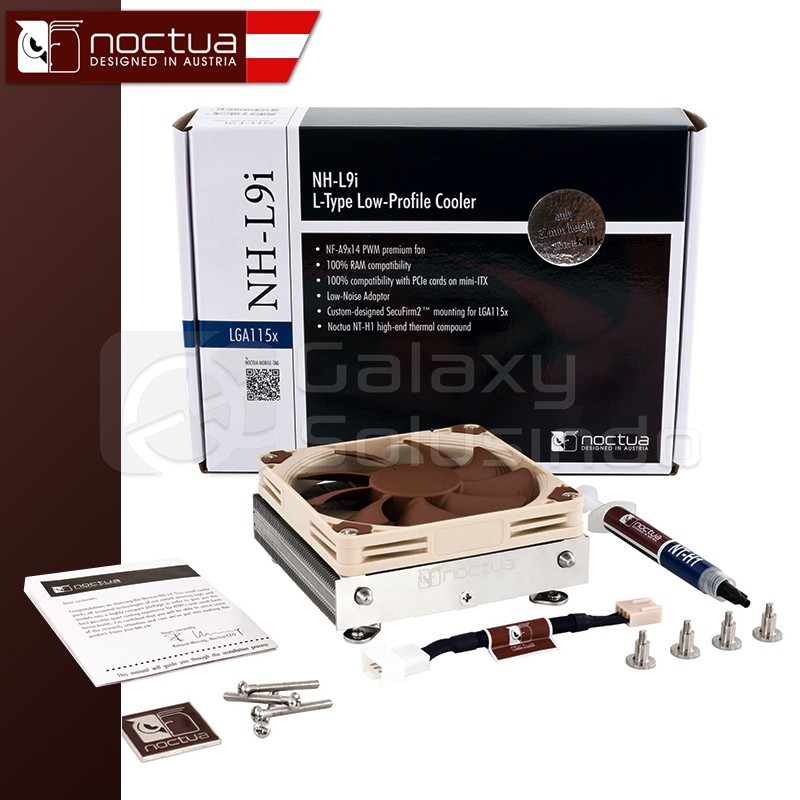

Scope of delivery

NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Screws for 92x92x25mm fans
Noctua Metal Case-Badge

Warranty
6 Years
FAN Specification
Model
Noctua NF-A9x14 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed (PWM, +/-20%)
600 RPM
Max. airflow
57,5 m³/h
Max. airflow with L.N.A.
40,8 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
