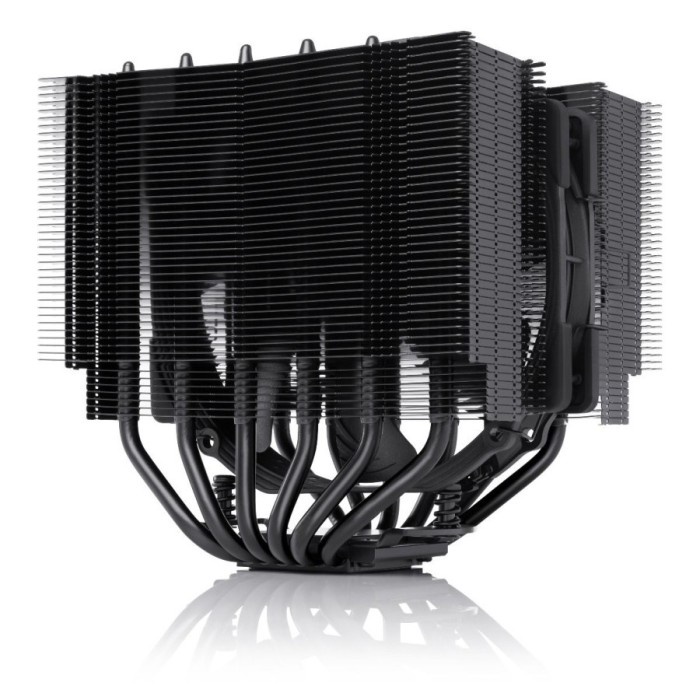

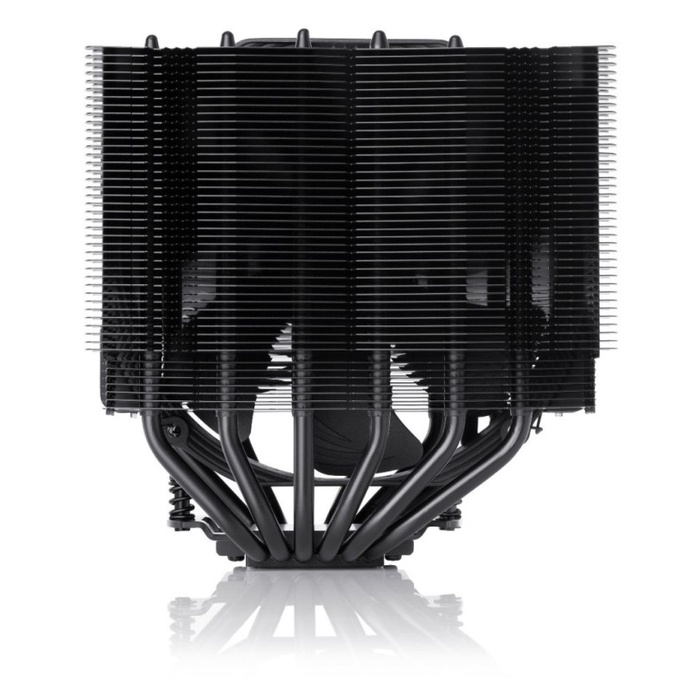

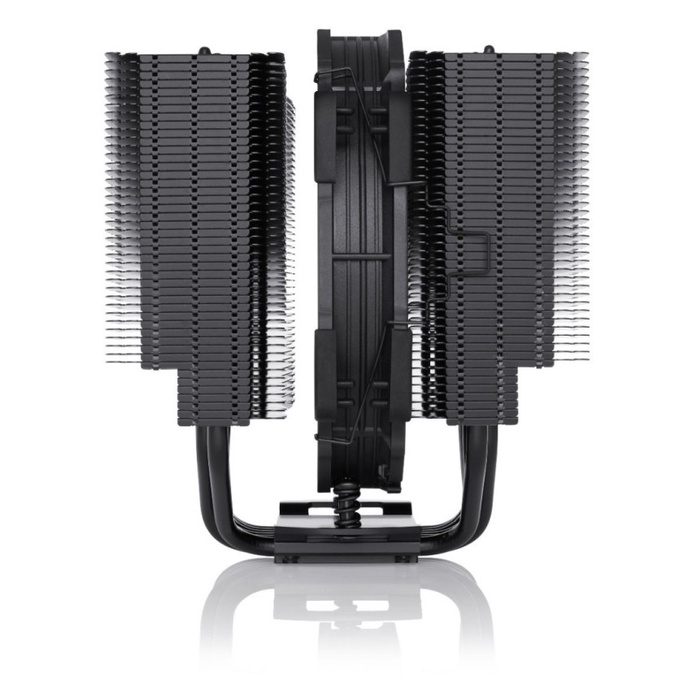

Noctua NH-D15S CH, BK Chromax Black - Cooler Processor

Detail Noctua NH-D15S CH, BK Chromax Black - Cooler Processor

Noctua NH-D15S CH, BK Chromax Black - Cooler Processor
Socket compatibilityIntel
LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4

Height (without fan) : 160 mm
Width (without fan) : 150 mm
Depth (without fan) : 135 mm
Weight (without fan) : 980 g
Height (with fan) : 165 mm
Width (with fan) : 150 mm
Depth (with fan) : 161 mm
Weight (with fan) : 1320 g
Material : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility : 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

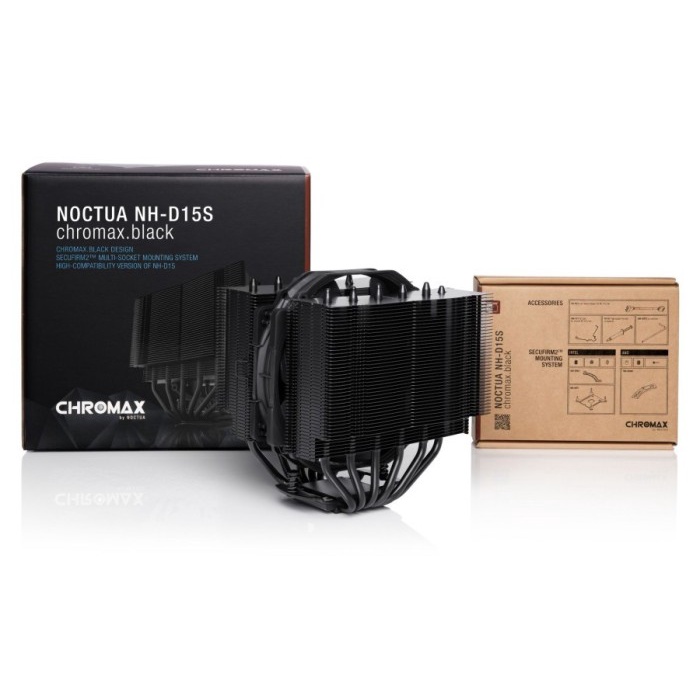

Scope of delivery :
-Black NH-D15 heatsink
-2x NF-A15 HS-PWM chromax.black premium fan
-2x Low-Noise Adaptor (L.N.A.)
-4-pin PWM Y-cable
-NT-H1 high-grade thermal compound
-Black SecuFirm2™ Mounting Kit
-Noctua Metal Case-Badge


FAN Specification
Model : 2x Noctua NF-A15 HS-PWM chromax.black
Bearing : SSO2
Max. rotational speed (+/- 10%) : 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM
Min. rotational speed (PWM, +/-20%) : 300 RPM
Max. airflow : 140,2 m³/h
Max. airflow with L.N.A. : 115,5 m³/h
Max. acoustical noise : 24,6 dB(A)
Max. acoustical noise with L.N.A. : 19,2 dB(A)
Voltage range : 12 V
MTTF> : 150.000 h

Gambar produk
