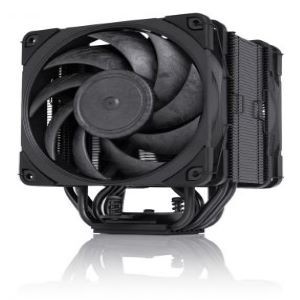

NOCTUA NH-D12L

Detail NOCTUA NH-D12L

NOCTUA NH-D12L

Product Details
Notes and warnings Further reading:
button Which Noctua 120mm CPU cooler should I choose? How do the NH-U12A, NH-D12L, NH-U12S and NH-U12S redux compare against each other?

Cooler Specification
Socket compatibility Intel LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2011, LGA2066 and AMD AM5, AM4
Height (without fan) 145 mm
Width (without fan) 125 mm
Depth (without fan) 113 mm
Weight (without fan) 700 g
Height (with fan) 145 mm
Width (with fan) 125 mm
Depth (with fan) 113 mm
Weight (with fan) 890 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 148
Max. TDP see NSPR
Fan compatibility NF-A12x25r (square-frame 120mm fans not supported)
Scope of delivery
NF-A12x25r PWM premium fan
NA-RC14 Low-Noise Adaptor (L.N.A)
NT-H1 high-grade thermal compound
Fan-clips for second NF-A12x25r
SecuFirm2 mounting kit
Noctua metal case-badge
Warranty 6 Years

FAN Specification
Model Noctua NF-A12x25r PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 2000 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
Max. airflow 102,1 m³/h
Max. airflow with L.N.A. 84,5 m³/h
Max. acoustical noise 22,6 dB(A)
Max. acoustical noise with L.N.A. 18,8 dB(A)
Voltage range 12 V
MTTF > 150.000 h
