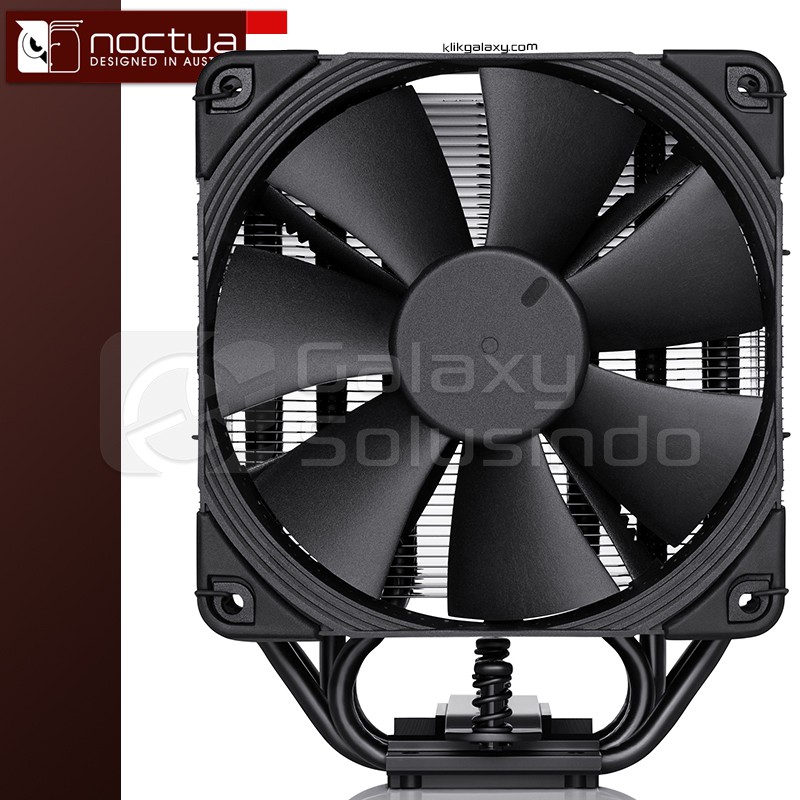

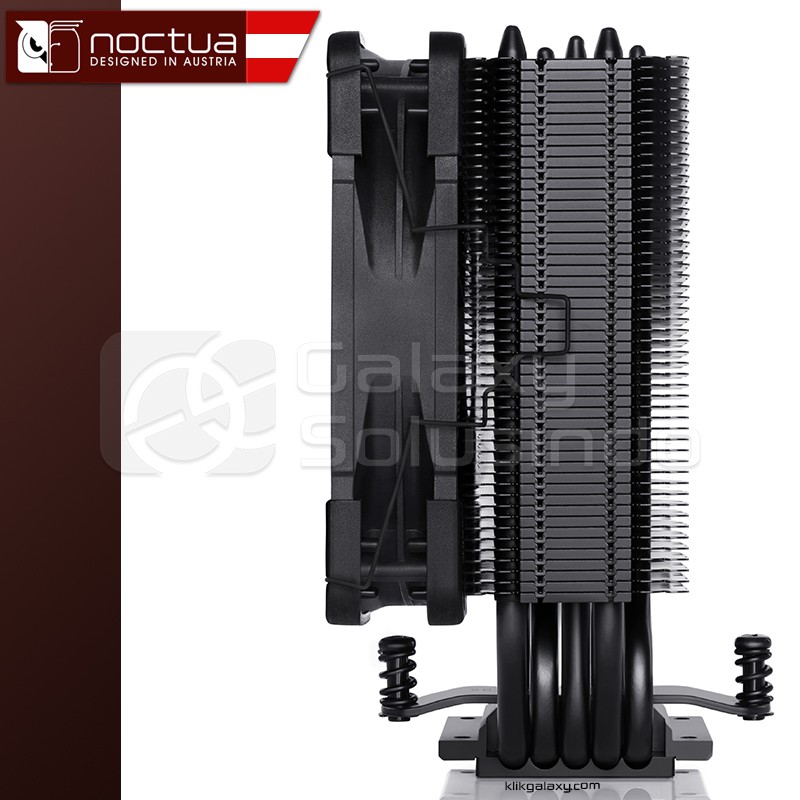

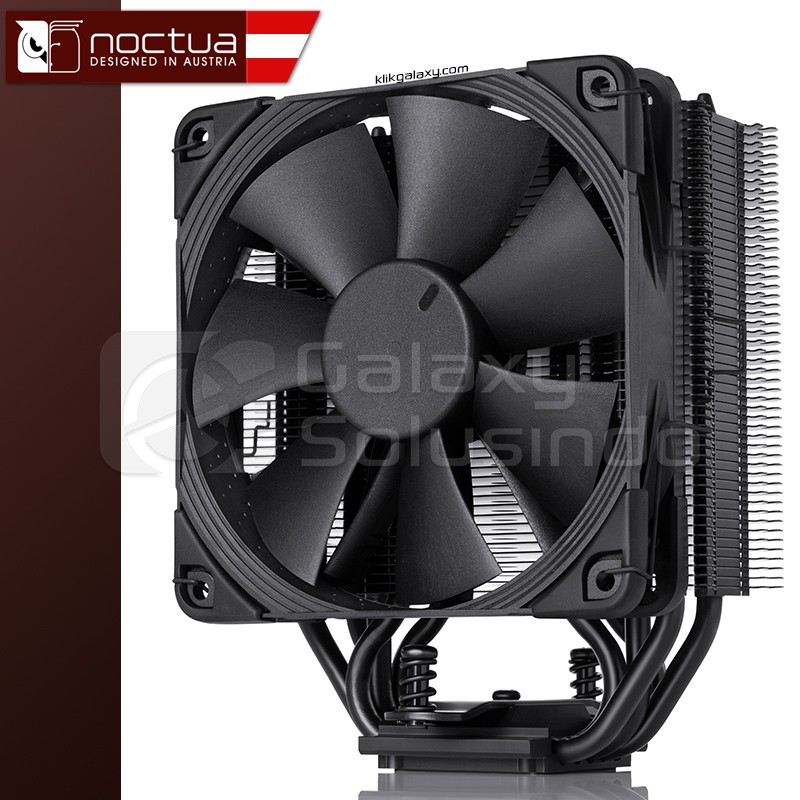

Noctua CHROMAX NH-U12S / NHU12 SNF-F12 120mm fan with PWM

Detail Noctua CHROMAX NH-U12S / NHU12 SNF-F12 120mm fan with PWM

SPECIFICATION:
Cooler Specification
Socket compatibility
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan)
158 mm
Width (without fan)
125 mm
Depth (without fan)
45 mm
Weight (without fan)
580 g
Height (with fan)
158 mm
Width (with fan)
125 mm
Depth (with fan)
71 mm
Weight (with fan)
755 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see CPU compatibility list
Fan compatibility
120x120x25

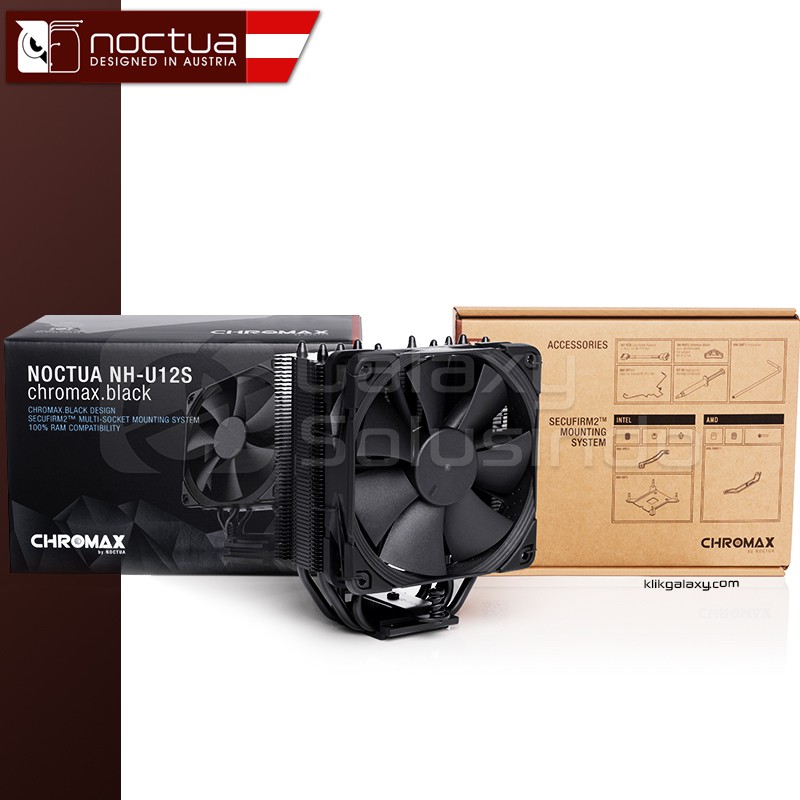

Scope of delivery

Black NH-U12S heatsink
NF-F12 PWM chromax.black premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Black anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge

Warranty
6 Years
FAN Specification
Model
Noctua NF-F12 PWM chromax.black
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed (PWM, +/-20%)
300 RPM
Max. airflow
93,4 m³/h
Max. airflow with L.N.A.
74,3 m³/h
Max. acoustical noise
22,4 dB(A)
Max. acoustical noise with L.N.A.
18,6 dB(A)
Voltage range
12 V
MTTF
> 150.000 h
