Nobsound Douk Audio NS-15G NS15G NS15 Mini BT Digital Power Amplifier

Detail Nobsound Douk Audio NS-15G NS15G NS15 Mini BT Digital Power Amplifier

Note :
Garansi Resmi PT Intium Indonesia 6 Bulan

Nobsound Douk Audio NS-15G Mini Bluetooth TPA3116 Digital Power Amp
Mini Bluetooth 5.0 TPA3116 Digital Power Amplifier HiFi Stereo Audio Sound Class D Amp Bass Treble For Speaker

Features

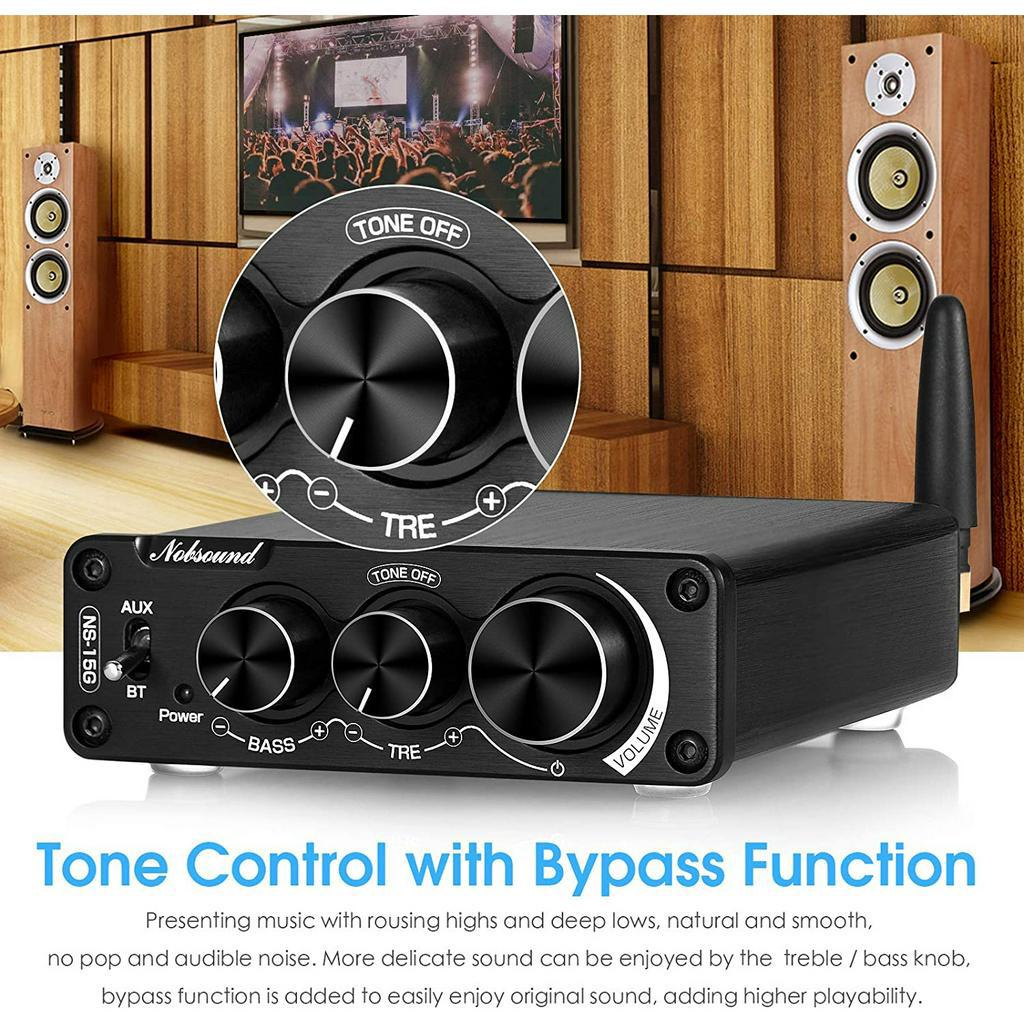

Tone off design and HiFi clear sound: more delicate and smooth sound can be enjoyed by adjusting treble / bass knob, presenting music with rousing highs and deep lows, also with bypass function to enjoy original sound.
Strong compatibility and large output power: besides RCA, with Bluetooth 5.0 input supports up to 50ft connection range, stable and low delay. 2PCS TPA3116 chip, max output power can reach 200W, comes with 19V power supply, can drive 200W (8Ω) or 300W(4Ω) speakers.

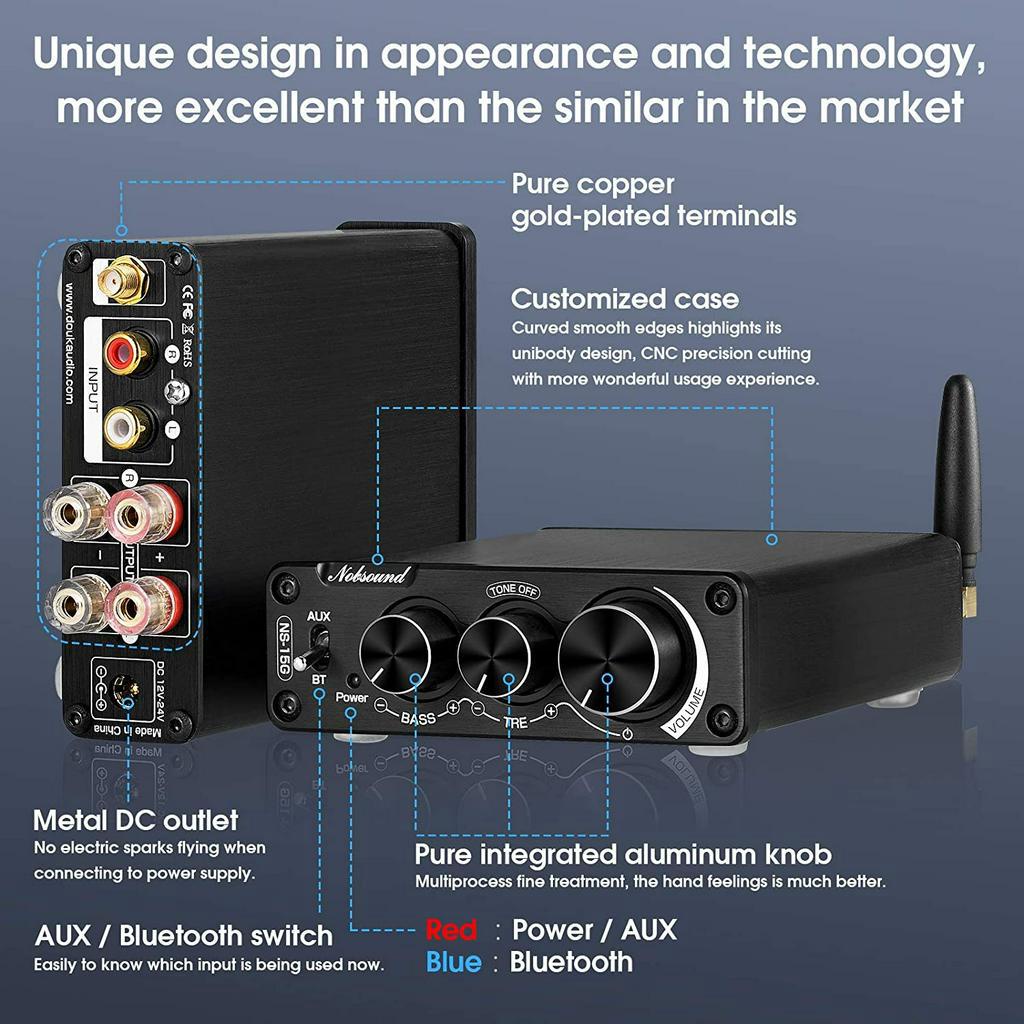

Unique design in appearance and technology: AUX / Bluetooth switch with red / blue indicator; pure integrated aluminum case and knob with multiprocess fine treatment, CNC precision cutting ; curved smooth edges highlights its unibody design; metal DC outlet, no electric sparks flying.

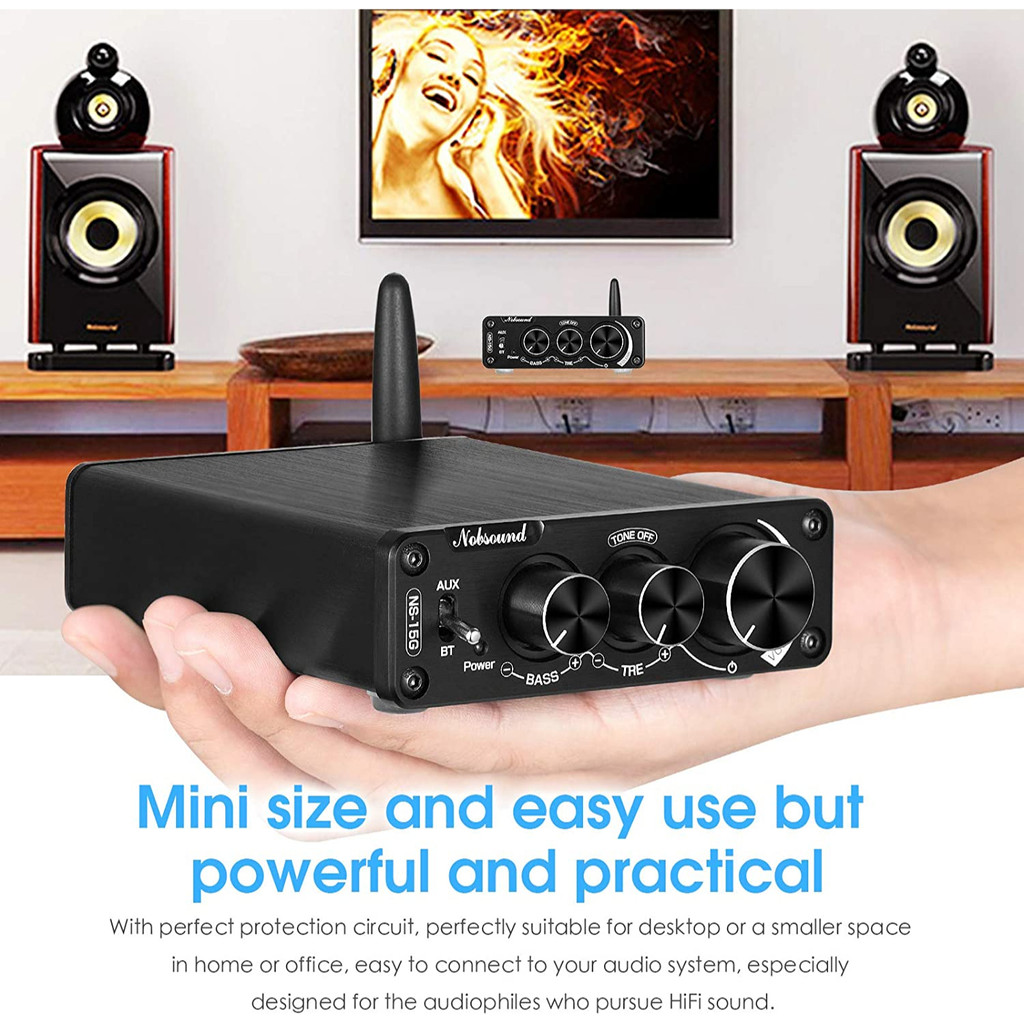

Mini size and easy use but powerful and practical: with perfect protection circuit, perfectly suitable for desktop or a smaller space in home or office, easy to connect to your audio system, especially designed for the audiophiles who pursue HiFi sound.

Parameters

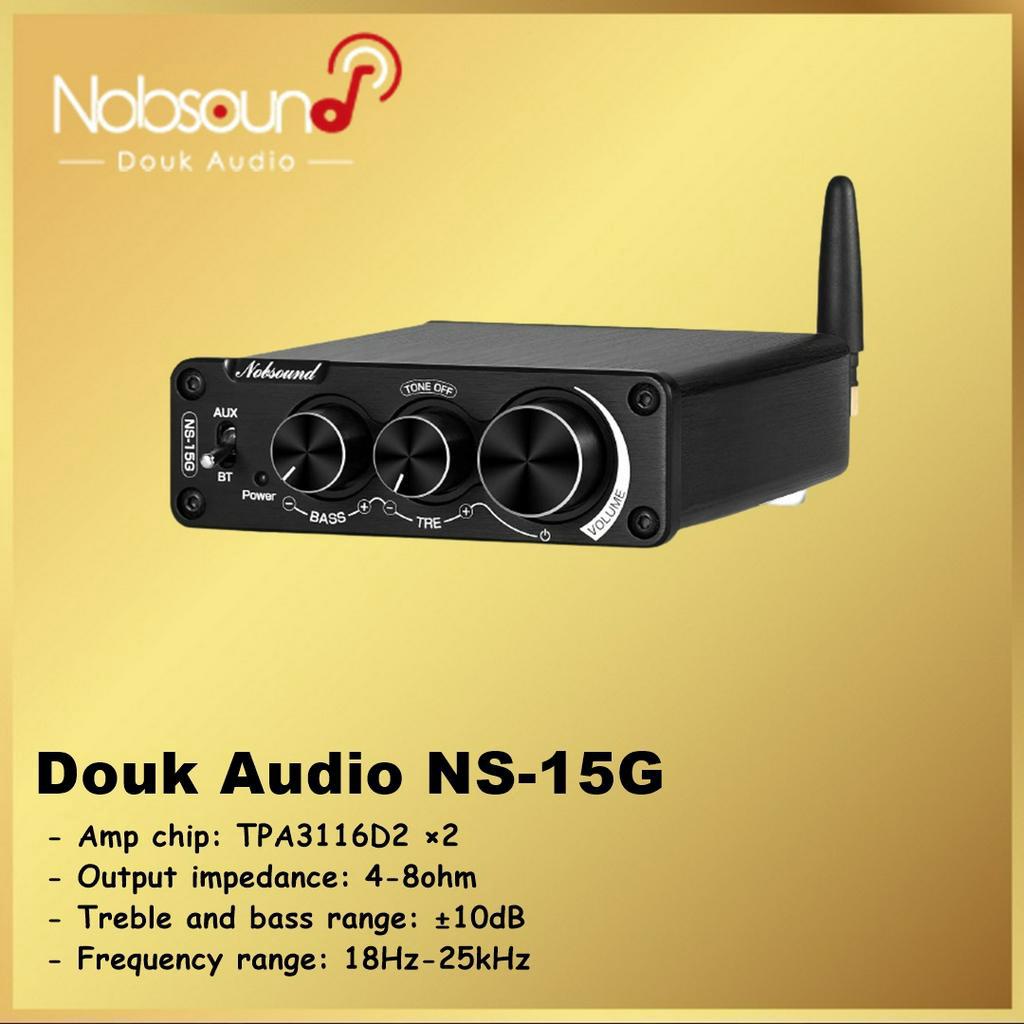

Brand: Nobsound
Model: NS-15G
Number of channel: 2.0

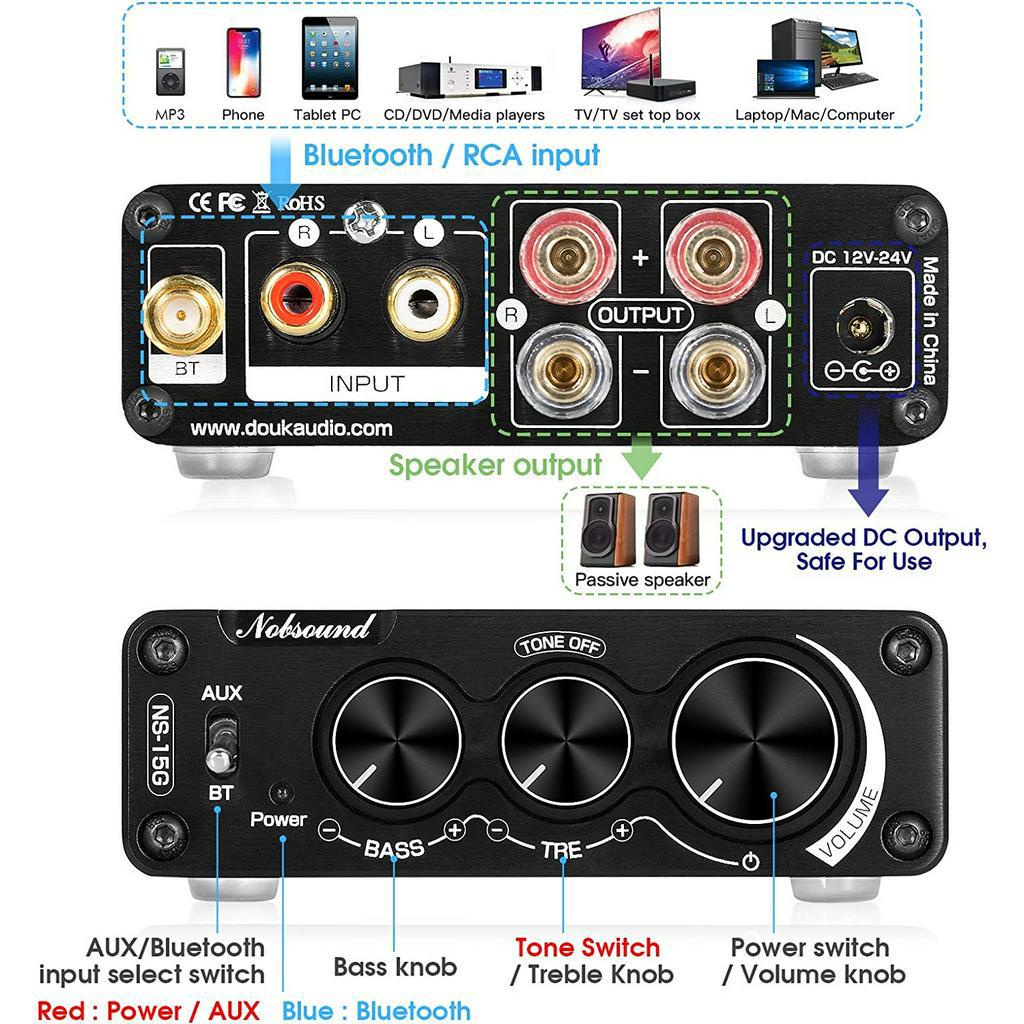

Audio input: Bluetooth / stereo L/R RCA
Audio ouput: banana speaker jacks
Amp chip: TPA3116D2 ×2
Max. output power: 100W+100W (above 24V@8A / 4Ω)
Output impedance: 4Ω-8Ω
Treble and bass range: ±10dB
Tone bypass function: support
Frequency range: 18Hz-25kHz
THD: ≤ 0.01%
SNR: ≥ 98dB
Input sensitivity: 1.1V
Matched speakers: 3-10 inch 20-200W
Working voltage: DC 12V-24V
Dimensions(W*D*H): 92*108*30mm / 3.62*4.25*1.18in
Package dimensions(W*D*H): 150*150*50mm / 5.91*5.91*1.97in
Net weight: 320g / 0.71lb
Package weight: 900g / 1.98lb

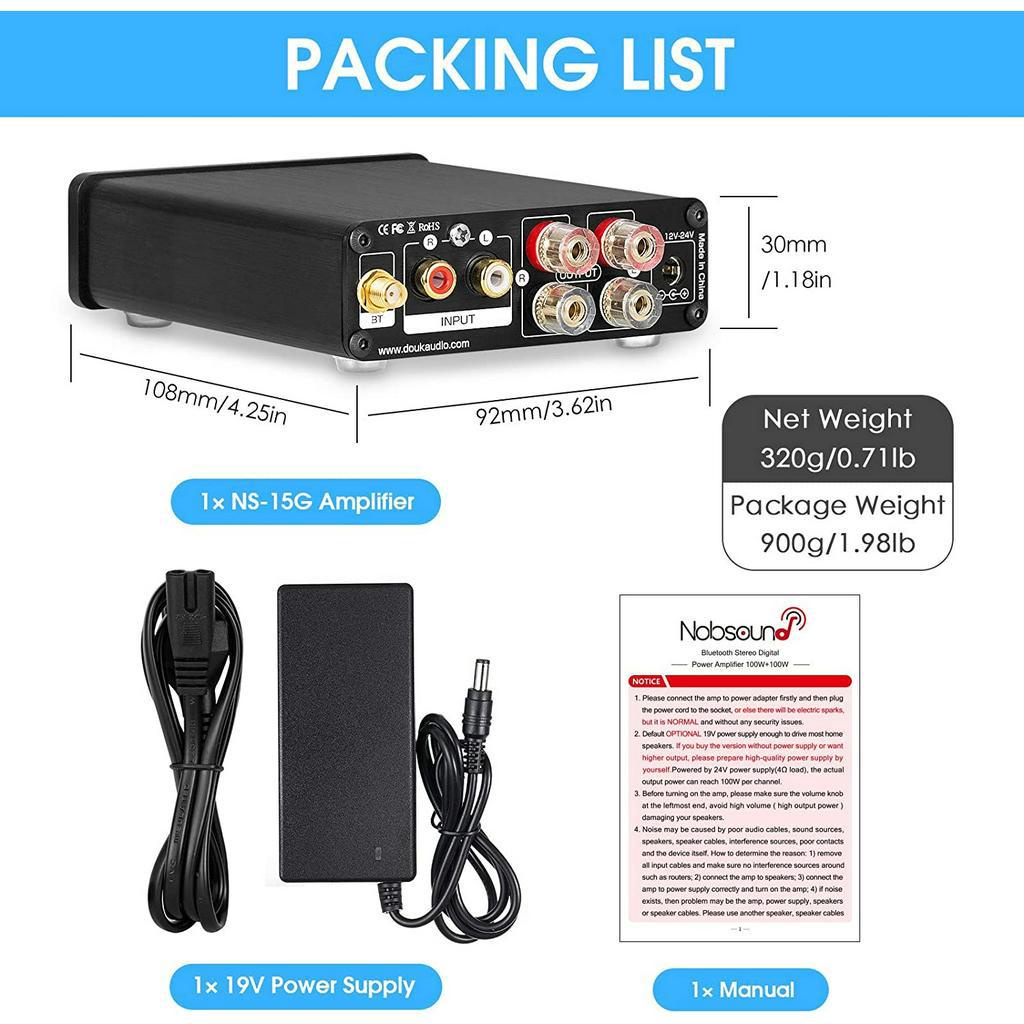

Packing List
1× NS-15G Amplifier
1× 19V Power Supply ()
1× User Manual
