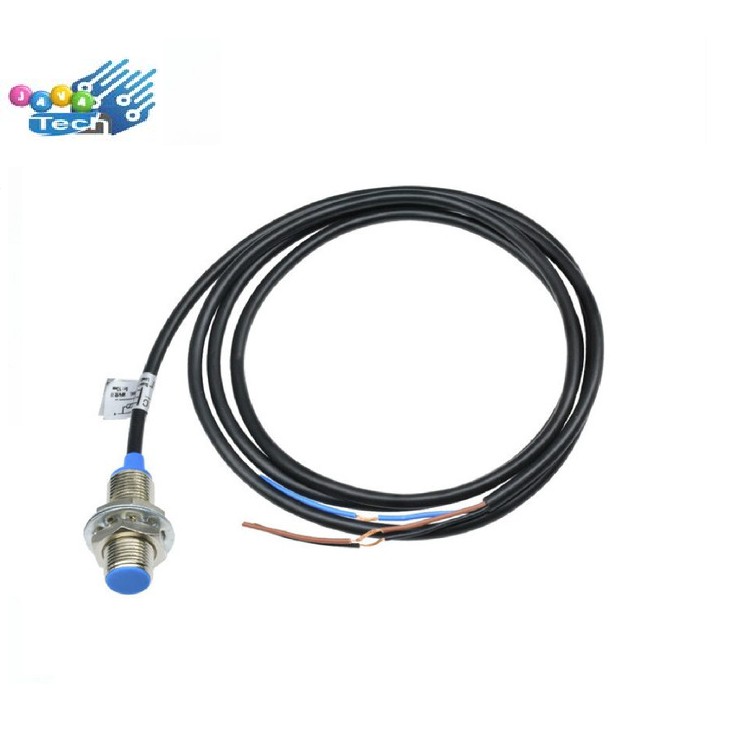

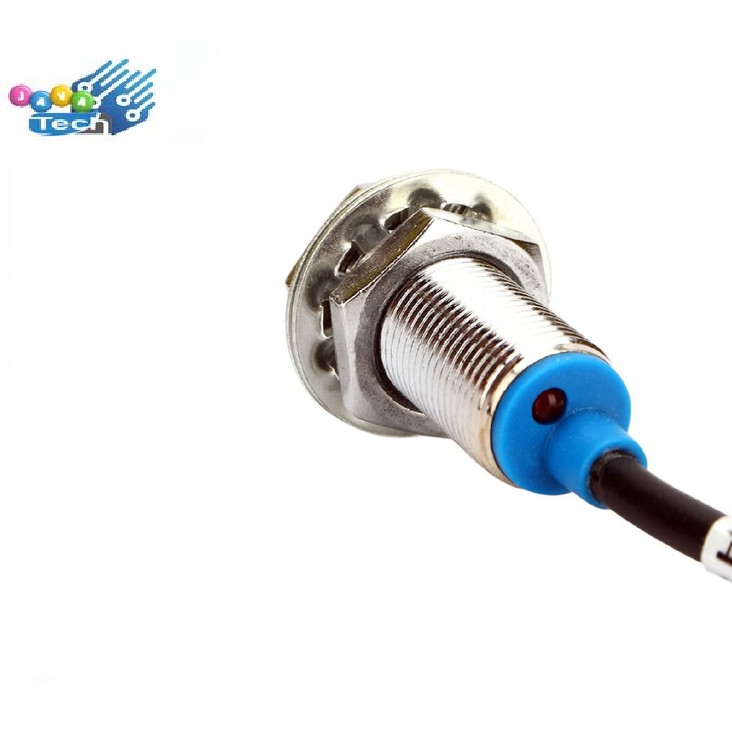

Detail NJK5002C Hall Effect Proximity Switch Sensor 5-36V DC NJK 5002C

Deskripsi NJK5002C Hall Effect Proximity Switch Sensor 5-36V DC NJK 5002C
Features:
Wide supply voltage range.
High frequency.
Long life, small volume, convenient installation.
Can directly connect the transistor and TTL, MOS and so on logic circuit.

Specifications:
Type: NJK - 5002C
Appearance: M12mm cylinder
Output: NPN three wire normally open type
The detection distance: 10 mm
Supply voltage: 5-24VDC,6-36VDC
Output current: 200 mA
Objects can be detected: permanent magnets
Switching frequency: 320 KHZ
The shell material: copper
Wiring:brown-Power+,blue-Power-,black-signal
