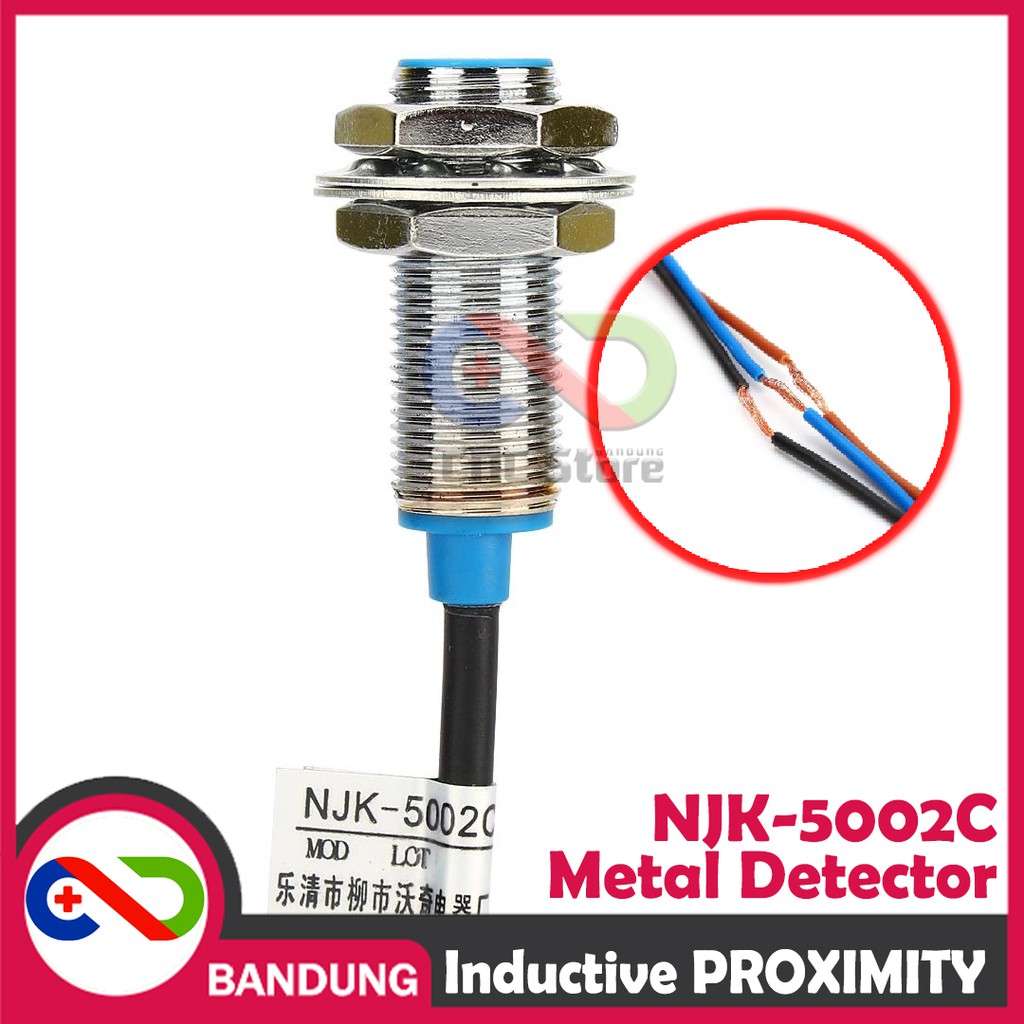

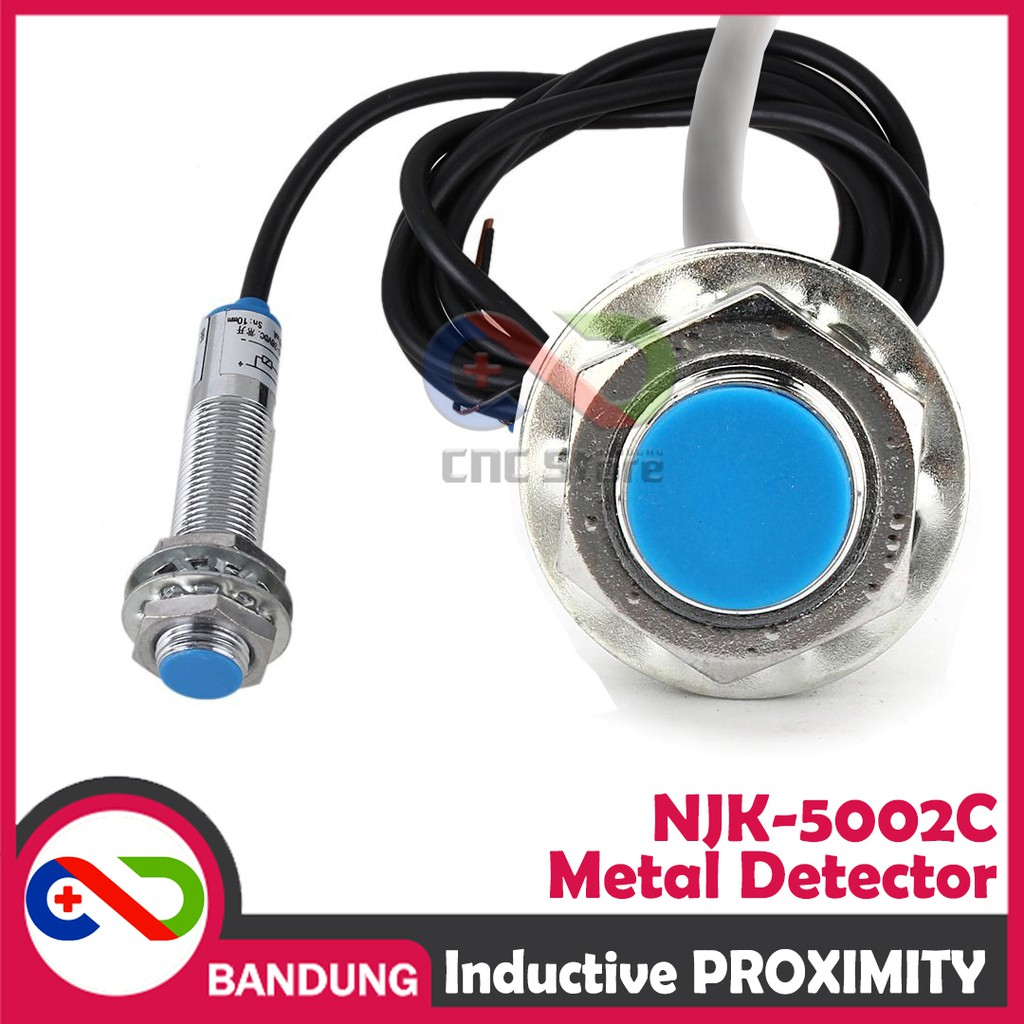

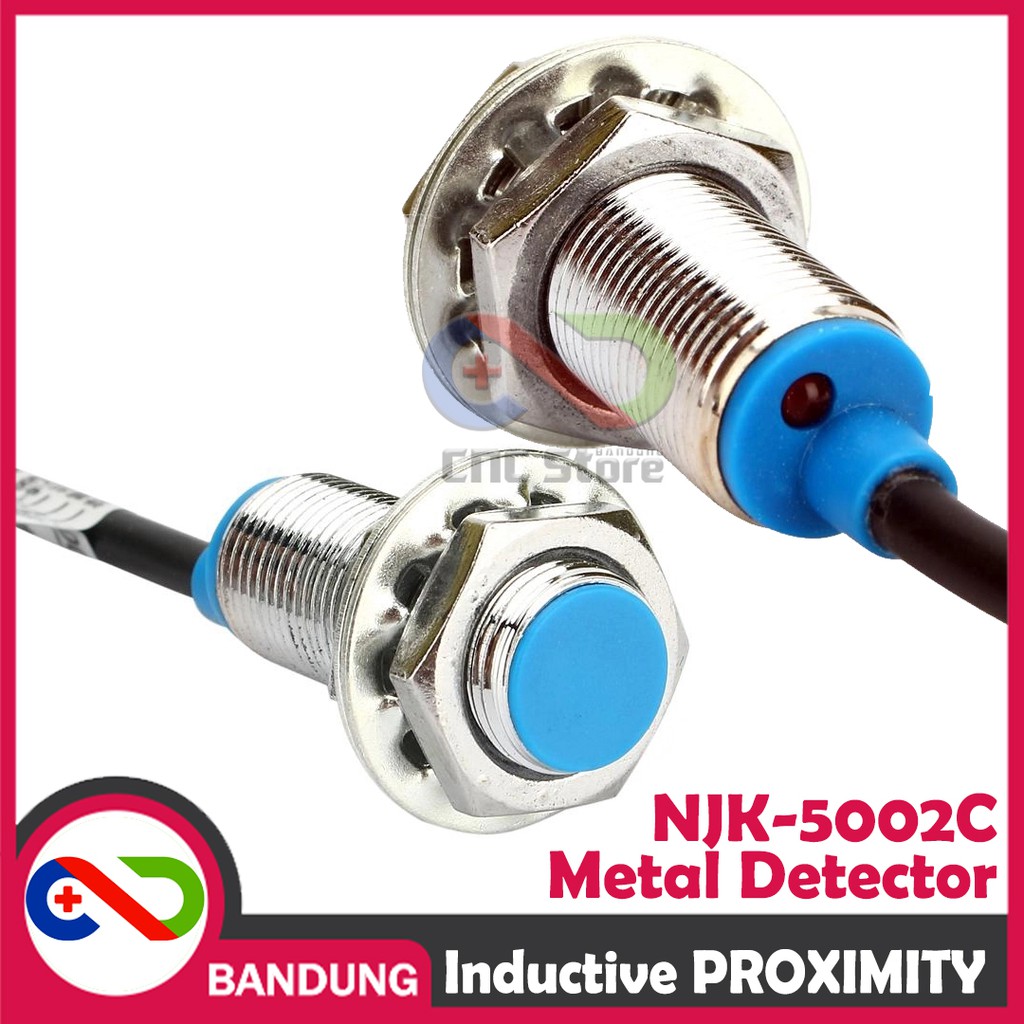

NJK-5002C HALL EFFECT PROXIMITY SWITCH MAGNETIC METAL DETECTOR SENSOR

Detail NJK-5002C HALL EFFECT PROXIMITY SWITCH MAGNETIC METAL DETECTOR SENSOR

SEN-0076
========

Deskripsi:
===================================
Selamat Datang di toko kita CNC STORE BANDUNG :))

NJK-5002C HALL EFFECT PROXIMITY SWITCH MAGNETIC METAL DETECTOR SENSOR, mungkin bagi sebagian orang sudah tidak asing lagi dengan proximity ini, yah sensor ini mudah sekali dijumpai di pabrik-pabrik, dan sering dipakai untuk Tugas Akhir anak Teknik Elektronika.

Sensor ini dapat mendeteksi logam dengan jarak 0-5mm, jadi buat akang teteh yang sedang bingung mencari sensor pendeteksi metal ini lah solusinya.

So, tunggu apalagi langsung aja di order. Happy Shopping :))

Spesifikasi:
===================================
Supply voltage 5-30VDC
Detection distance 10mm (effective detection distance 0-10mm)
Load current 150MA (no more than)

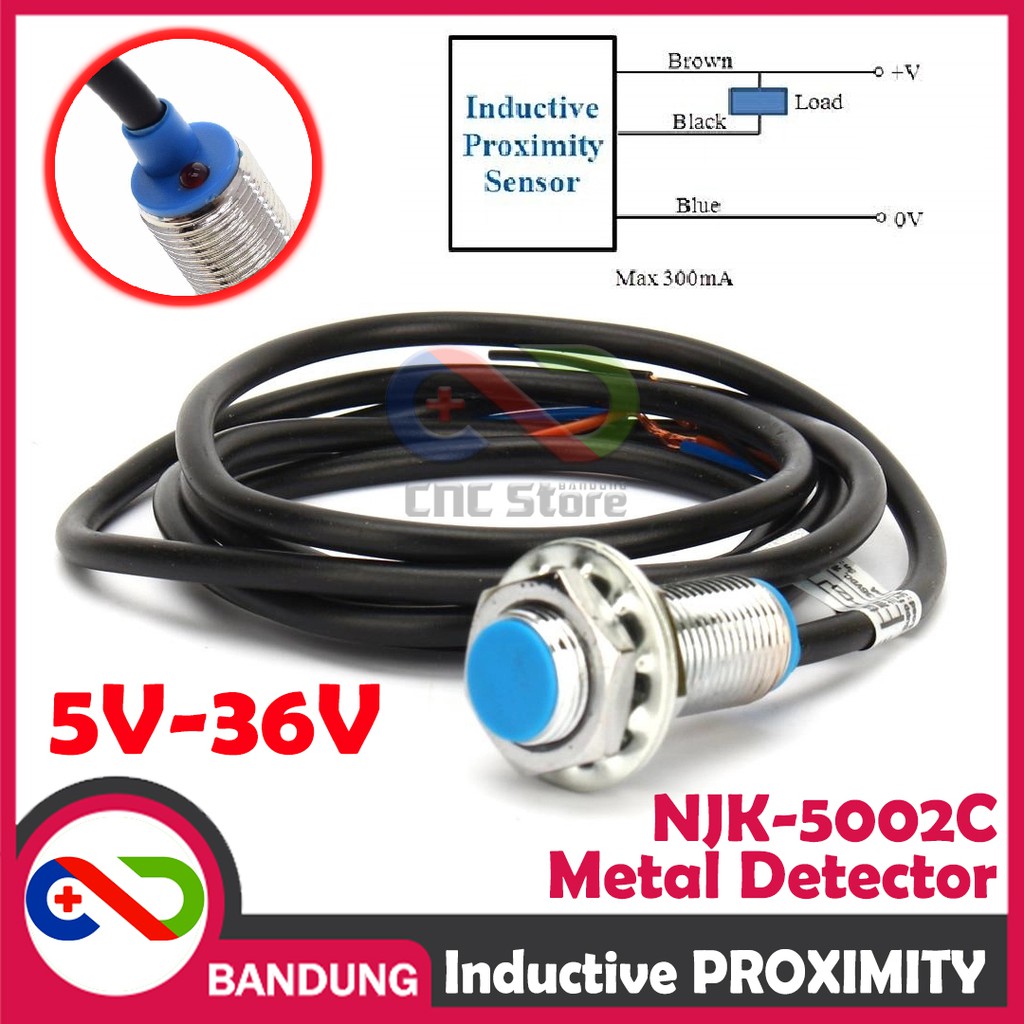

Output form NPN three lines
Output state normally open (NO)
Detect objects metal material
Product Material Metal parts: Copper plastic components: PBT
External leads 1.2 m (standard, others according to customer requirements)
Output indication LED (red)
Form Factor Diameter: 12MM thread length: 32MM Overall Length: 37MM

Produk Terkait:
===================================
Untuk sensor proximity dan sensor lainnya bisa di cek etalase kita yah akang teteh :))
https://shopee.co.id/shop/62956347/search?page=0&shopCollection=19513216
Paket:
===================================
1 x NJK-5002C HALL EFFECT PROXIMITY SWITCH MAGNETIC METAL DETECTOR SENSOR

UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
