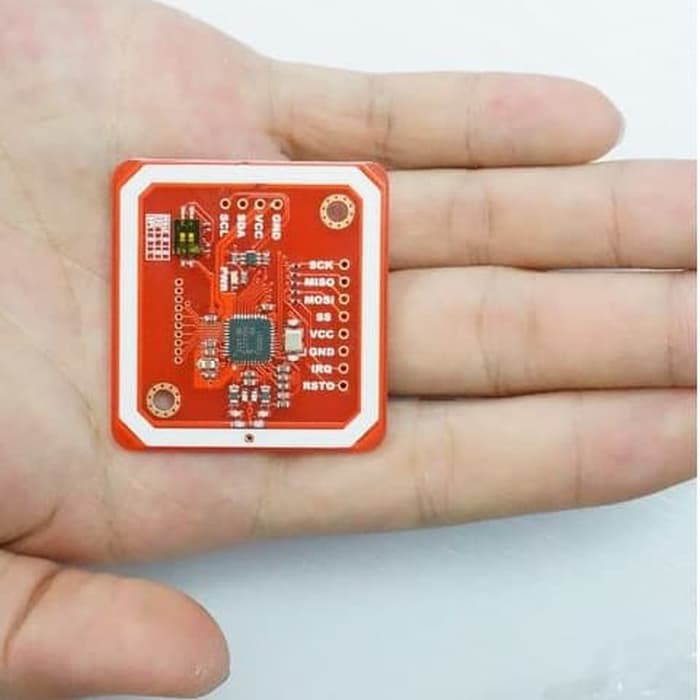

NFC RFID PN532 Module V3 Kits Writer Reader Android Phone For Arduino

Detail NFC RFID PN532 Module V3 Kits Writer Reader Android Phone For Arduino

NFC RFID PN532 Module V3 Kits Writer Reader Android Phone For Arduino
Features:
1.Gilt PCB and Small dimension and easy to embed into your project
2.Support I2C.SPI and HSU (High Speed UART), Change between those modes

3.Supporting RFID reading and writing
Supporting P2P communication with peers
Supporting NFC with for Android phone

4.Typical Operating Distance have been updated to 5cm~7cm reading distance
5.Work in NFC Mode or RFID reader/writer Mode

6.RFID reader/writer supports:
1) 1k, 4k, Ultralight, and DesFire cards
2) ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
3) Innovision Jewel cards such as IRT5001 card
4) FeliCa cards such as RCS_860 and RCS_854

7.Plug and play, for compatible
8.Built in PCB Antenna, with 4cm~6cm communication distance
9.On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
10.Work as RFID reader/writer
11.Work as 1443-A card or a virtual card
12.Exchange data with other NFC devices such as smartphone

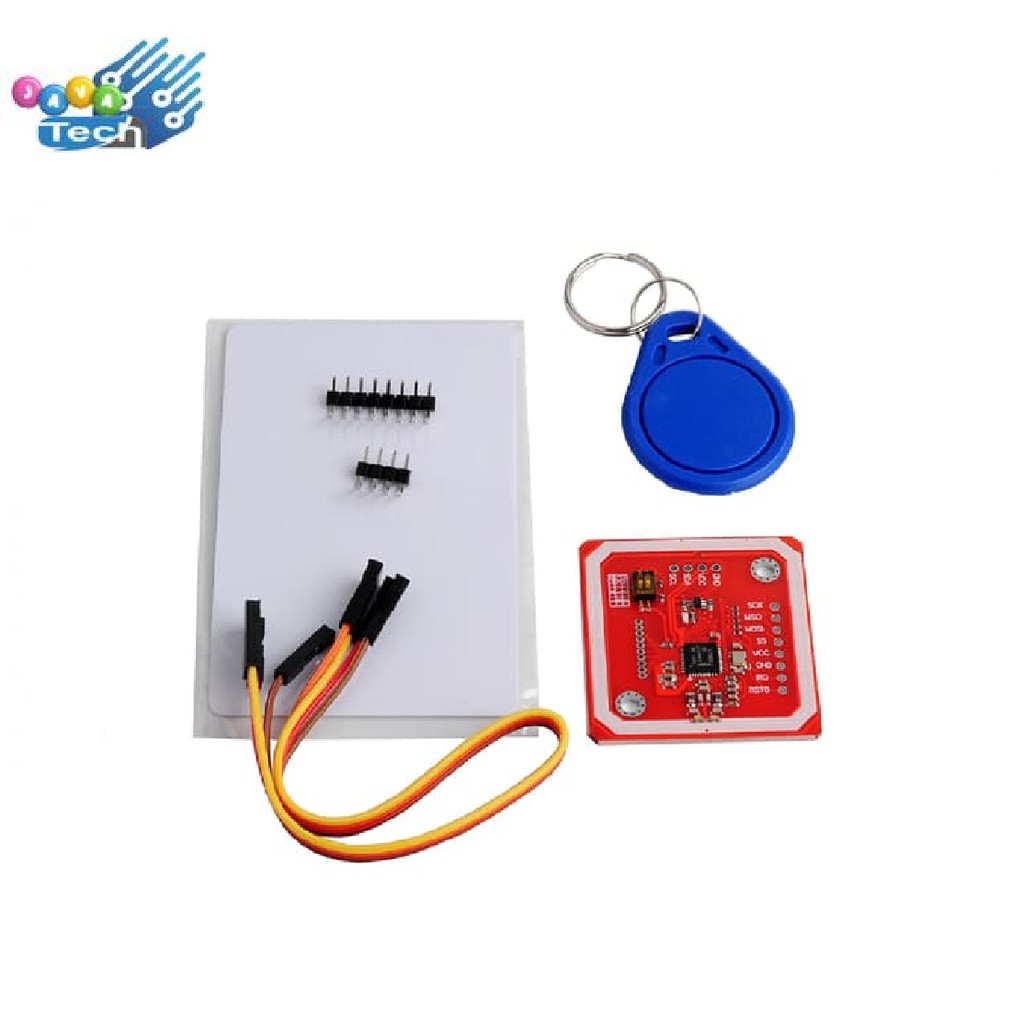

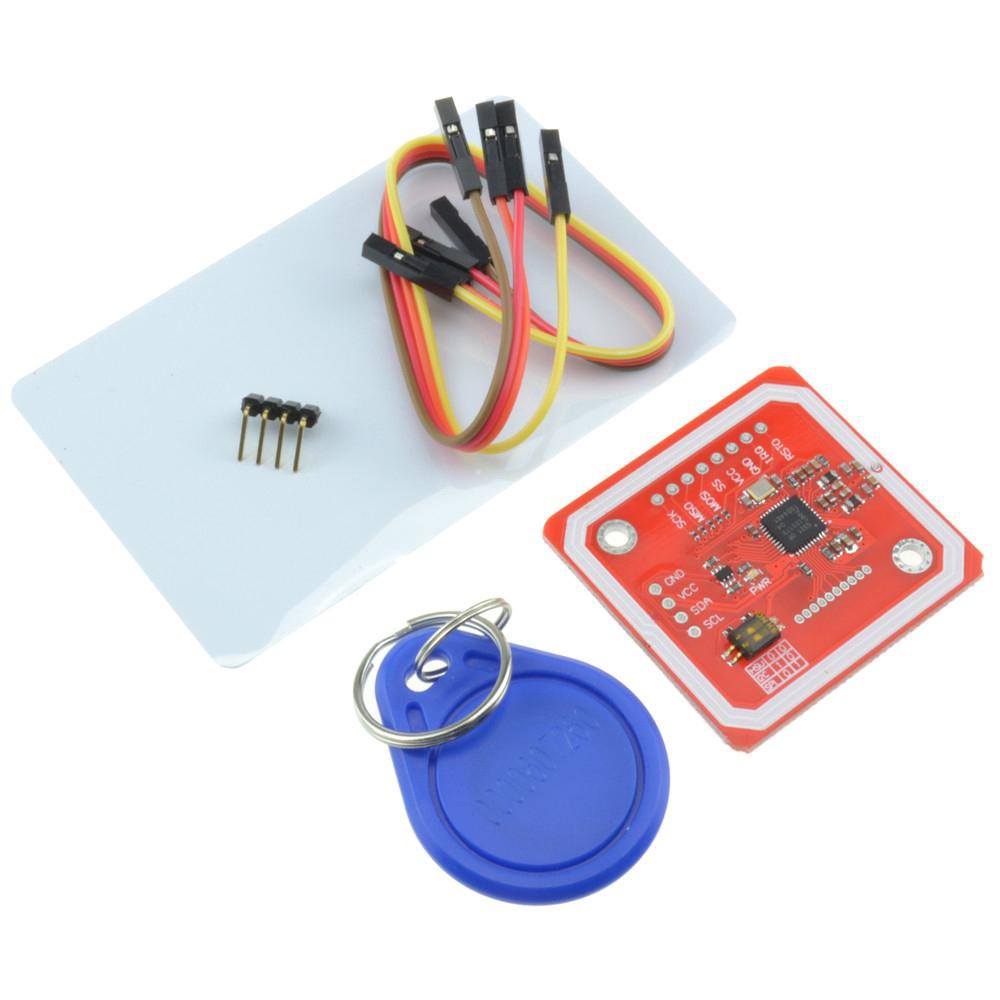

Package Included:
1 x*PN532 NFC RFID Module
1x 2.54mm spacing 4pin Cable
1x White Card
1x Key Card
1x12P bended male pins
