NF-633 MINI DISPLAYPORT - DISPLAY PORT - DP CABLE TESTER kabel mini DP

Detail NF-633 MINI DISPLAYPORT - DISPLAY PORT - DP CABLE TESTER kabel mini DP

JUAL : NF-633 MINI DISPLAYPORT - DISPLAY PORT - DP CABLE TESTER kabel mini DP

Alat Tester kabel yang di guna kan untuk memeriksa kabel Displayport besar dan mini Displayport
apakah kabel berfungsi atau tidak.

Main Features:
　 　 　 　
1. Check cable continuity for display port cable
2. Four display port and mini display port connectors are available for all types of cables　 　 　
3. There's a separate led to test if display port power (pin 20) is connected 　 　 　 　 　
4. The remote unit can be removed from the tester 　 　 　

Attention:

1.Don't connected high voltage lines to avoid burning out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

Tech Spec :

brand : Noyafa
Model : NF-633
Cables versions support :
Display Port Cable
Mini Display Port Cable
Display Port to Mini Display Port Cable

Support test : 19 pin to pin wiremap and shielding detection
Test interface of master unit
Displayport x1, Mini displayport x1

Test mode : Fast / slow scan / step by step
Test distance : Under 50 meters
Status Display : 19 leds and shield led on both master and remote unit
Beeper indication : Yes
Low battery indication : 6.0V
Power source : DC 9V (NEAD 1604/ 6F22) x1 (not included)
Environment : Operating:0 to 40 < 80% RH
Storage :-10 to 50 <70%RH
Dimensions
Master unit :103 x 66 x 27 mm
Remote unit : 103 x 35 x 27mm

isi paket :

1 x NF-633 Displayport cable Tester (main -remote)
1 x Bag
1 x Manual
Baterai tidak termasuk

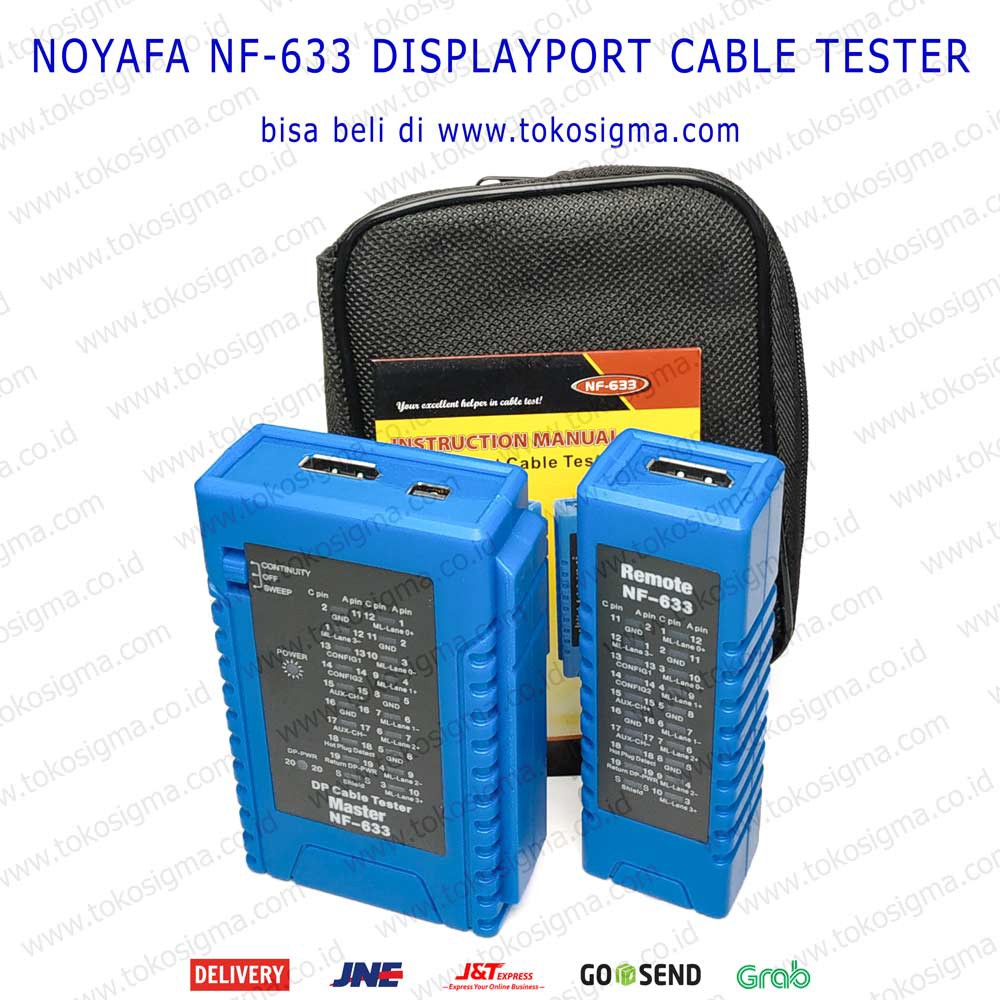

Gambar produk
