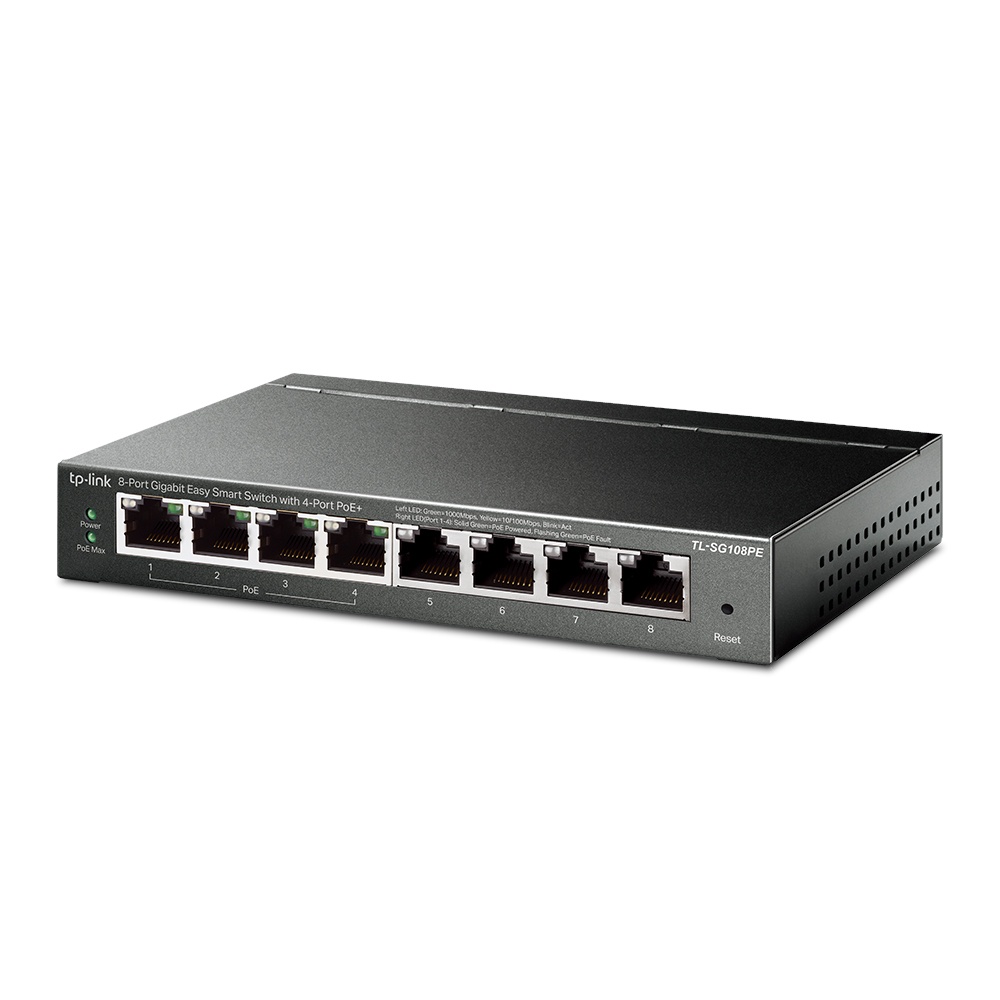

(New)Tp-link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Merek: TP-Link | Lihat selengkapnya produk Komputer & Aksesoris dari TP-Link
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > (New)Tp-link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail (New)Tp-link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Highlight:
♥8 10/100/1000Mbps RJ45 ports

♥Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable

♥Supports PoE power up to 55W for all PoE ports

♥Provides network monitoring, traffic prioritization and VLAN features

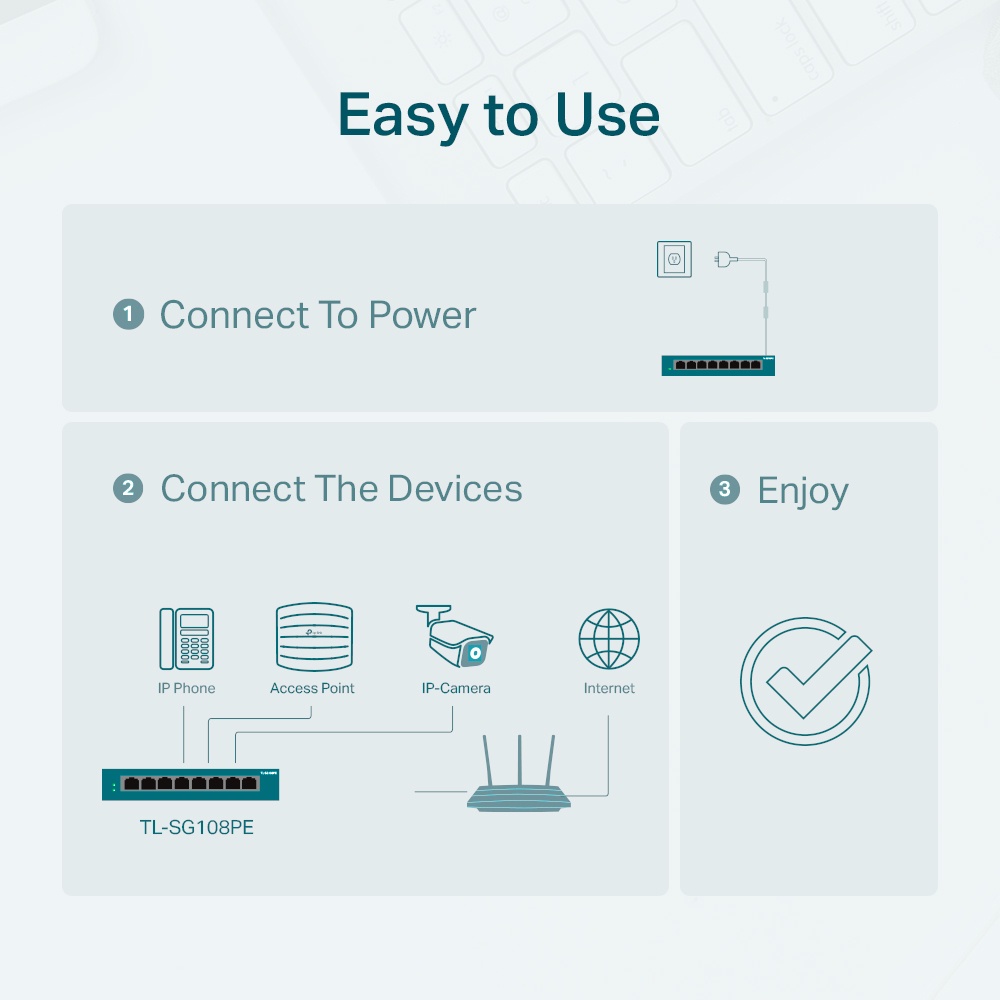

♥Simple network set-up on top of plug-and-play connectivity

♥Web-based user interface and Easy Smart Configuration Utility simplify configuration

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Eight 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless

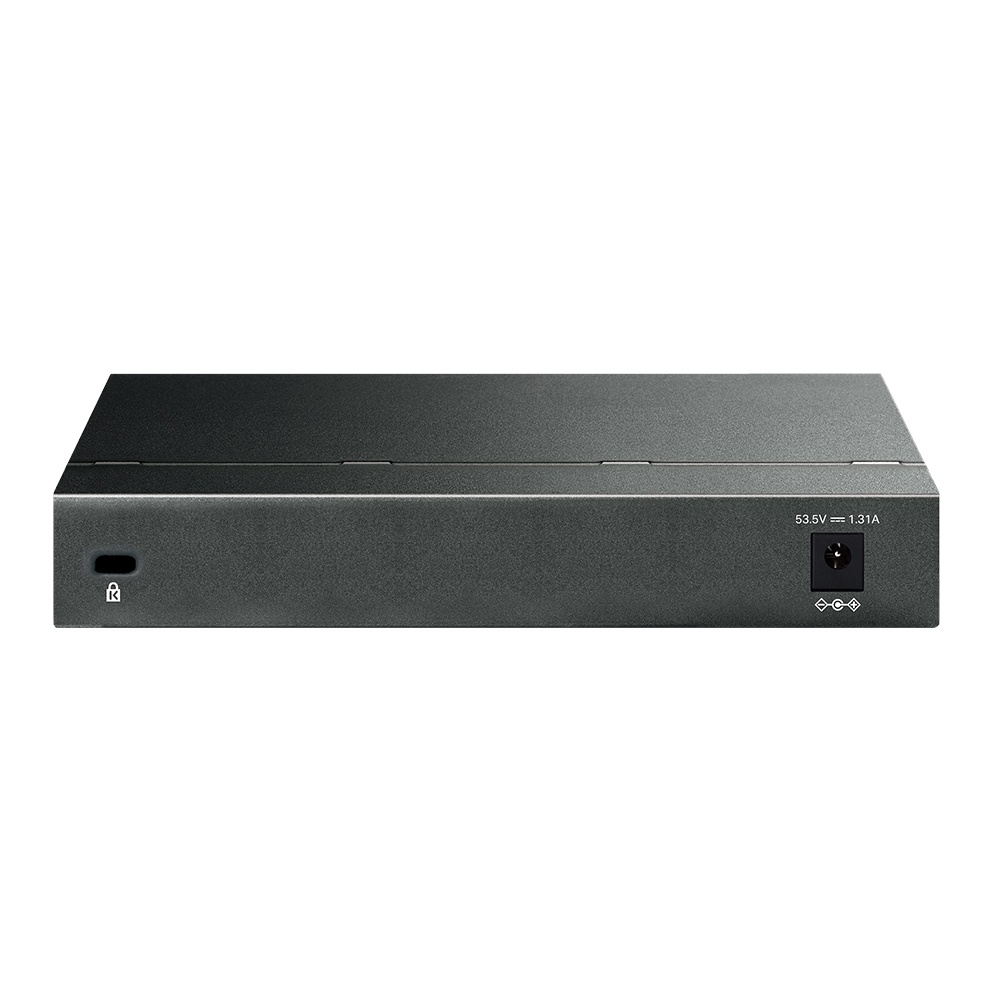

Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 64W
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption 5.41 W (220V/50Hz with no PD connected)
74.27 W (220V/50Hz with 64 W PD connected)
Max Heat Dissipation 18.45 BTU/h (with no PD connected)
253.26 BTU/h (with 64 W PD connected)
PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4 K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

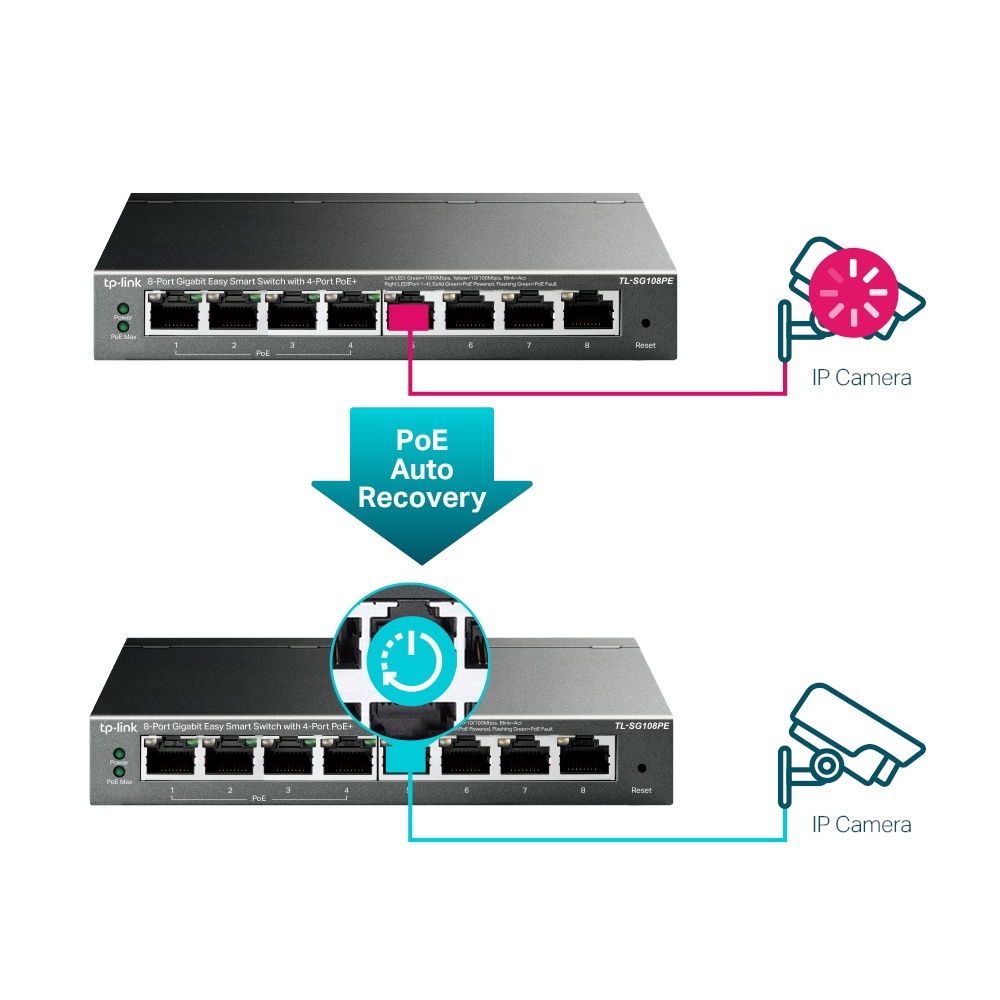

PoE Auto Recovery
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
