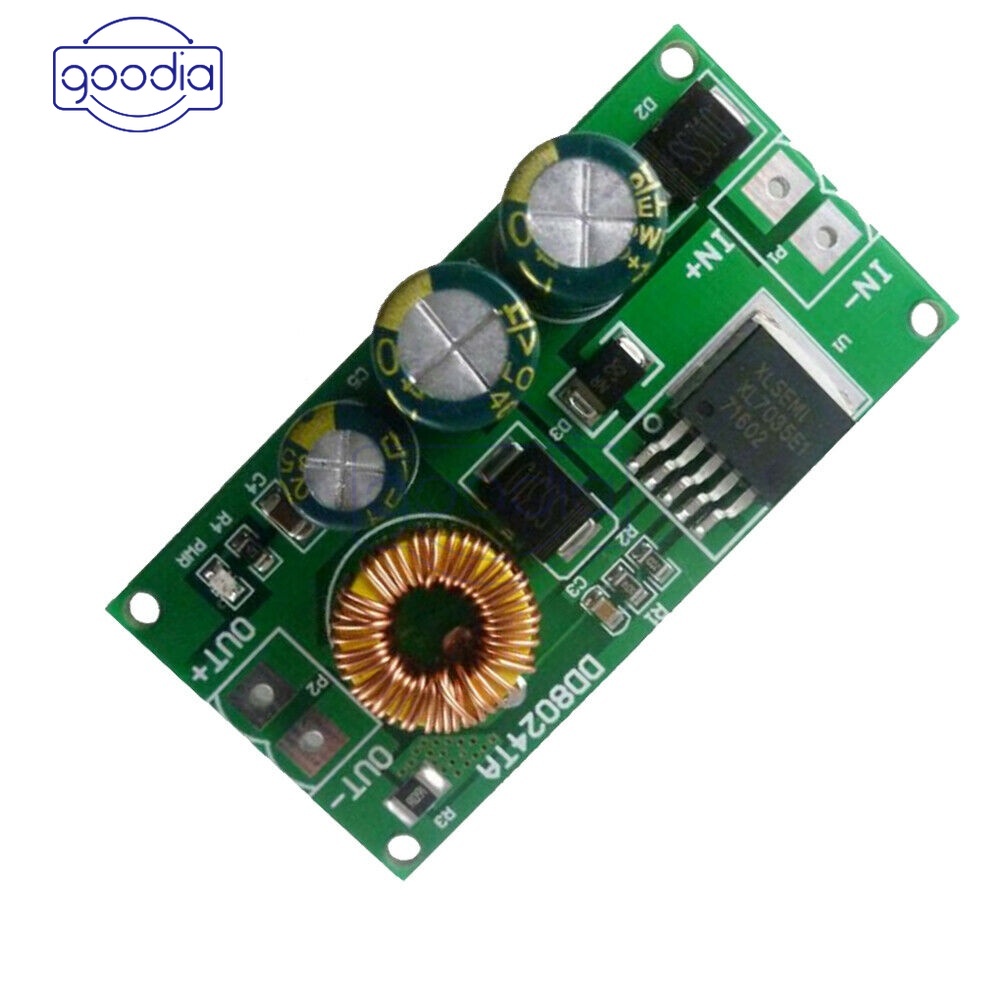

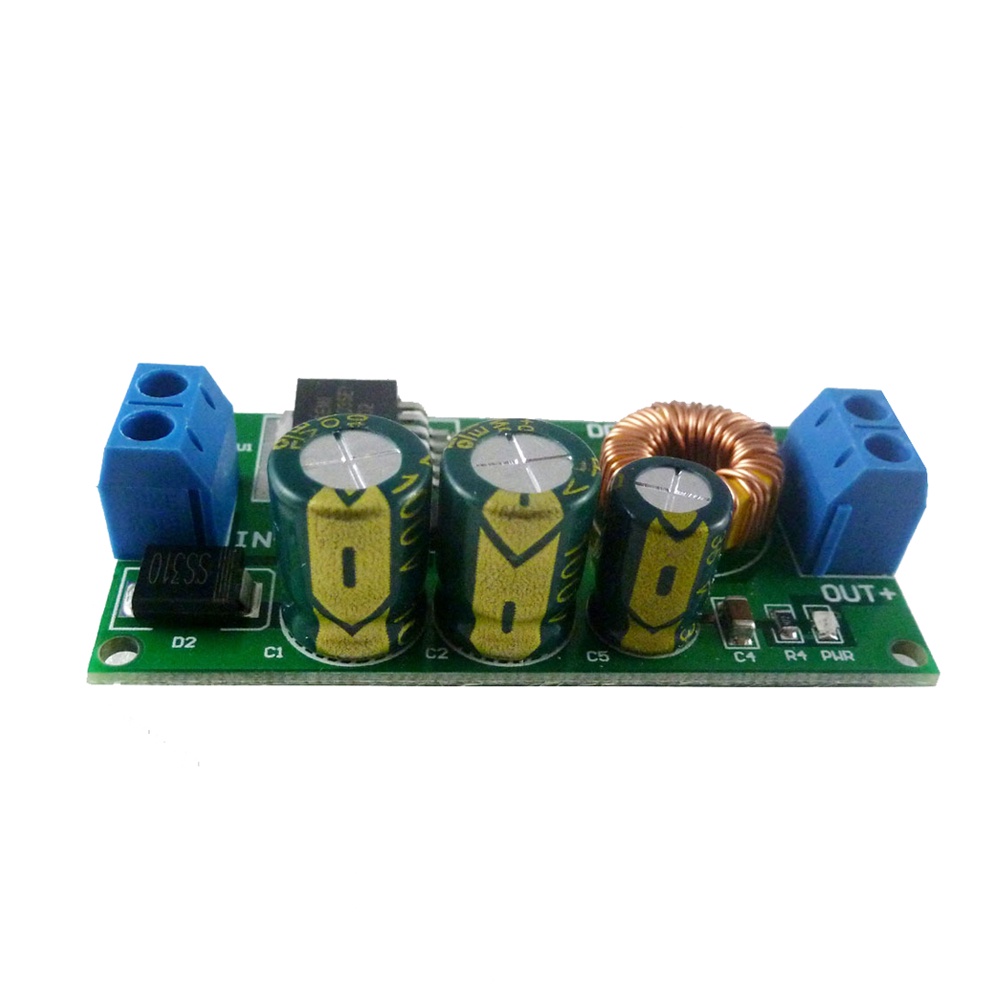

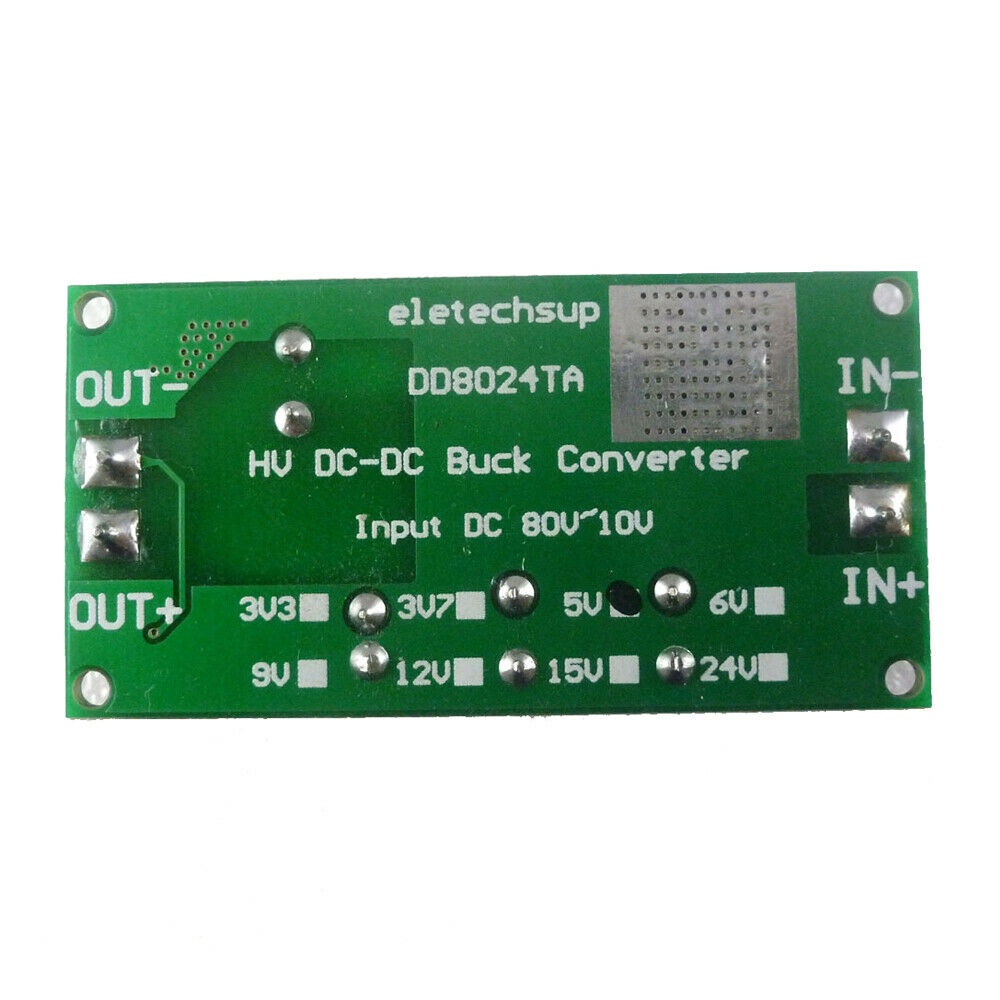

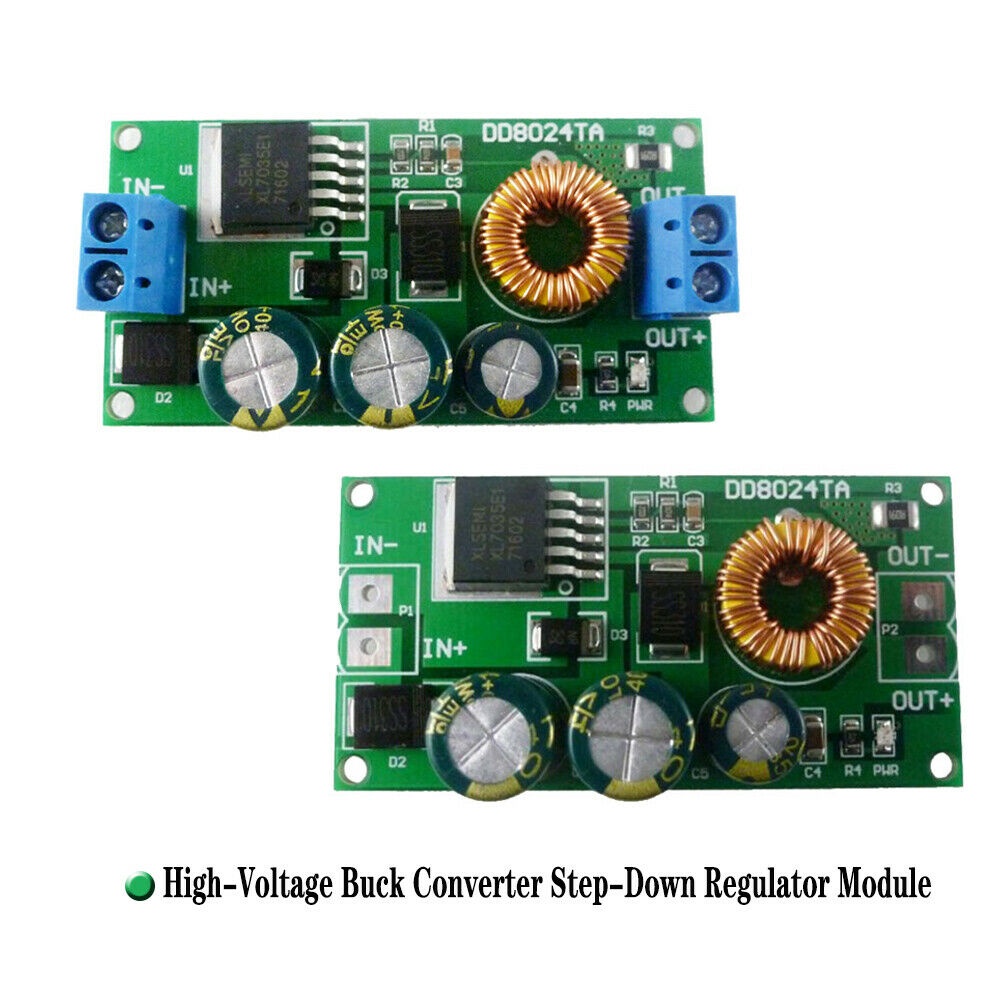

NEW Step-Down High-Voltage Buck Converter Regulator Module 10V~80V to 3.3/5/6/9/12V

Detail NEW Step-Down High-Voltage Buck Converter Regulator Module 10V~80V to 3.3/5/6/9/12V

3.3V :
Input voltage 10~80V,output 3.3V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g

5V :
Input voltage 10~80V,output 5V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g

6V :
Input voltage 10~80V,output 6V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g

9V :
Input voltage 10~80V,output 9V
Maximum output current 0.75A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g

12V :
Input voltage 14~80V,output 12V
Maximum output current 0.75A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g

15V :
Input voltage 17~80V,output 15V
Maximum output current 0.75A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g

Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
