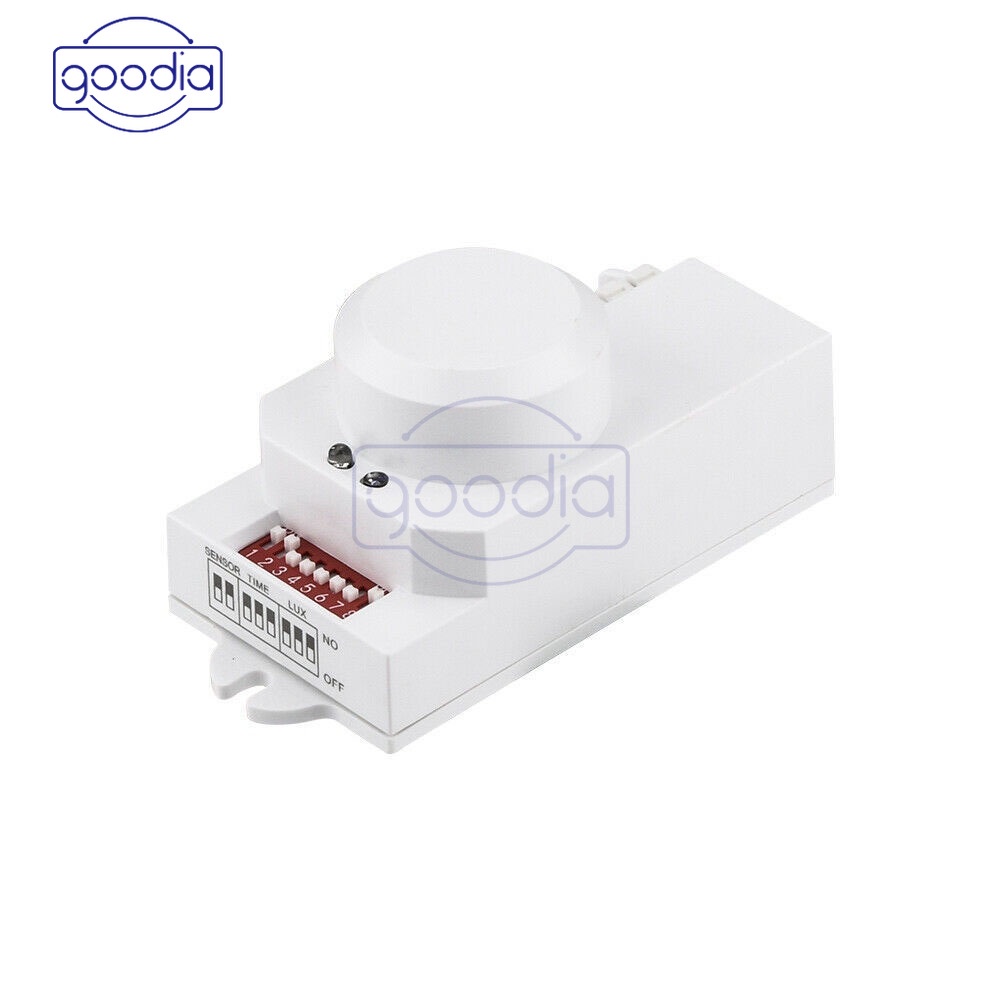

NEW Microwave Sensor Switch 5.8ghz HF AC85-250V LED 360° Radar Motion Body Sensing

Detail NEW Microwave Sensor Switch 5.8ghz HF AC85-250V LED 360° Radar Motion Body Sensing

Product Description:
1: Widely used
2: Strong anti-interference
3: Long sensing distance
4: Stable performance and high sensitivity

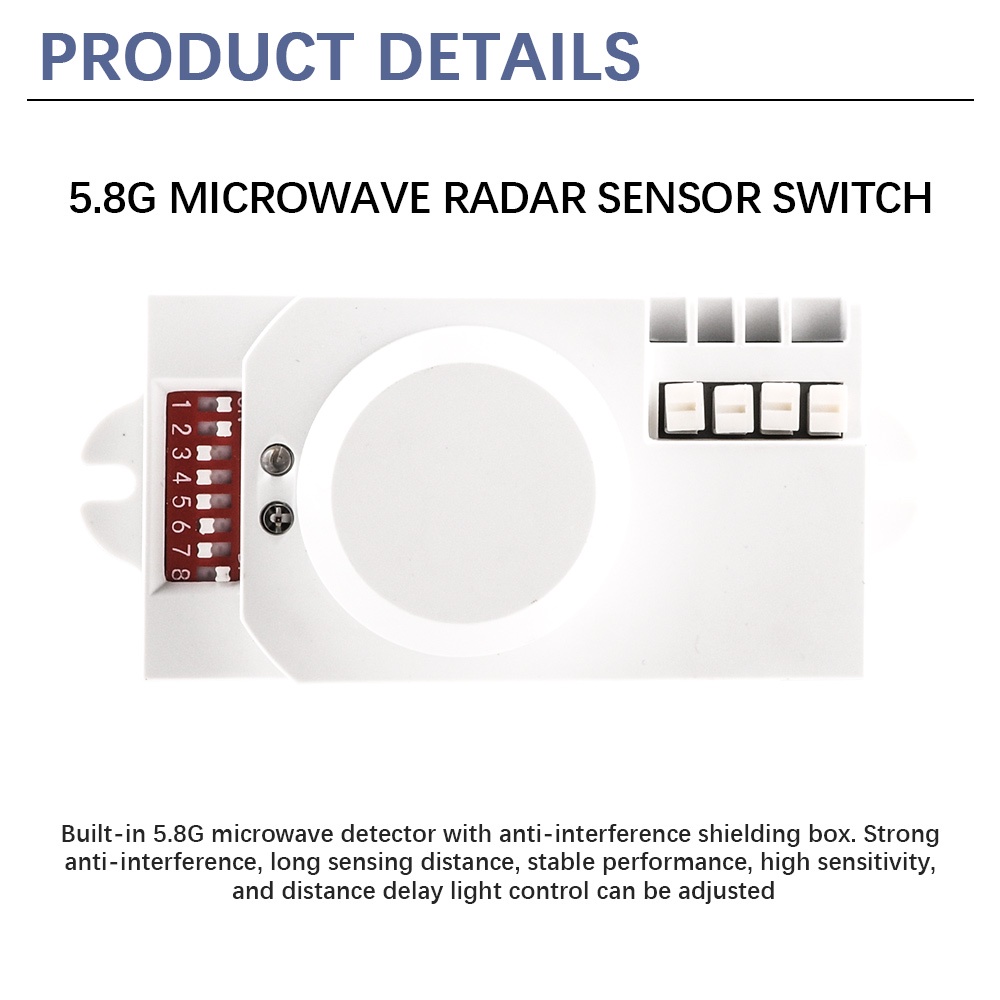

5: Built-in 5.8G microwave detector with anti-interference shielding box
A product overview:
When someone walks into the sensor and reaches the lighting demand, the microwave switch is automatically turned on, the load appliance starts to work, and the delay system is activated. As long as the human body does not leave the sensing area, the load appliance will continue to work. When the human body leaves the sensing area, the sensor starts to calculate the delay. When the delay ends, the sensor switch is automatically turned off, and the load appliance stops working. Truly, safe, convenient, intelligent, and energy-saving.

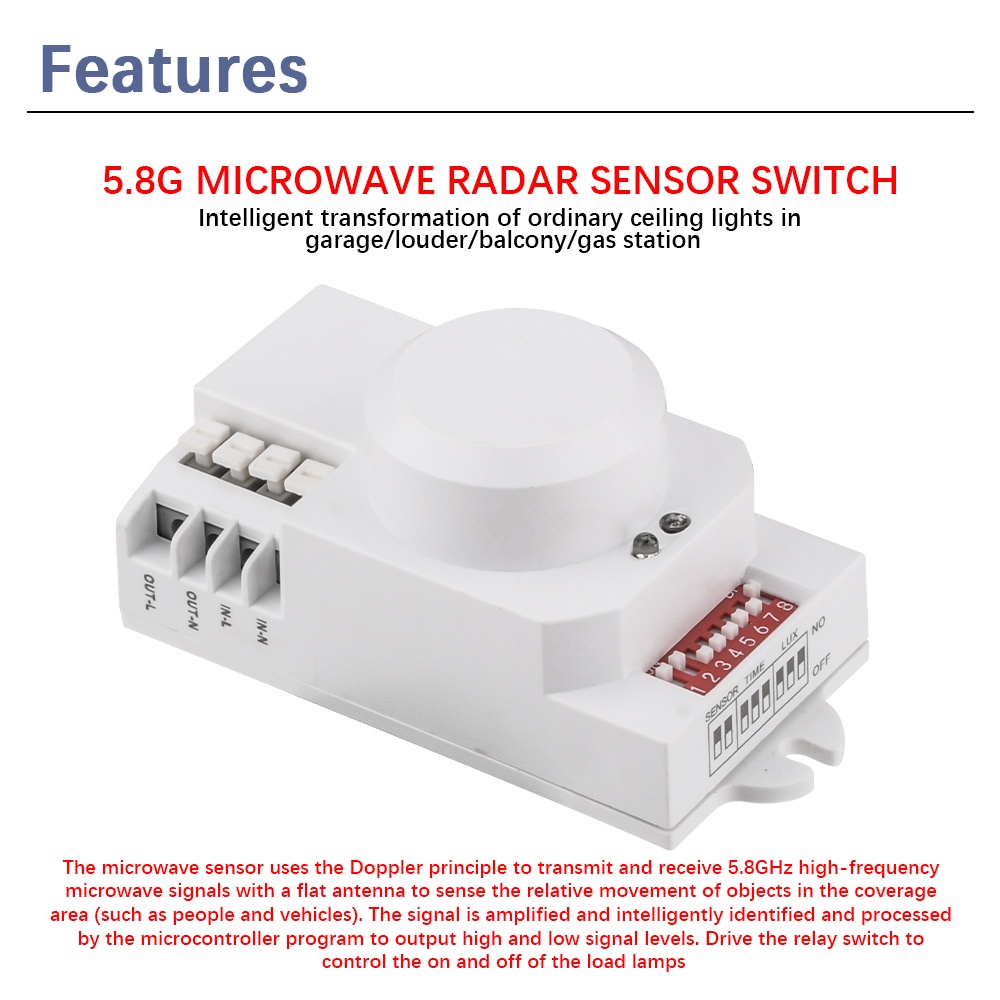

Product features:
1. Sensitive sensing, accurate identification of the movement of biological and non-biological bodies, to minimize the rate of misoperation.
2. Strong anti-interference: 5.8GHz working frequency is adopted, which is less affected by natural external factors, and its performance is stable and reliable.
3. Automatic metering: Automatically identify the strength of the ambient light, and the light will turn on when the lighting requirements are reached and there are people. Otherwise it will not light up.
4. Fully automatic induction: automatically turn on the light after sensing a person, when the person comes, the light is on, and the light is off, safe and energy-saving, free from external influences such as sound and objects.

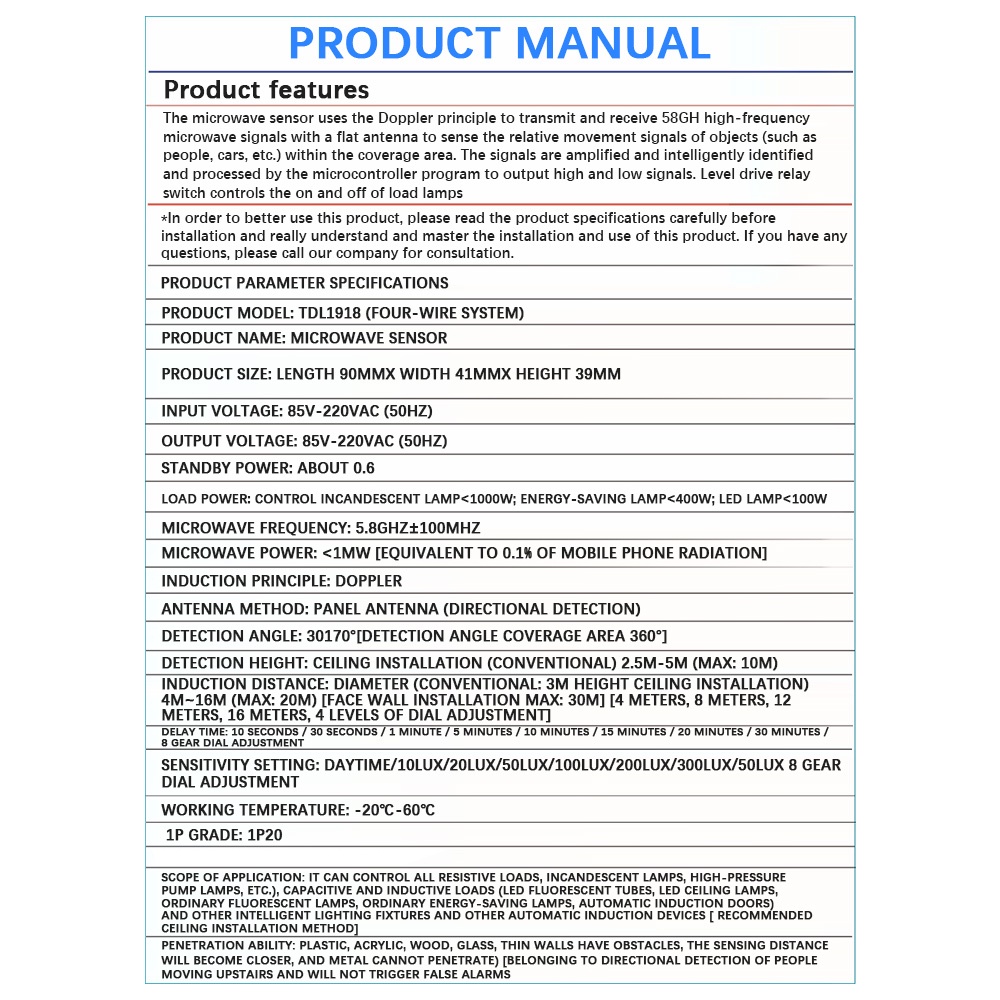

Three technical parameters:

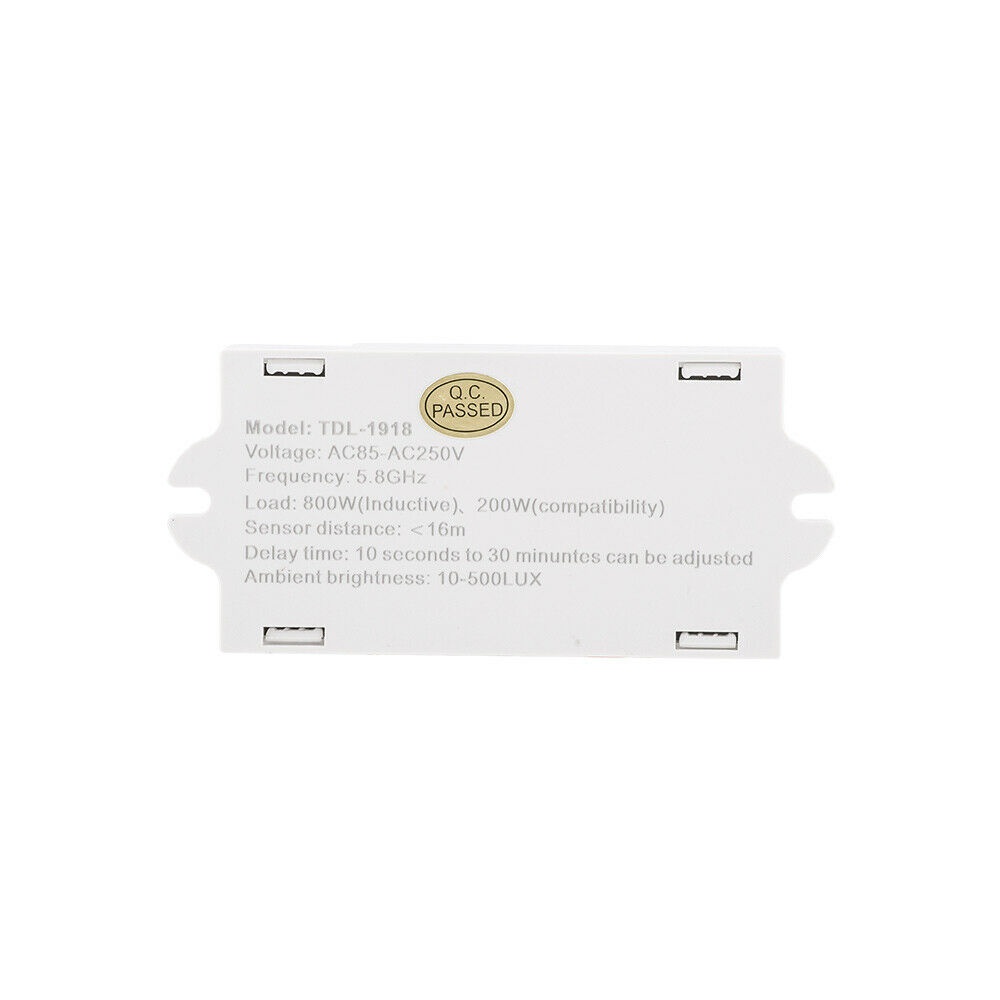

Product model: TDL-1918
Working voltage: AC85-250V
Standby power consumption: 70mW
Transmitting power: <10mA
Working frequency: 5.8GHz

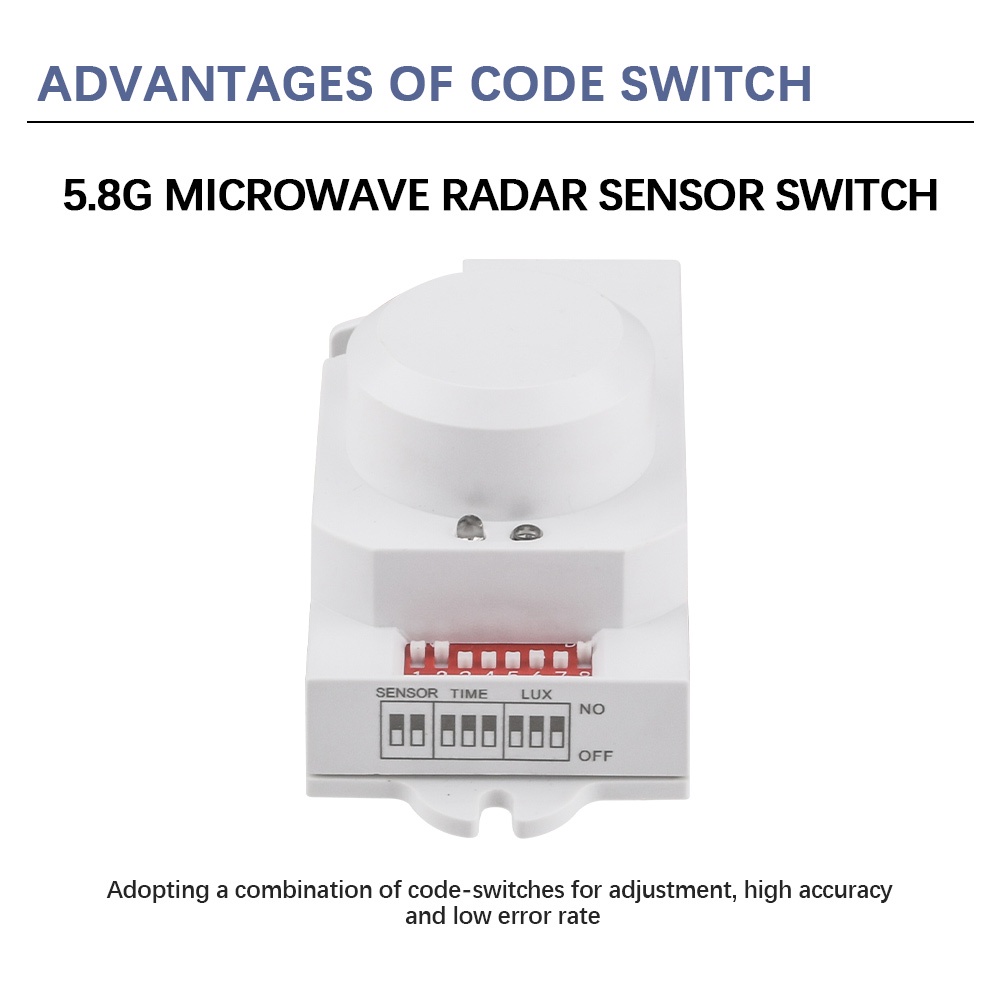

Induction distance: 2-16 meters (adjustable)
Working delay: 10 seconds to 30 minutes adjustable
Light control illuminance: 5-500LUX adjustable
Load power: 800W (resistive load) 200W (capacitive load)
Four matters needing attention:

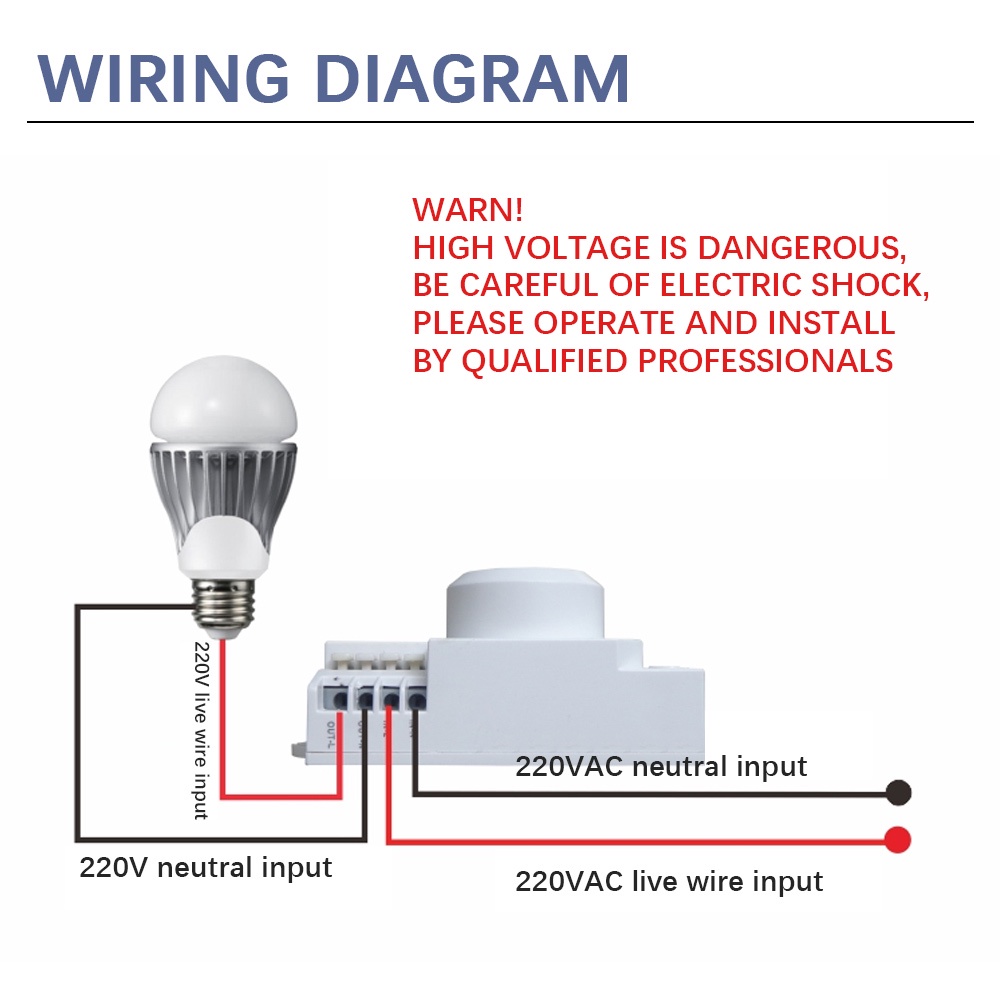

1. When installing, please disconnect the power and install again to avoid danger
2. The product is not waterproof, please pay attention to moisture and waterproof.
3. The microwave induction angle is 360 degrees, please pay attention to the installation method.
4. Non-professionals do not disassemble or assemble the high voltage inside the product, otherwise, you will be responsible for the consequences.

Package Included:
1*Microwave radar switch
