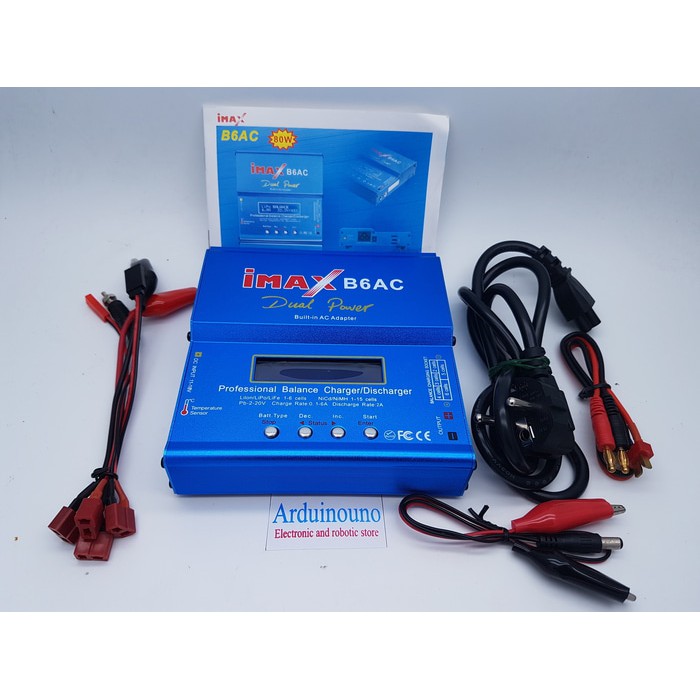

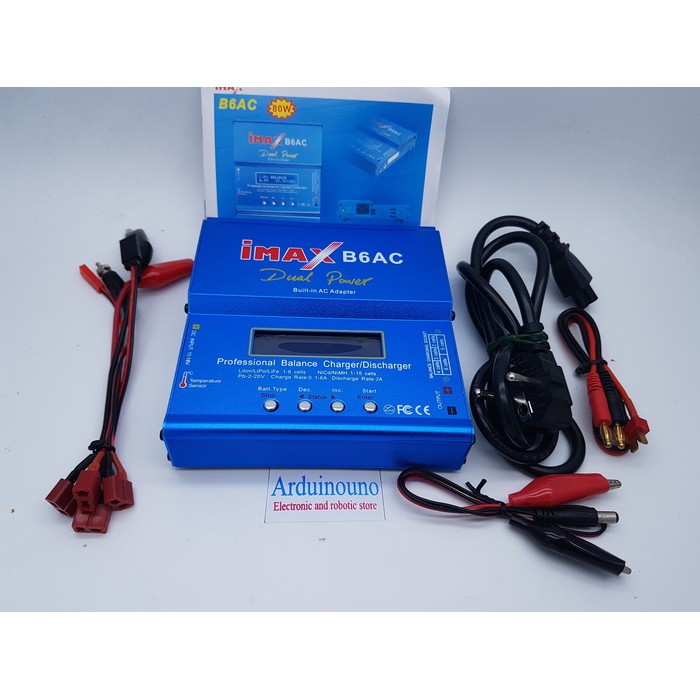

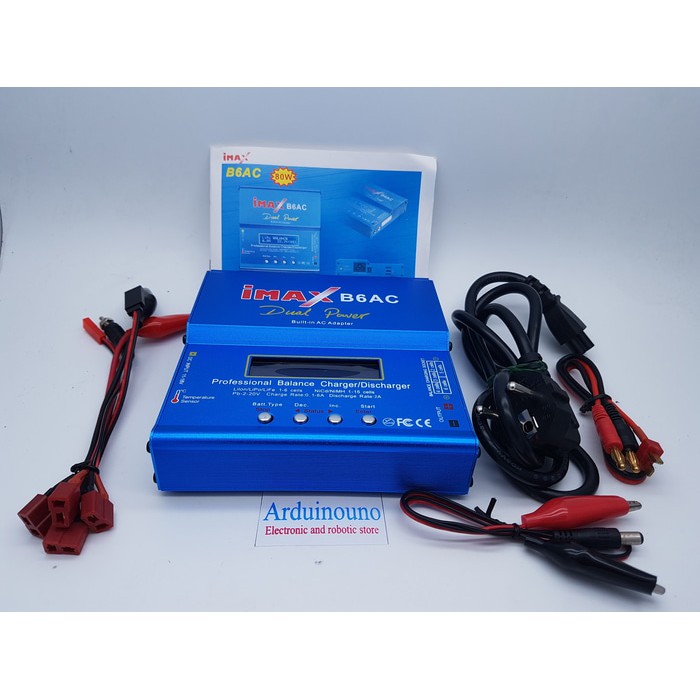

New iMAX B6AC Lipo NiMH 3S RC Battery Balance Charger T-PLUG

Detail New iMAX B6AC Lipo NiMH 3S RC Battery Balance Charger T-PLUG

Deskripsi Produk
New iMAX B6AC Lipo NiMH 3S RC Battery Balance Charger


This item is for a rapid charger/discharger for all kind of battery of RC hobby,
with built in balancer for lipo battery. Battery that can be charged by this charger,Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid
High-power and high-performance circuit
Microprocessor controlled
Maximen safety: Delta-peak sensitivity, Capacity limit, processing time limit,
tempreture limit, input power monitor
Monitoring the voltage of individual cell
Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells
Dual Power, built-in AC adapter
UndefinedLarge range of charge currents
Store function, allows safe storage current, and data storage (Store up to 5
packs in memory)
Battery break in and cycling
Built-in temperature sensor
Separate voltage detector for balance charge mode.



Specification:

Color: Bright blue
Oeration voltage range : DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz
Circuit power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. charge power 50W
Max. discharge power 5W
Charge current range : 0.1~5.0A
Discharge current range : 0.1~1.0A
Current drain for balancing Li-Po : 300mAh/cell
NiCd / NiMH battery cell count : 1~15 cell
Li-Ion / Polymer cell count : 1~6 series
Pb battery voltage : 2V~20V
Weight : 546g (Net Weight)
Dimensions : 136 x 141*34mm
Package weight: 778g



Package Content:

1 x IMAX B6AC LiPo battery balance charger (Built in Power Supply)
1 x English manual
