NEW DC 5-24V 5014T Infrared Hand Sweep Switch And 5014M Infrared Proximity Switch 5A

Detail NEW DC 5-24V 5014T Infrared Hand Sweep Switch And 5014M Infrared Proximity Switch 5A

5014T
Product selling point
1: Widely used
2: Simple to use
3: Small appearance, easy to install
4: Fixed bracket for exposed installation/open hole concealed installation, choose one of the two
5: Sweep to turn on the light and then swipe to turn off the light

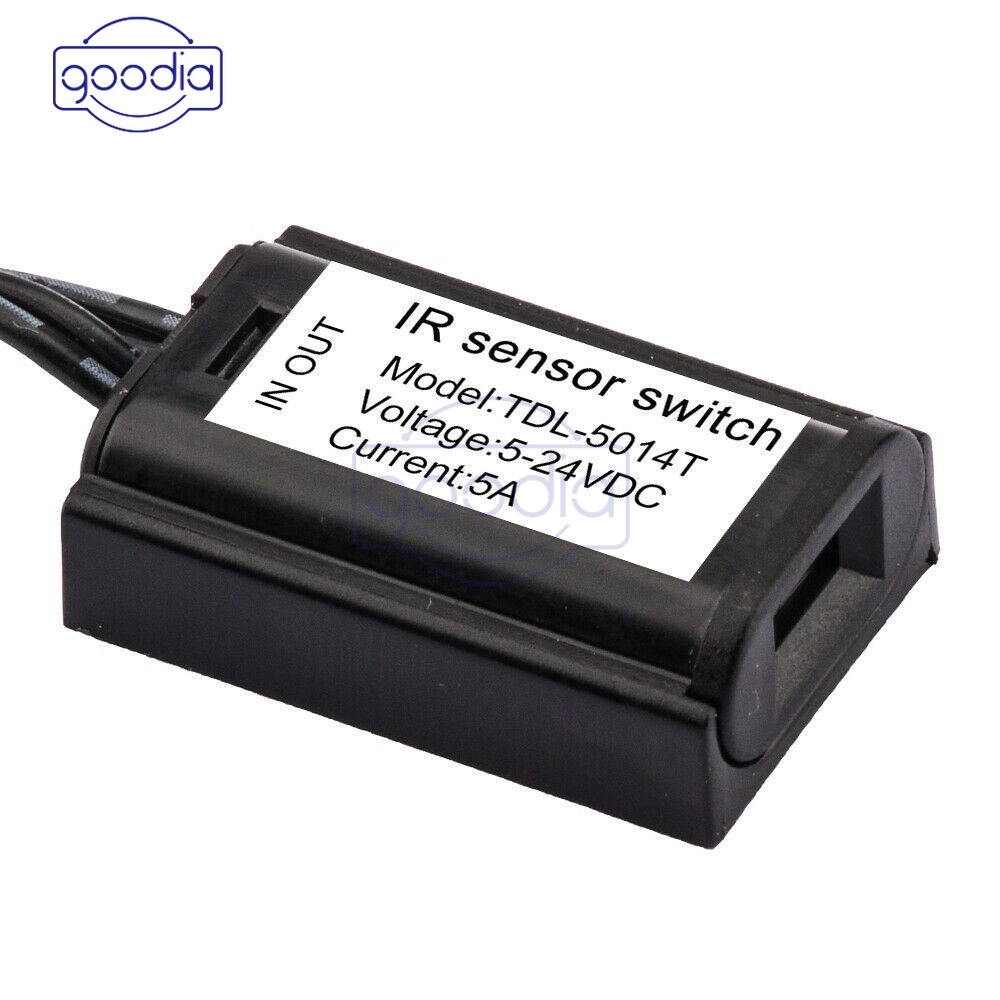

【Product Model】TDL-5014-T
【Product name】infrared hand sweep switch
【Function description] Sweep the light on and then swipe off the light
【Working voltage】5V-24VDC
【Load capacity】5A(12V/60W)
【Quiet current】<5mA
【Control Mode】MOS tube
【Induction distance] 5-8 cm

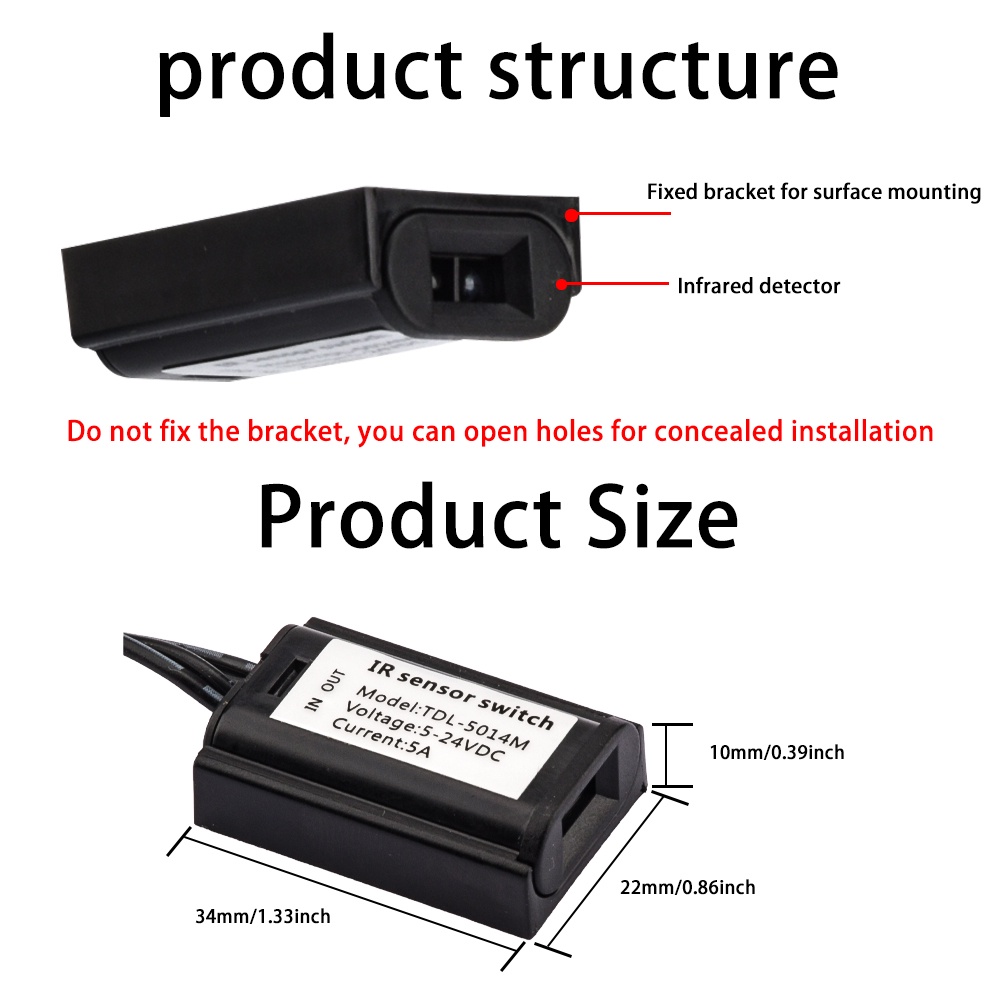

【Product size】34X22X10mm
【Finished product net weight】 45.5 grams
【Connecting cable length】1.5 meters
【Scope of application】LED strip lights with smart hand sweep control for wardrobes, wine cabinets, shoe cabinets, etc.
【Installation method】Fixed bracket surface installation/open hole concealed installation, choose one of the two


Checklist

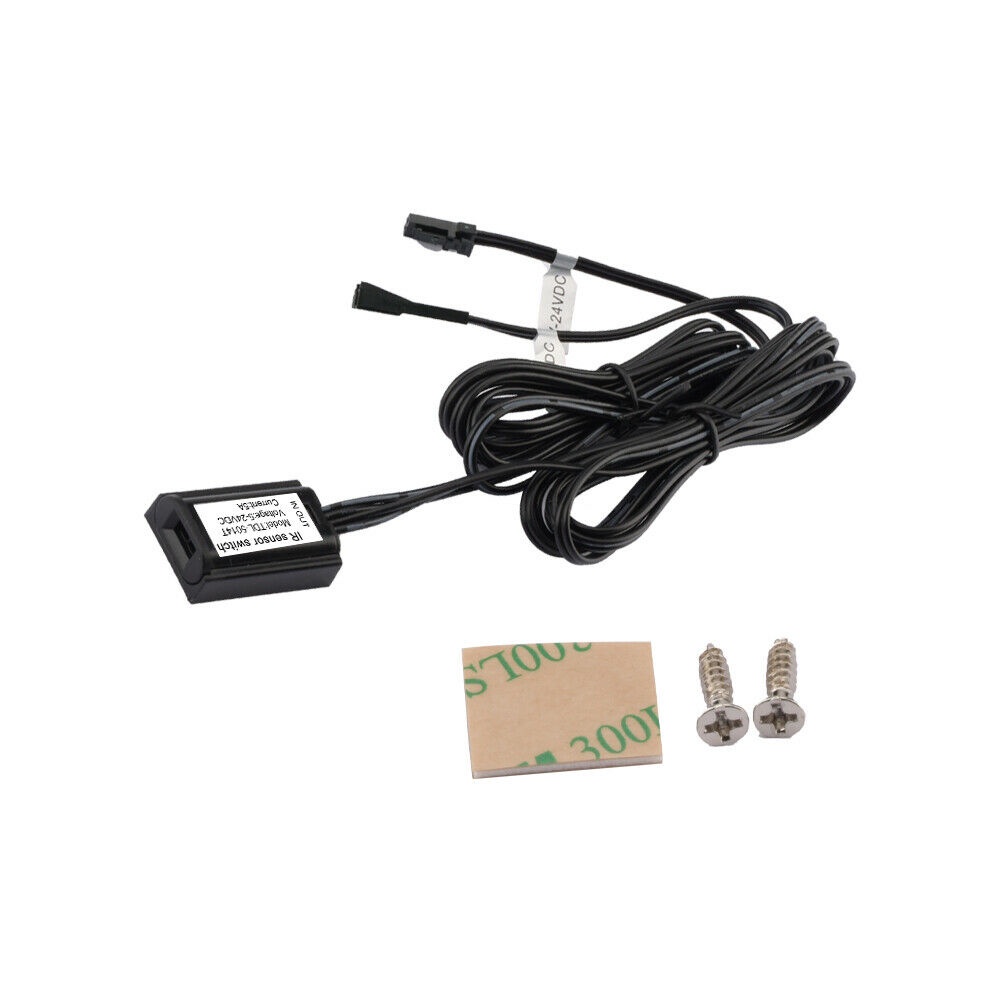

1*Infrared hand sweep switch

5014M

Product selling point
1: Widely used
2: Simple to use
3: Small appearance, easy to install
4: Fixed bracket for exposed installation/open hole concealed installation, choose one of the two
5: Lights on when the door is opened, lights off when the door is closed

【Product Model】TDL-5014-M
【Product name】Infrared proximity switch

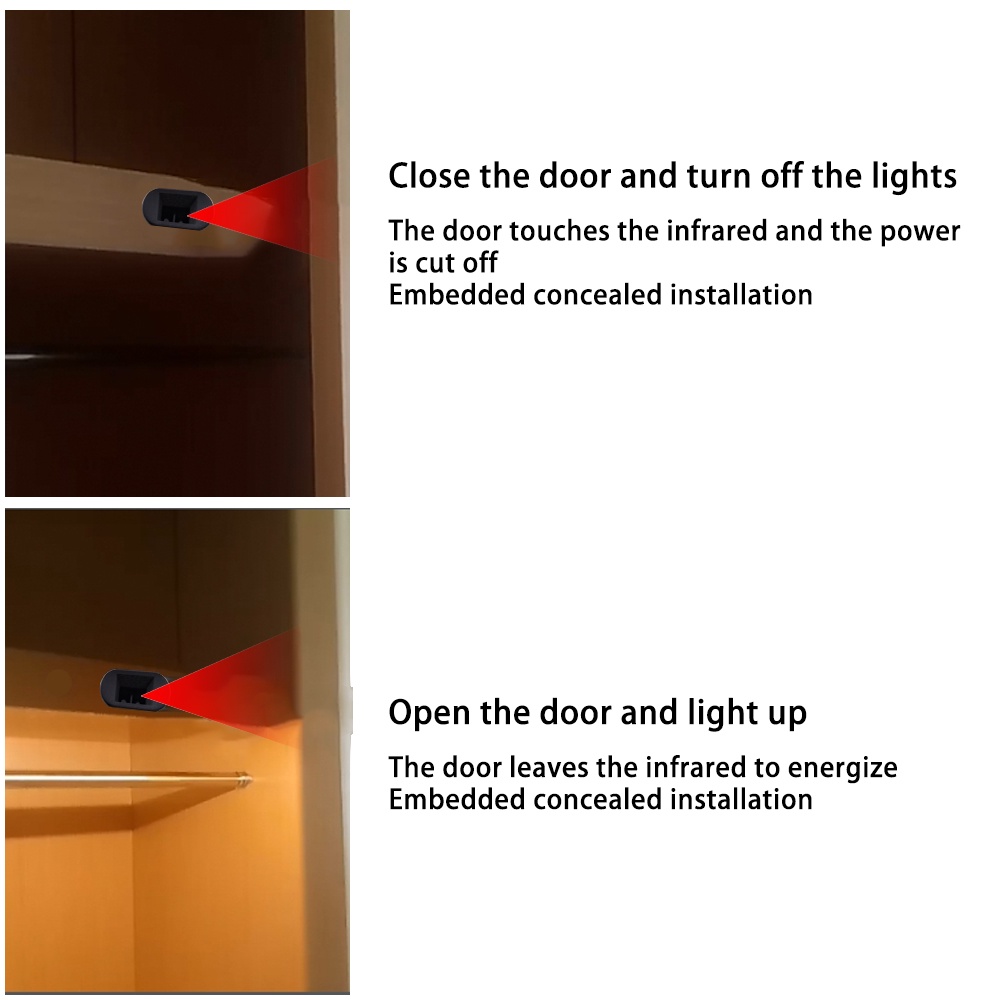

【Function description】Open the door and turn on the light, close the door and turn off the light
【Working voltage】5V-24VDC
【Load capacity】5A(12V/60W)
【Quiet current】<5mA
【Control Mode】MOS tube
【Induction distance】 5-8 cm
【Product size】 34X22X10mm [Finished product net weight] 45.5 grams
【Connecting cable length】 1.5 meters
【Scope of application】LED strip lights with intelligent control for wardrobes, wine cabinets, shoe cabinets, etc.

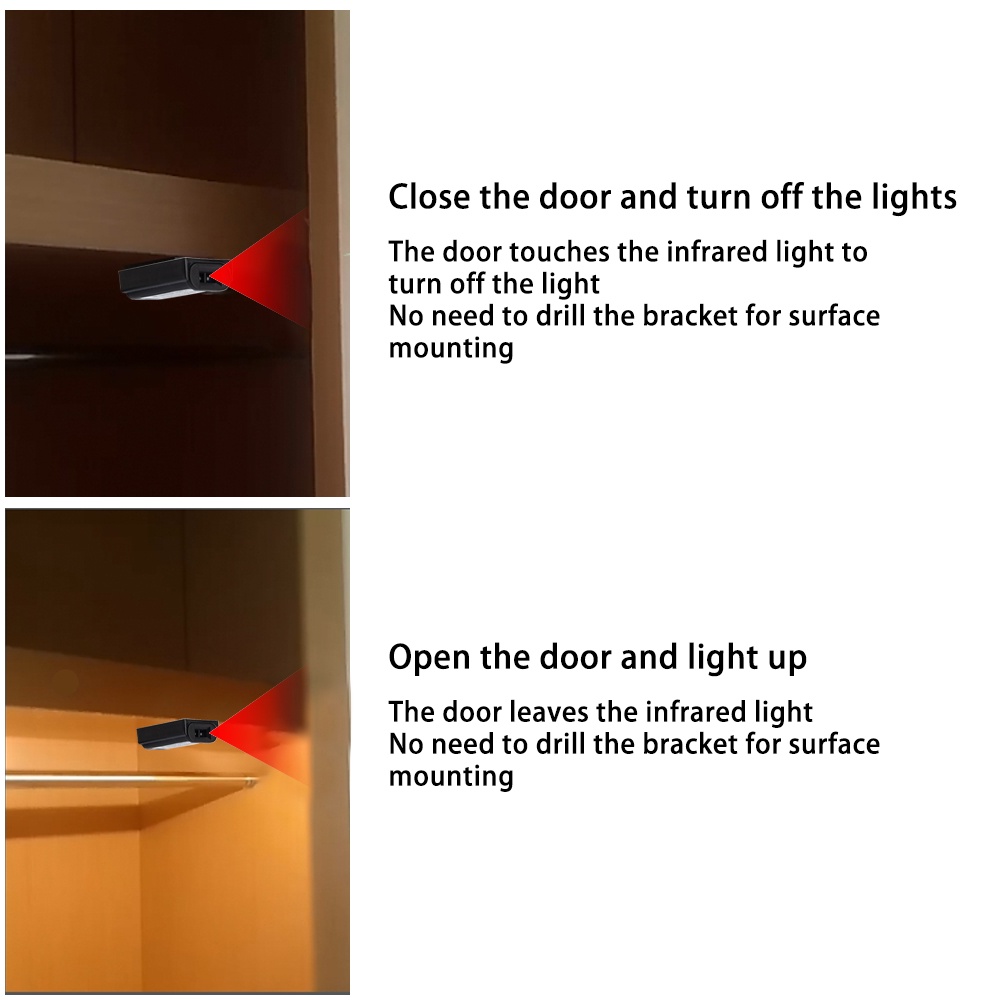

【Installation method】Fixed bracket surface installation/open hole concealed installation, choose one of the two

Checklist
1*Infrared proximity switch
