NEW AWG Solder Sleeve Heat Shrink Butt Wire Splice Terminal Connector Waterproof

Detail NEW AWG Solder Sleeve Heat Shrink Butt Wire Splice Terminal Connector Waterproof

100PCS Multicolor

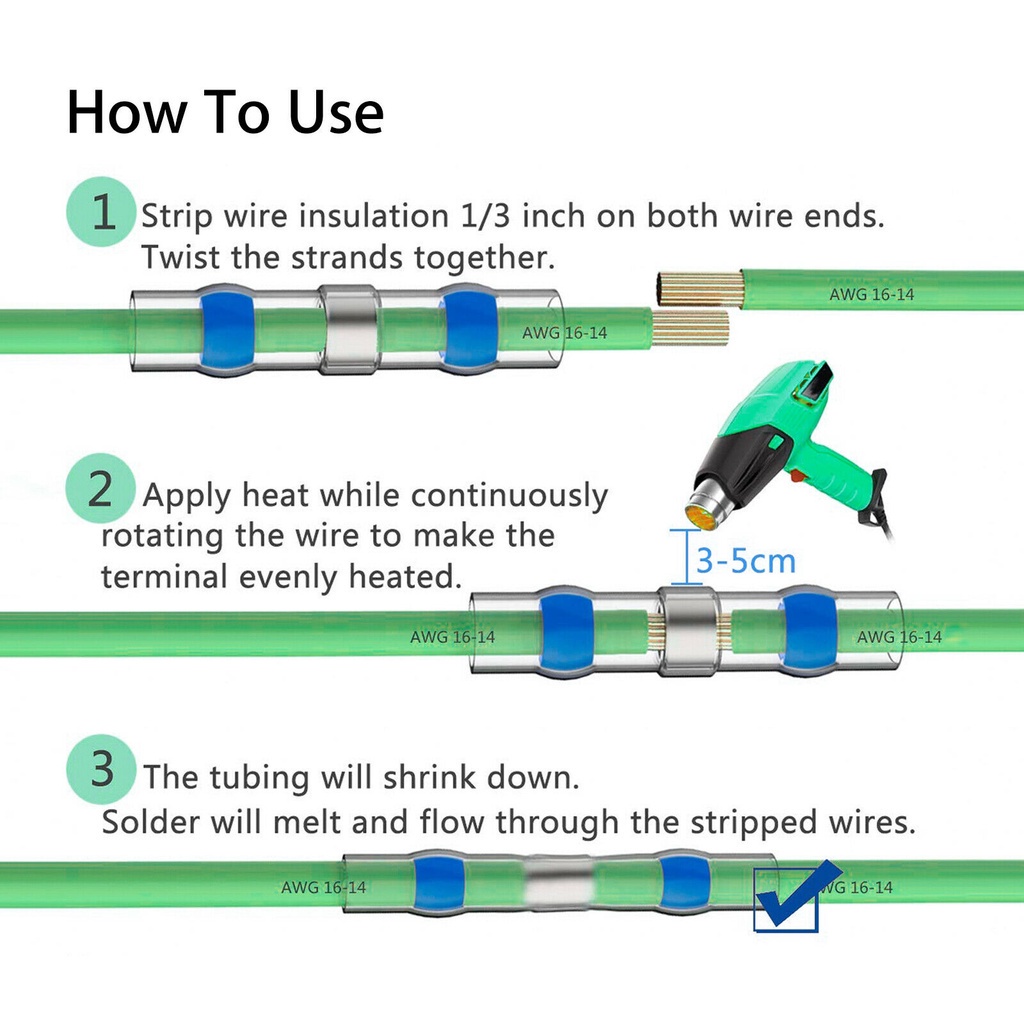

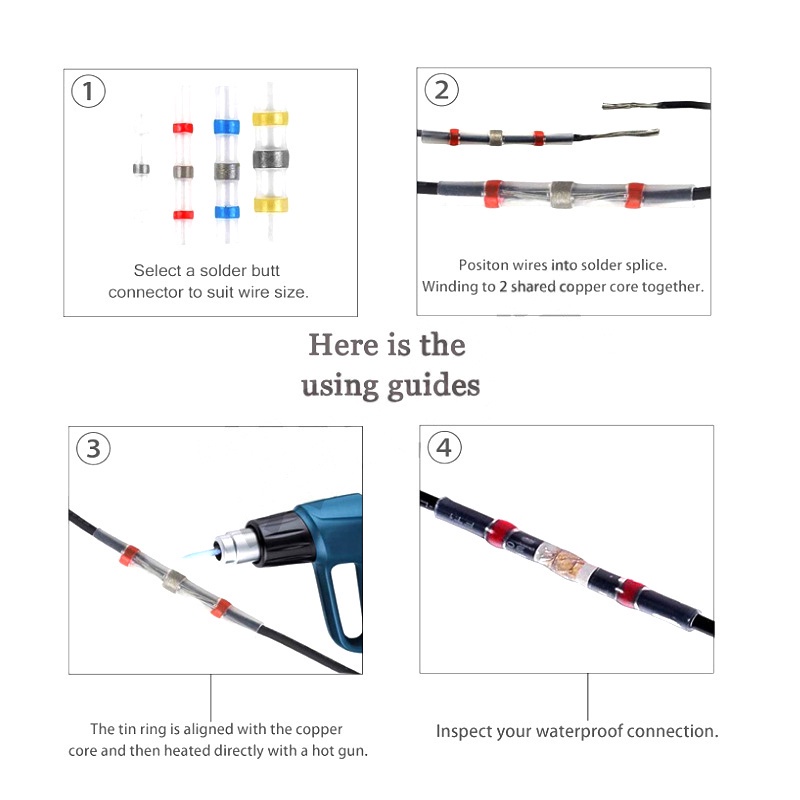

An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications
Polyolefin tubing in outside and hot melt adhesive in inside
Solder and seal and with advanced waterproof function
Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation
Material : Tinned Copper
Color : Red, Blue, White, Yellow
Size :
40 x Red Shrink Connectors : diameter 3.0 mm, cable cross-section 0.5-1.0 mm²
30 x Blue Shrink Connectors : diameter 5.0mm, cable cross-section 1.0-2.5 mm²
20 x White Shrink Connectors: diameter 1.5 mm, cable cross-section 0.3-0.5 mm²
10x Yellow Shrink Connectors: diameter 6.0 mm, cable cross-section 4.0-6.0 mm²

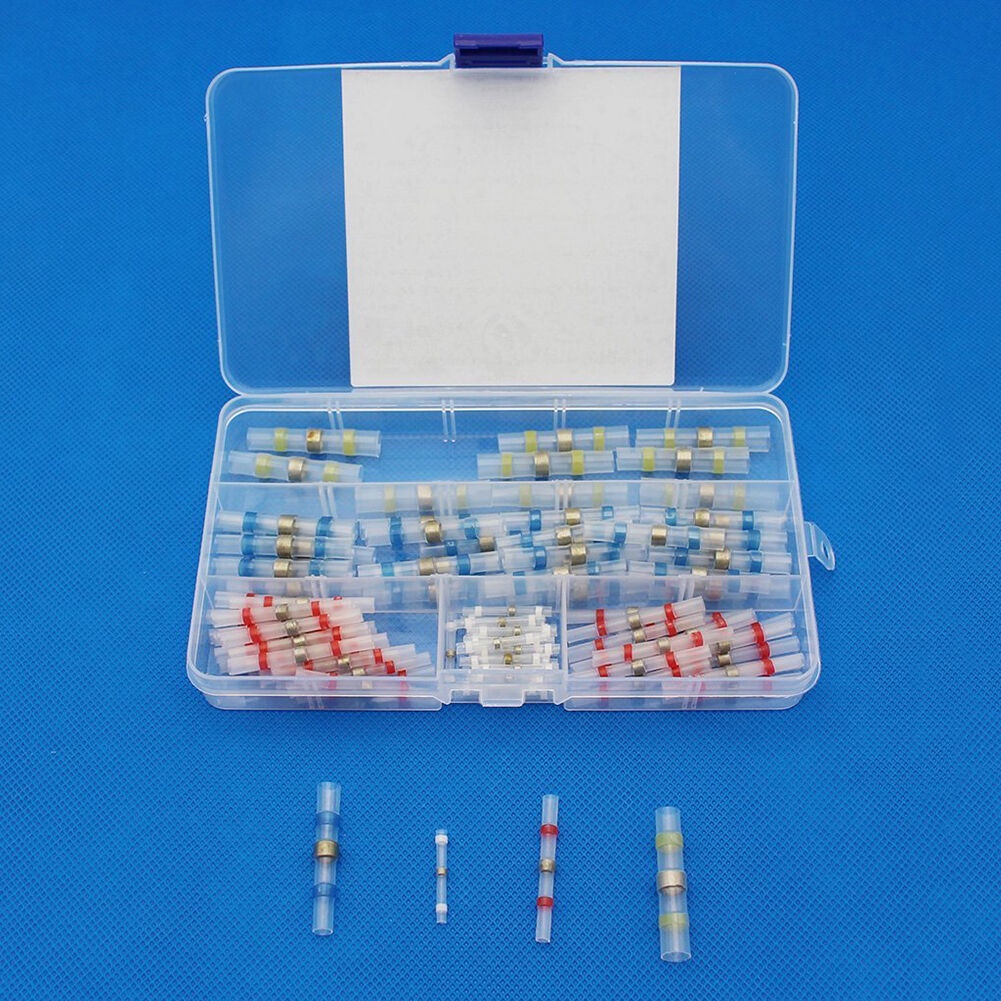

Package included :
100 pcs * heat shrink connectors


*************************************************************************
100PCS Multi-color

Specification:
  - 100pcs Mixed Solder Sleeve Heat Shrink Butt Wire Splice Terminal Connector
  - An easy one step connection of wires, soldered, insulated and sealed
  - Fast, efficient, no crimping required
  - Solder and seal and with advanced waterproof function
  - Transparent heat shrink sleeve allows for precise visual inspection
  - Greater pull strength
  - Ideal used in electronics, railway, marine, automobile, motorcycle, aerospace and other outdoor applications
  - Color: Red, Blue, White, Yellow, Black

Package includes:
    10x Red Solder Heat Shrink Sleeve
    10x Blue Solder Heat Shrink Sleeve
    5x White Solder Heat Shrink Sleeve
    5x Yellow Solder Heat Shrink Sleeve
    70x Black Heat Shrink Sleeve
********************************************
250PCS Multicolor
Shrinkage rate 2: 1
Working temperature: -55℃—125℃
Minimum recommended shrink temperature: 80°C/ 176°F
Minimum recommended solder melting temperature: 138℃/ 280.4℉
Full solder melting temperature: 160℃

1. Welding and sealing, with advanced waterproof function
2. The transparent heat shrinkable tube can be used for precise visual inspection
3. Greater pull
4. Used in electronics, railways, ships, automobiles, motorcycles, aerospace and other outdoor applications

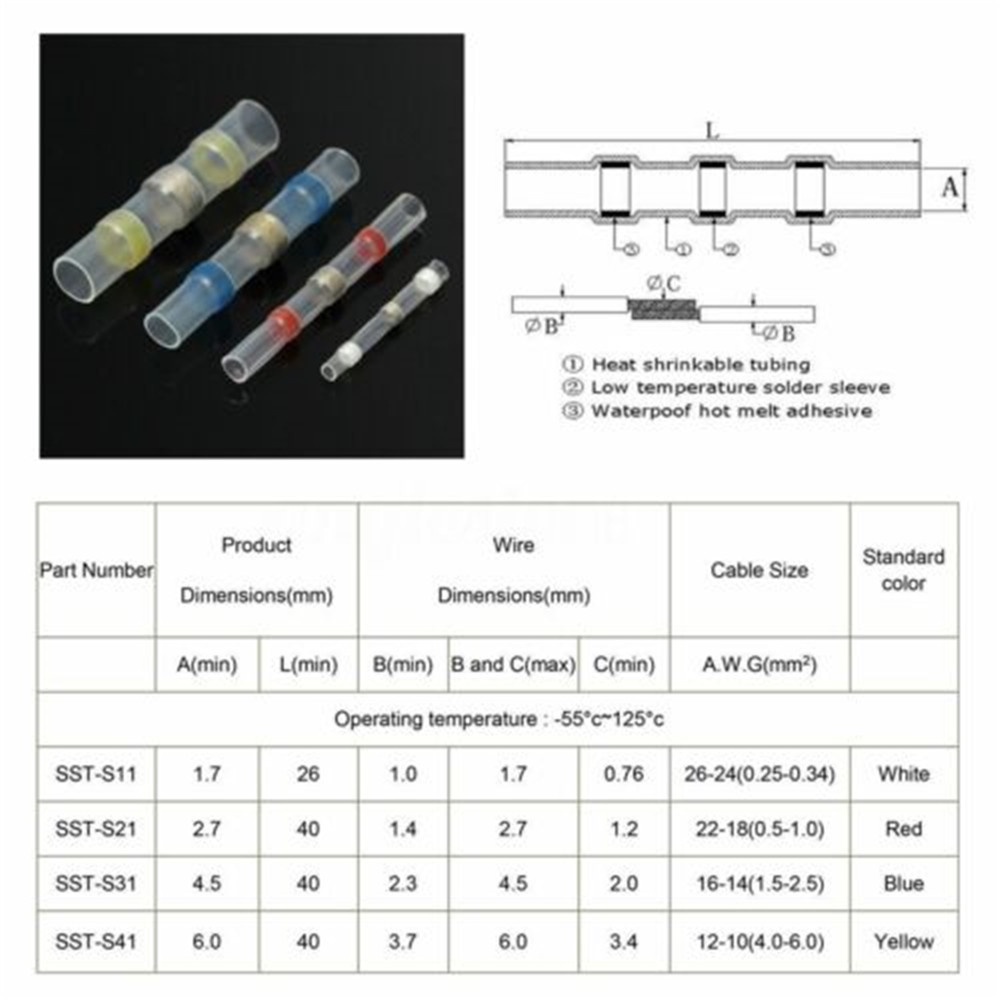

Parameter:
Yellow: diameter 6MM, applicable wire specification 4.0-6.0 MM² (AWG 12-10);
Blue: diameter 5MM, applicable wire specification 1.0-2.5 MM² (AWG 16-14);
Red: diameter 3MM applicable wire specification 0.5-1.0 MM² (AWG 22-18);
White: diameter 1.5MM, applicable wire specification 0.25-0.35MM² (AWG 26-24);
Black heat shrinkable terminal: 3.2/1.6MM 20MM long,Black heat shrinkable tube: 3.2*20MM.

Package includes:
35x red solder heat shrinkable tubing
30x blue welded heat shrinkable tubing
25x white solder heat shrinkable tubing
10x yellow solder heat shrinkable tubing
150x black heat shrink tubing
********************************************************************

Yellow，Blue，Red，White（100pcs）
Solder Terminal Heat Shrinkable Middle Tube
Quantity：100PCS
Color：Yellow，Blue，Red，White
