NEW 8 Channel Analog Digital IO Module RS485 Modbus Rtu Protocol ADC DAC N4DBA06

Detail NEW 8 Channel Analog Digital IO Module RS485 Modbus Rtu Protocol ADC DAC N4DBA06

Product Feature
1: Widely used
2: Simple installation
3: Working voltage: DC 12 (DC 12-25V recommended power supply with small ripple)
4: Insulation level: flame retardant VO level
5: High security
1. Function description:
1Working voltage: DC 12 (DC 12-25V recommended power supply with small ripple)
2 Working current: 14-34MA (related to the size of the output current)
3 MODBUS RTU instruction support 03 06 function code

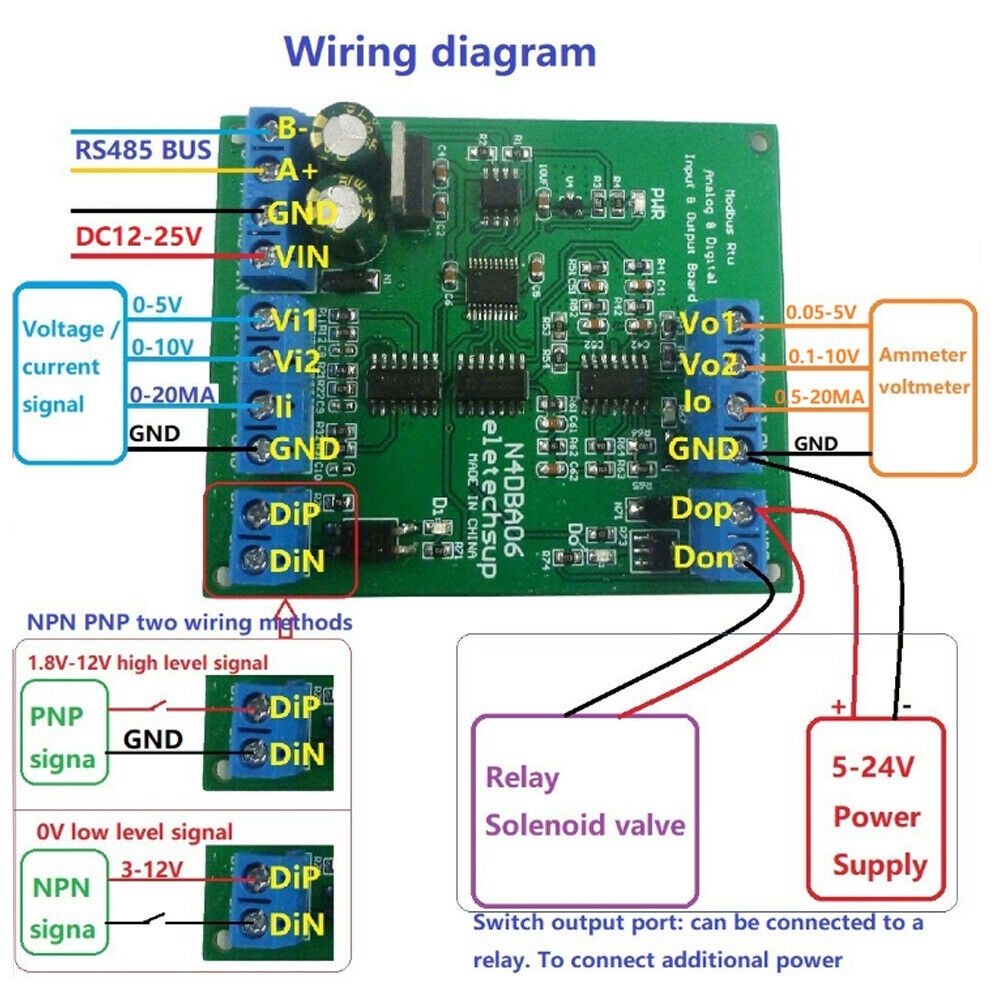

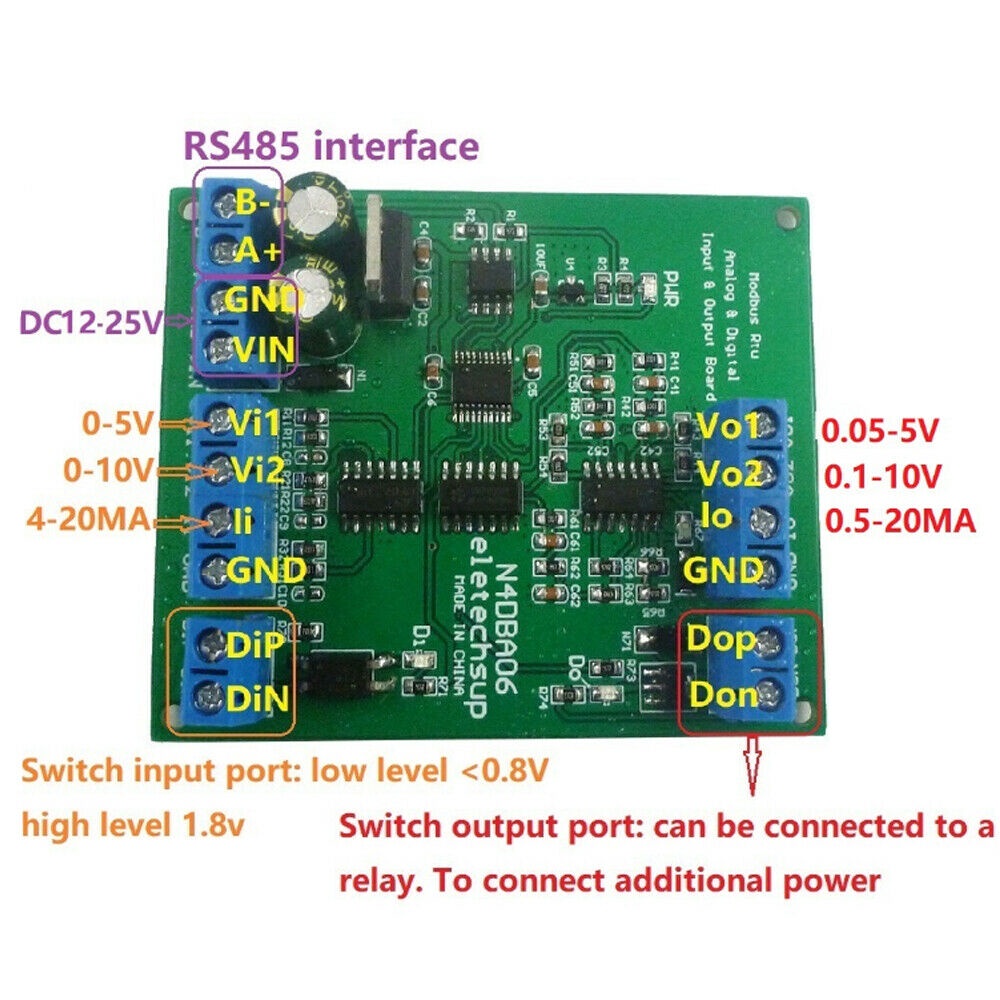

4 3 analog input channels, 1 switch input channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP Photoelectric isolation input)
5 3 analog output channels, 1 switch output channel: Vo1 is 0.05-5V voltage output (<20MA), Vo2 is 0.1-10V voltage output (<20MA), Io is 0.5-20MA current output; DoP DoN is Switch output port (maximum drive current 500MA, can directly drive relays and solenoid valves)
6 Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.01MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated
7 In addition to the computer serial port super terminal input, MODBUS RTU commands can also be input by PLC
8 In MODBUS RTU command mode, it can support up to 247 devices to be used in parallel

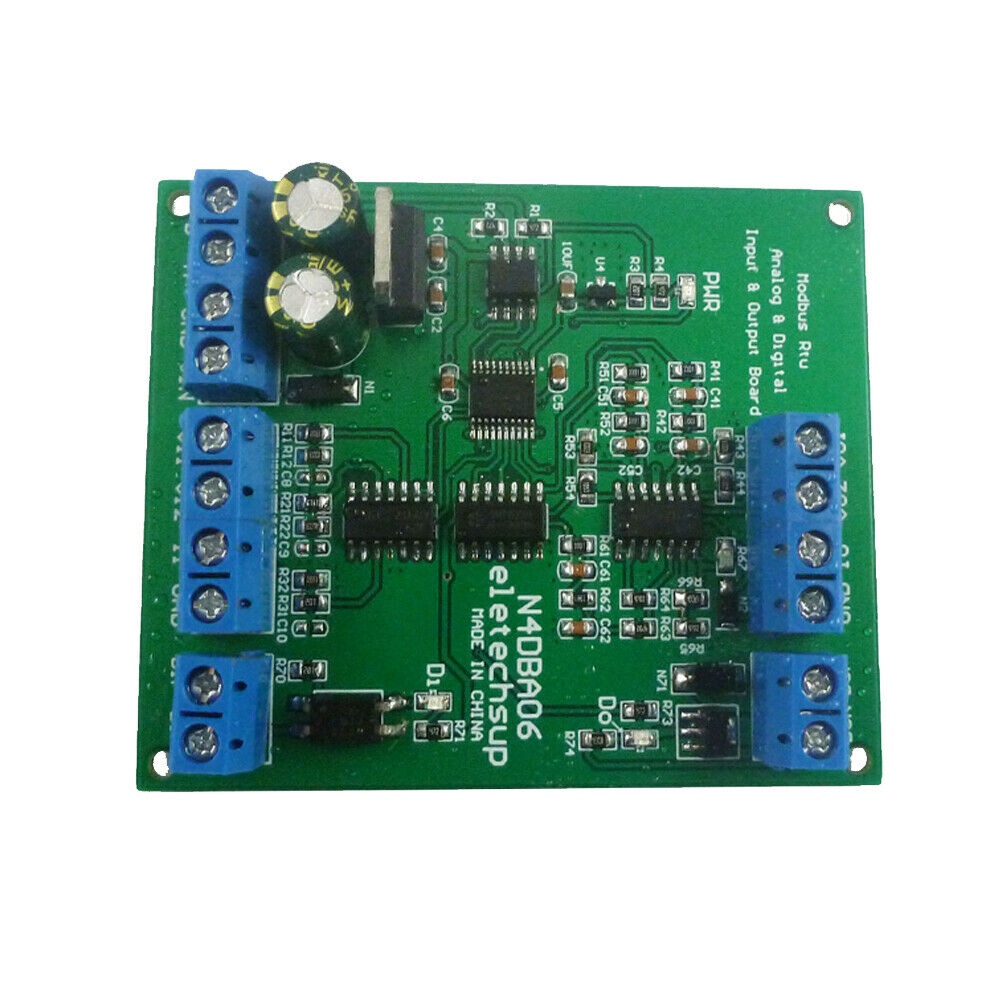

9 Size: 60 * 72 * 18mm (circuit board); 63 * 87 * 42mm (with rail box)
10 Weight: 33g (circuit board); 85g (box with guide rail)

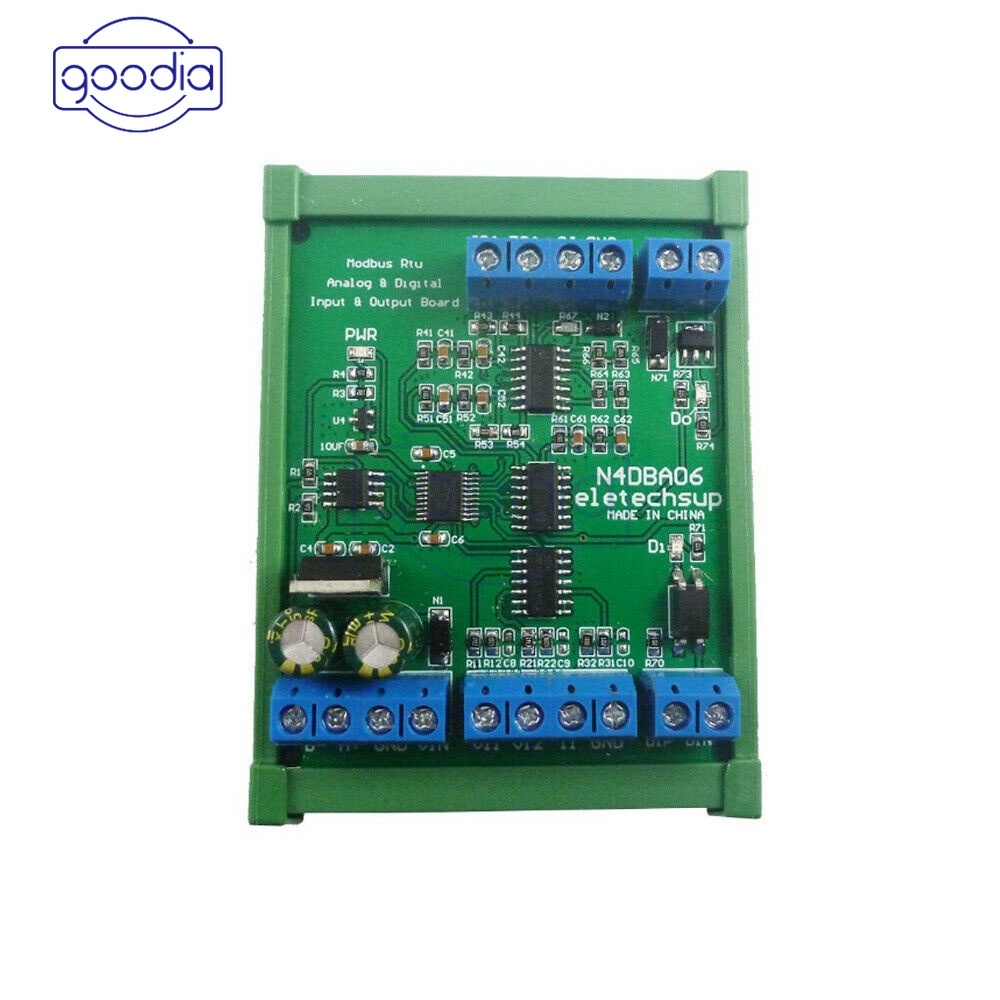

DIN rail box parameters:
Product model: UM72
Color: green
Width: suitable for circuit board width UM72 (72 cm)
Insulation grade: Flame retardant VO grade
Base plate length: suitable for 60 cm circuit boards
Installation method: DIM35 and C45 guide rai
