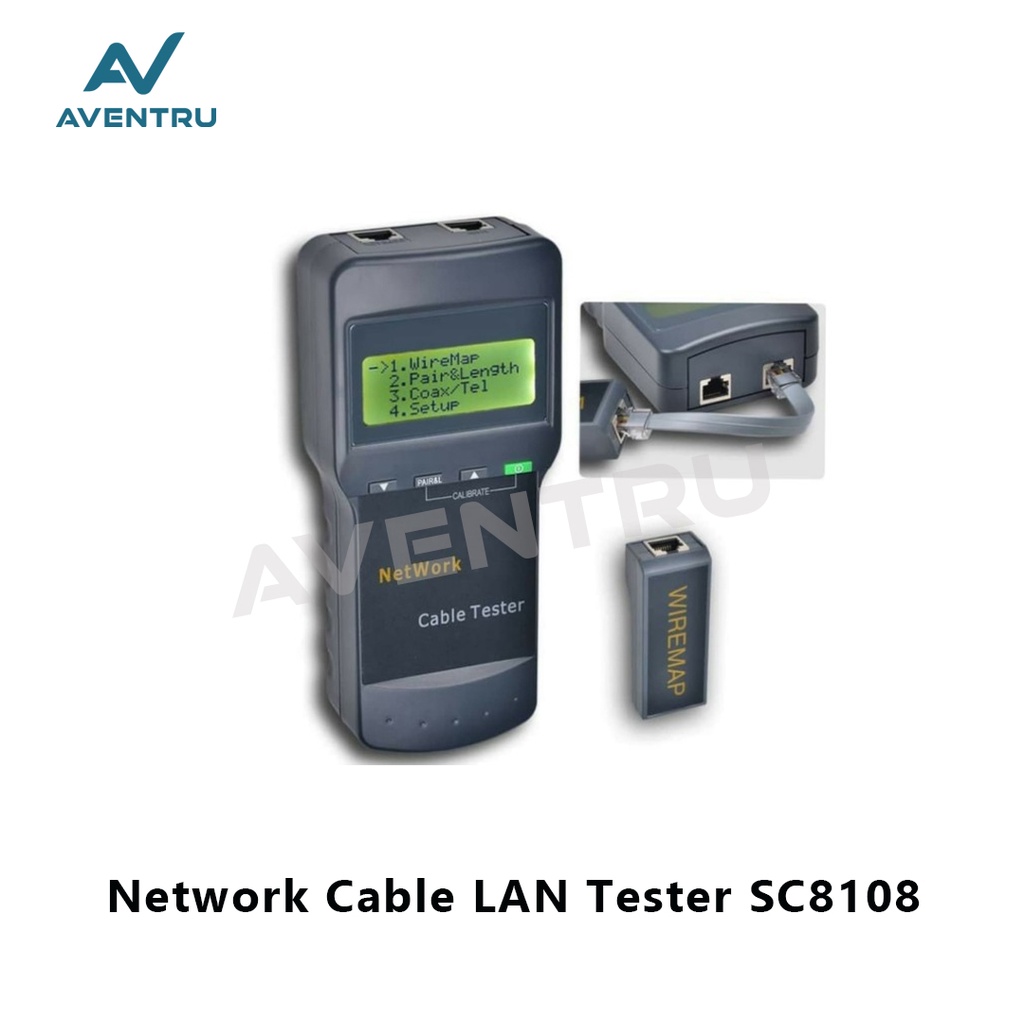

Detail Network Cable Tester Digital SC8108 LCD CAT5 RJ45 LAN Kabel Tester
LAN Tester DIGITAL SC8108 - DIGITAL LAN Tester CAT5e
Deskripsi
SC8108 CAT5 RJ45 Network LAN Length Cable Tester Meter Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R). LCD: 4 x 16 characters (visible dimension: 61.6 x 25.2 mm) Application: STP / UTP twin twisted cable. Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R) Length measurement of twin twisted cable: Scope : 1350M (31,200 FT). Calibration accuracy : 3% ( 0.5m or 1.5 ft) (calibrating cable > 5 M) Shipment accuracy : 5% ( 0.5m or 1.5 ft) (AMP, AT&T Class 5 cable) Display : M or FT Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m. Working temperature: -10C to 60C Powered by 4 AA batteires (NOT included) Dimension: 180 x 80 x 40 mm ISI KEMASAN/PAKET 1 X Network tester 1 X User manual
FUNGSI PRODUK 1. Mudah dioperasikan 2. Memeriksa kesalahan kabel dari 5E & 6E kabel, 3. Hubung singkat, kawat jumper, membalikkan koneksi dan cross-talk gangguan 4. Cari lokasi kabel atau koneksi error 5. Mengukur panjang kabel, dan menemukan lokasi sirkuit terbuka dan sirkuit pendek.
Gambar produk
Network Cable Tester Digital SC8108 LCD CAT5 RJ45 LAN Kabel TesterNetwork Cable Tester Digital SC8108 LCD CAT5 RJ45 LAN Kabel Tester
