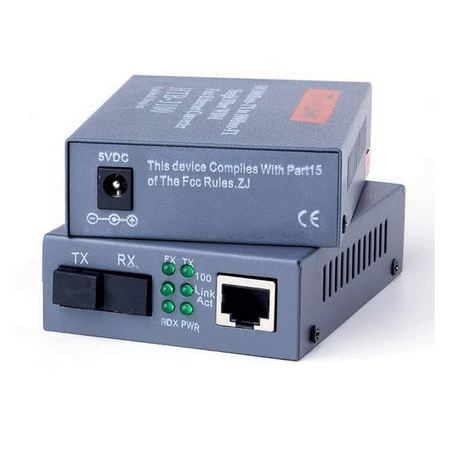

Netlink HTB3100 Fiber Optic Media Converter RJ45 25KM 10/100M Fiber media converter HTB-3100

Detail Netlink HTB3100 Fiber Optic Media Converter RJ45 25KM 10/100M Fiber media converter HTB-3100

Netlink HTB3100 Fiber Optic Media Converter RJ45 25KM 10/100M Fiber media converter HTB-3100

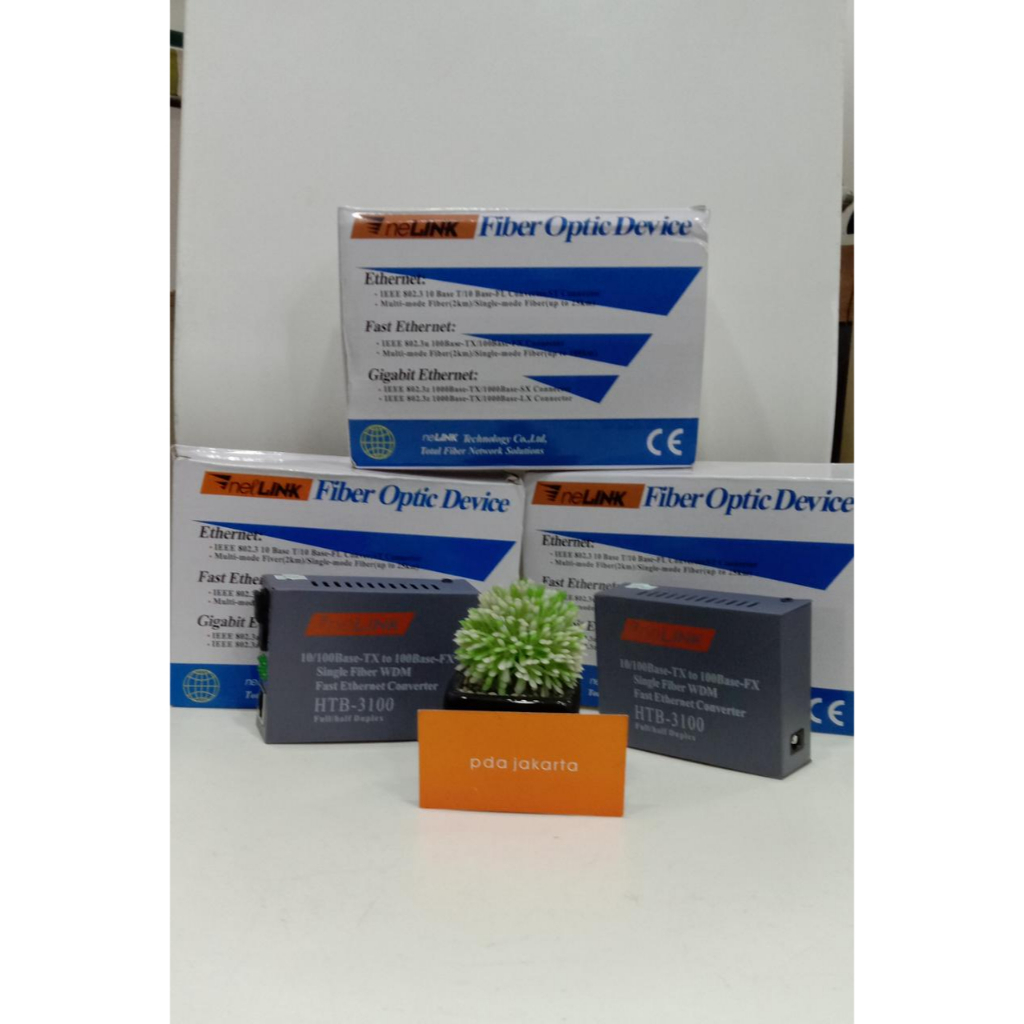

Isi Paket :
- 1 x Netlink HTB 3100A
- 1 x Netlink HTB 3100B
- 2 x Adaptor 5Volt (Colokan Bulat PLN Indonesia bukan yang gepeng)
- 1 x User Manual + Box

Feature: Single mode and one optical fiber
It can save half of the fiber,the data on a single fiber and the 10/100 m rate of receiving and sending,where the optical fiber resource is very applicable
- 1.Brand-New, High Quality
- 2.An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
- 3.Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
- 4.Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
- 5.Has 10M/100M adaptive capacity ;
- 6.Ethernet interface can adaptively direct line / crossover cable connection ;
- 7.Support full / half duplex mode ;
- 8.Support IEEE802.3X duplex flow control and half-duplex backpressure flow control
- 9.Supports broadcast storm prevention function ;
- 10.1916 Byte support large data frame ( optional ) ;
- 11.Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
- 12.UTP up to 100 meters ; longest 100 km single-mode fiber ;
- 13.There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working
status of the transceiver and determine the cause of the fault ;
- 14.There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;
- 15.Working temperature : 0 ~ 50 degree;
- 16.Storage temperature : - 40 ~ 70 degree ;
- 17.Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.
- 18.outer Dimensions: 95mm × 71mm × 25mm
- 19.Package: ESD package,Carton
