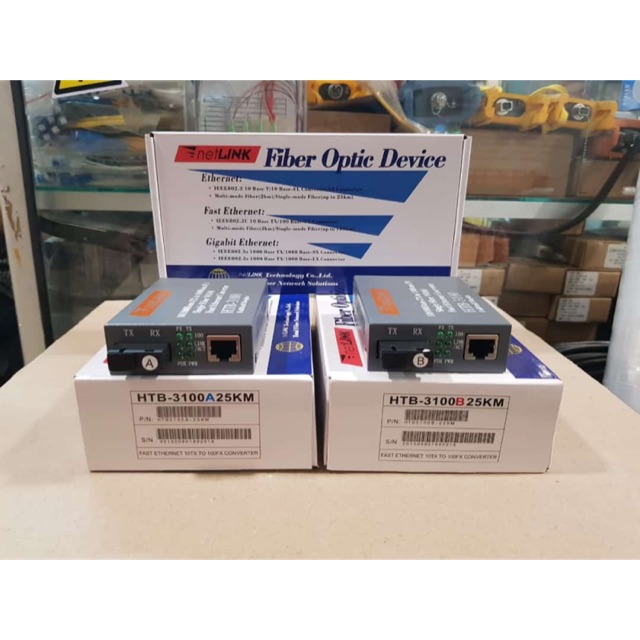

NETLINK HTB-3100B 25KM - KONVERTER FIBER OPTIK - FO TO LAN

Detail NETLINK HTB-3100B 25KM - KONVERTER FIBER OPTIK - FO TO LAN

Bidirectional 10/100M adaptive Ethernet fiber optic transceivers , using the latest U.S. KENDIN chip, high -quality single-fiber bidirectional optical transceiver module ( brand new manufacturers ) , stable performance and excellent quality. For Telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.

Model: HTB-3100B-25KM
Fiber optic type: Single mode
Connector type: SC
Transmit Wave length: TX.1550nm/RX.1310nm
Transmit power: -13~-6dBm
Receiver sensitivity: -30dBm
Transmission distance: 20km
Allowable loss: 17dBm

Feature:
1. Brand-New, High Quality.
2. An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
3. Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
4. Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;
5. Has 10M/100M adaptive capacity ;
6. Ethernet interface can adaptively direct line / crossover cable connection ;
7. Support full / half duplex mode ;
8. Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;
9. Supports broadcast storm prevention function ;
10. 1916 Byte support large data frame ( optional ) ;
11. Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
12. UTP up to 100 meters ; longest 100 km single-mode fiber

Packing Contents:
1 x HTB-3100B
1 x Power supply
1 x Manual
