Detail NetLink HTB 3100 AB HTB3100 AB Single mode Media Converter Netlink
Feature: Single mode and one optical fiber
It can save half of the fiber,the data on a single fiber and the 10/100 m rate of receiving and sending, where the optical fiber resource is very applicable
1.Brand-New, High Quality 2.An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ; 3.Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ; 4.Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards 5.Has 10M/100M adaptive capacity ; 6.Ethernet interface can adaptively direct line / crossover cable connection ; 7.Support full / half duplex mode ; 8.Support IEEE802.3X duplex flow control and half-duplex backpressure flow control 9.Supports broadcast storm prevention function ; 10.1916 Byte support large data frame ( optional ) ; 11.Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ; 12.UTP up to 100 meters ; longest 100 km single-mode fiber ; 13.There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working status of the transceiver and determine the cause of the fault ; 14.There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ; 15.Working temperature : 0 ~ 50 degree; 16.Storage temperature : - 40 ~ 70 degree ; 17.Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm. 18.outer Dimensions: 95mm × 71mm × 25mm 19.Package: ESD package,Carton
Paket yg di dapat :
1 x Netlink HTB 3100 A 1 x Netlink HTB 3100 B 2 x Adaptor 5V2A EU (colokan bulat indonesia) 1 x User manual

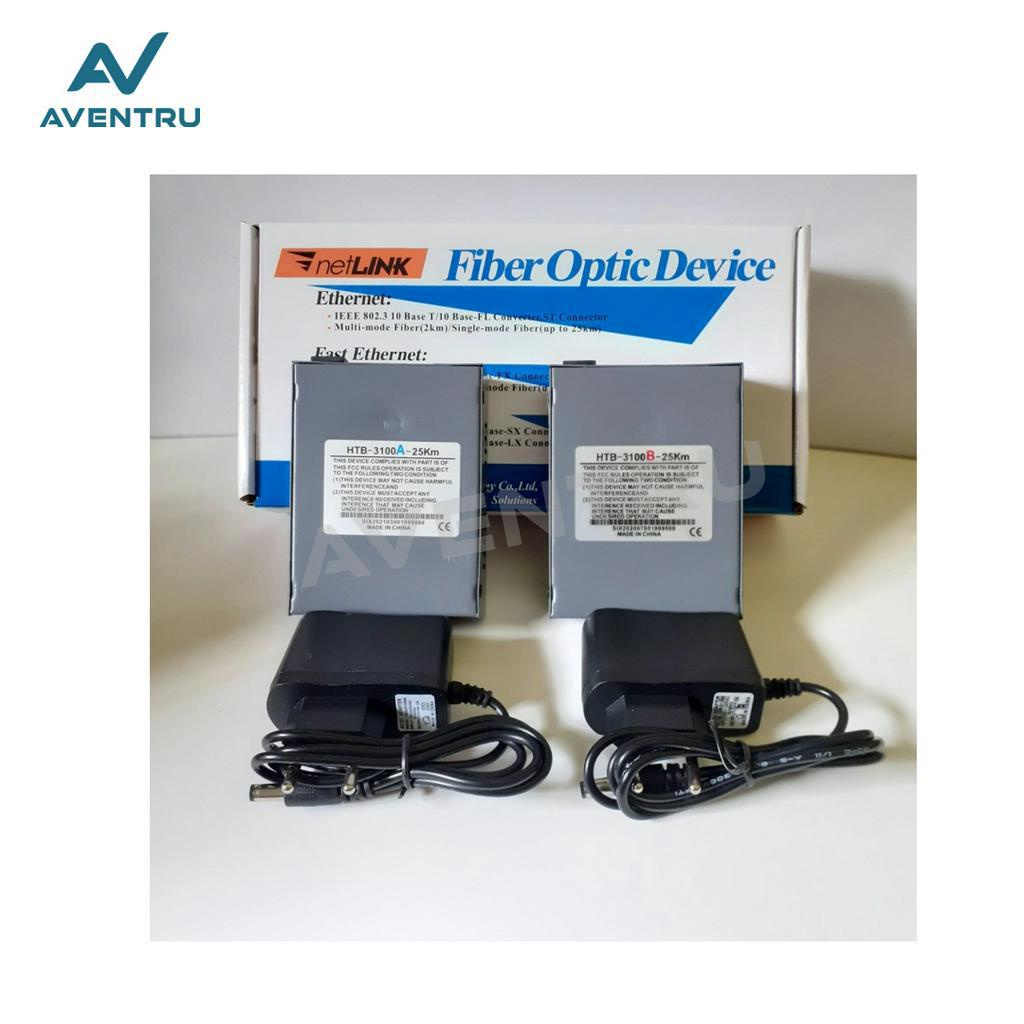

Gambar produk
NetLink HTB 3100 AB HTB3100 AB Single mode Media Converter NetlinkNetLink HTB 3100 AB HTB3100 AB Single mode Media Converter Netlink
