Netlink HTB 3100 10/100Mbps Converter FO Fiber Optic

Detail Netlink HTB 3100 10/100Mbps Converter FO Fiber Optic

Bisa langsung pesan order di shopee Ya Gan
kami menjual barang original bergaransi resmi
Harga dan stok bisa berubah setiap saat tanpa pemberitahuan sebelumnya
Silahkan chat dahulu untuk cek Stok Barang

setiap Konsumen yang membeli produk ditoko kami
apabila ada garansi, klaim garansi bisa dibantu lewat toko juga
apabila daerah agan tidak ada service center/distributornya

yang mau nambah bubble wrap silahkan klik link ini
https://shopee.co.id/bubble-wrap-i.225428636.5255998882?position=0

spesifikasi :

Bidirectional 10/100M adaptive Ethernet fiber optic transceivers , using the latest U.S. KENDIN chip, high -quality single-fiber bidirectional optical transceiver module ( brand new manufacturers ) , stable performance and excellent quality. For Telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.

Model: HTB-3100B-25KM
Fiber optic type: Single mode
Connector type: SC
Transmit Wave length: TX.1550nm/RX.1310nm
Transmit power: -13~-6dBm
Receiver sensitivity: -30dBm
Transmission distance: 20km
Allowable loss: 17dBm

Feature:
1. Brand-New, High Quality.
2. An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
3. Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
4. Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;
5. Has 10M/100M adaptive capacity ;
6. Ethernet interface can adaptively direct line / crossover cable connection ;
7. Support full / half duplex mode ;
8. Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;
9. Supports broadcast storm prevention function ;
10. 1916 Byte support large data frame ( optional ) ;
11. Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
12. UTP up to 100 meters ; longest 100 km single-mode fiber

Packing Contents:

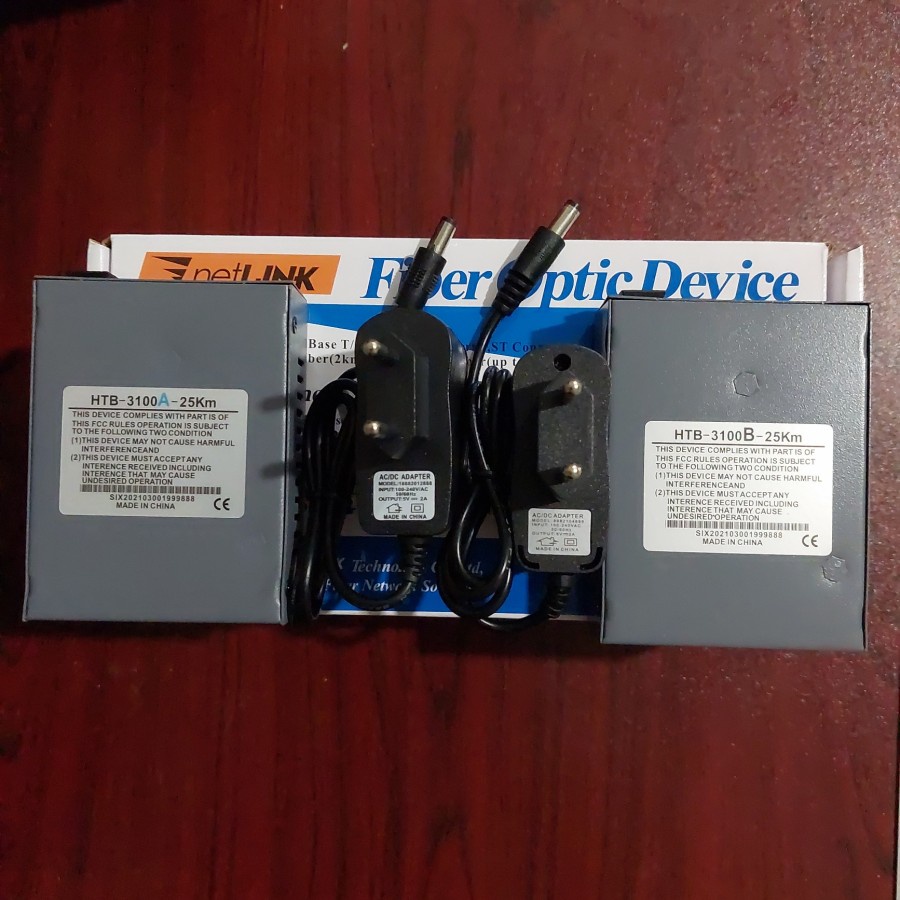

1 x HTB-3100B
1 x Power supply
1 x Manual
