Netlink HTB-104 1fo 4Lan Port Sepasang

Detail Netlink HTB-104 1fo 4Lan Port Sepasang

Deskripsi Netlink HTB3100 1 in 4 Port Sepasang
Main Features:
Complies with IEEE 802.3 10 base-T standard, IEEE 802.3u, IEEE802.3d, IEEE802.3ab, IEEE 802.3x

Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M
Ethernet port supports MDI/MDI-X auto crossover
Extends distances up to 20km (single mode fiber)
Auto MDI/MDI-X support on RJ-45 port
Support Full Duplex and Half Duplex
Status LED's for Power, FRL, 10/100, FRX and FDX to easily monitor network status
1Mbit RAM for data buffer
Supports jumbo frame size 9K bytes

Optical Port:
1310nm Single mode
Connectors: SC connector
Ethernet Port:
Connectors: RJ-45 Connector

LED Indicators:
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps,else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off

Specifications:
Output voltage: DC 5V/2A
Power dissipation: ≤3 watts
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Housing: Metal enclosure

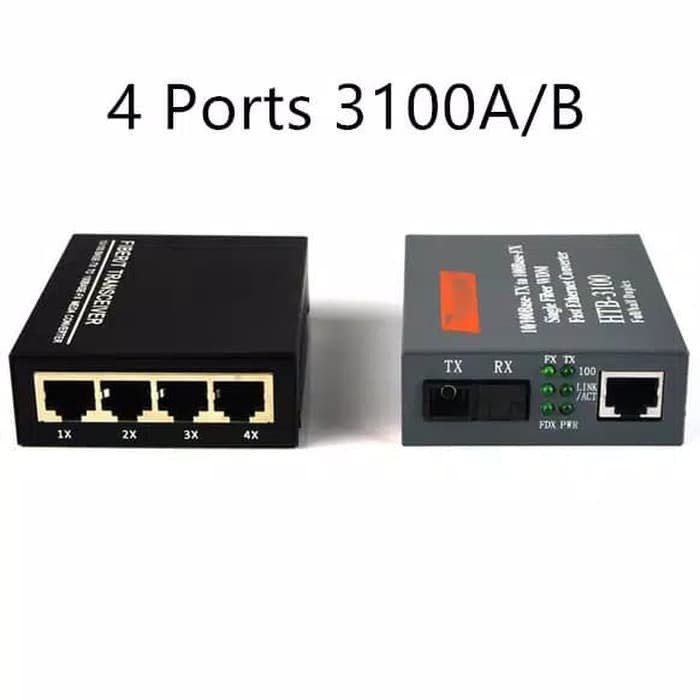

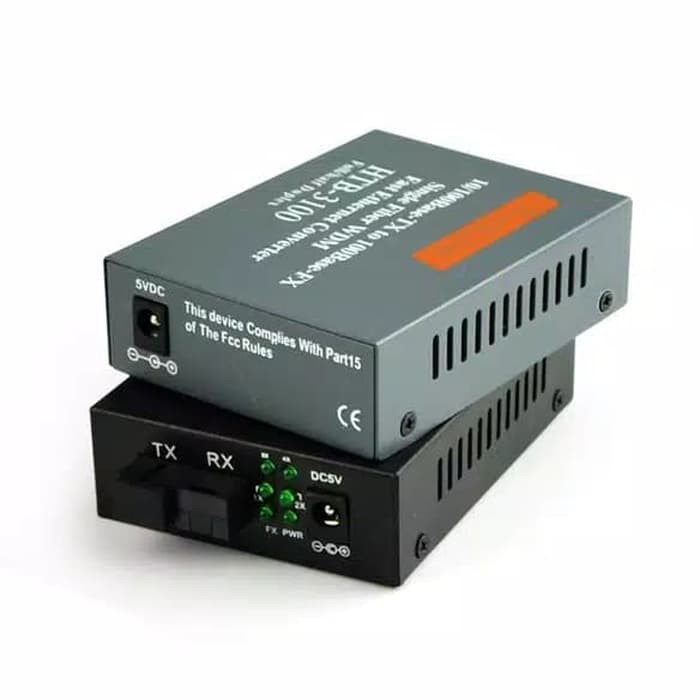

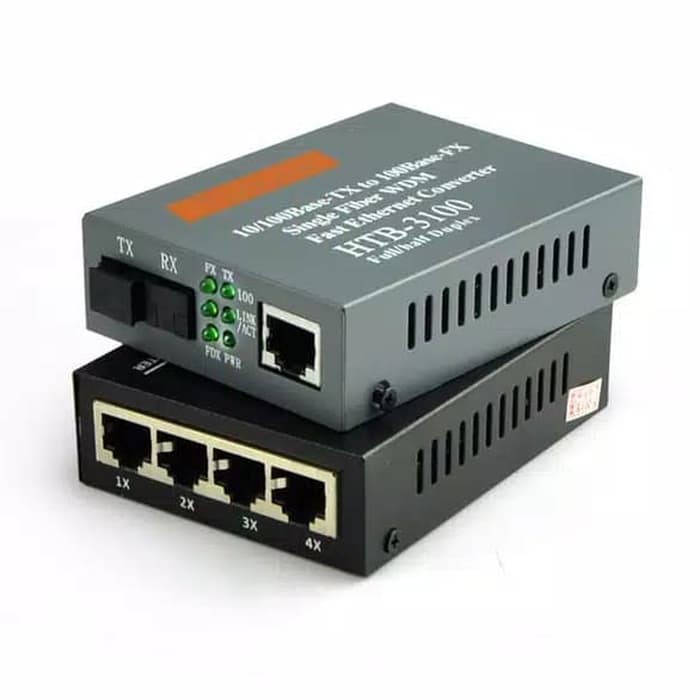

Gambar produk
