Netline HDMI Extender Over Fiber Optic Upto 20Km

Detail Netline HDMI Extender Over Fiber Optic Upto 20Km

Versi dng hdmi loop di transmitternya.

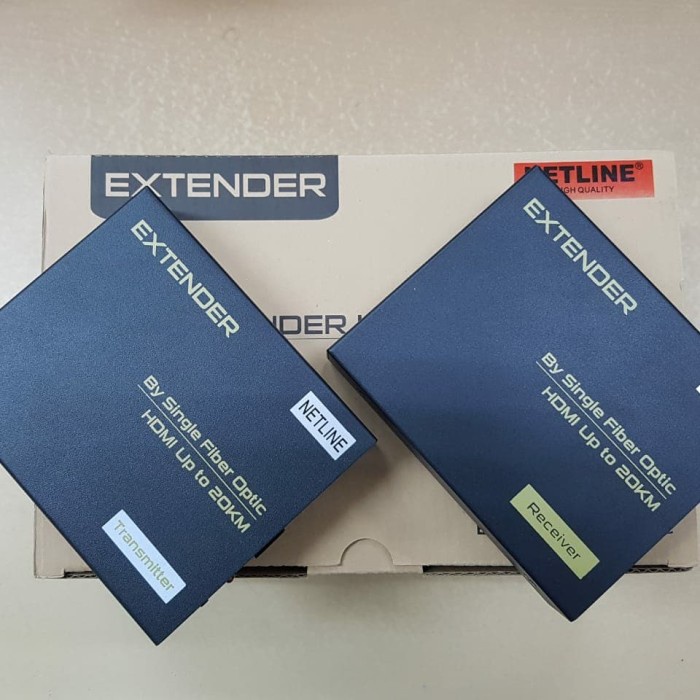

The product consists of a transmitter and receiver,

The host computer through a single fiber audio, VGA interface, extended to the distal end, the user can listen to the host computer in real-time picture and sound at the distal end.

This product supports HDMI high-definition audio and video real-time transmission, maximum resolution: 1920 1080 @ 60Hz, the maximum transmission distance up to 2 km (multimode) / 20 km (single-mode). Product can be used in military command and control, traffic police traffic management, energy and electricity supply industries, government departments, medical systems, trade shows, multimedia hall, public utilities and other fields.

1, supports a maximum resolution of up to 1920 1080 @ 60Hz.

2, the optical fiber transmission distance up to 2000 m (multimode) optical fiber transmission distance up to 20 km (single-mode).

3, a single optical fiber transmission, pure hardware design, no driver, compatible with any system, plug and play.

4, the device supports HDMI, Audio interface.
Input signal: one (HDMI, AUDIO)
Output signal: a receiver all the way (HDMI, AUDIO)
Transmission distance: 2000 m (multimode), 20 km (single-mode)
Video input interface: HD15PIN (mother prepared HDMI)
Video output interface: HD15PIN (mother prepared HDMI)
Video resolution: 1080p support
Optical input and output interfaces: single / multi-mode SC-type
Transmission wavelength: 850nm / 1310nm / 1550nm
Adaptation voltage range
Input: 100-240V ~ 50-60HZ
Output: DC5V / 1A
Transmitter power 4W
Receiver power consumption

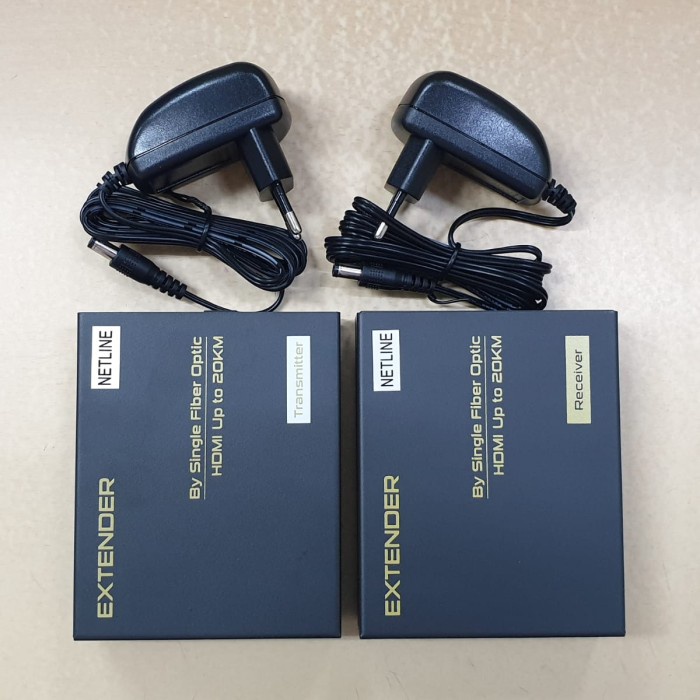

1 Set TX + RX
2 Unit Adaptor 5v 2a

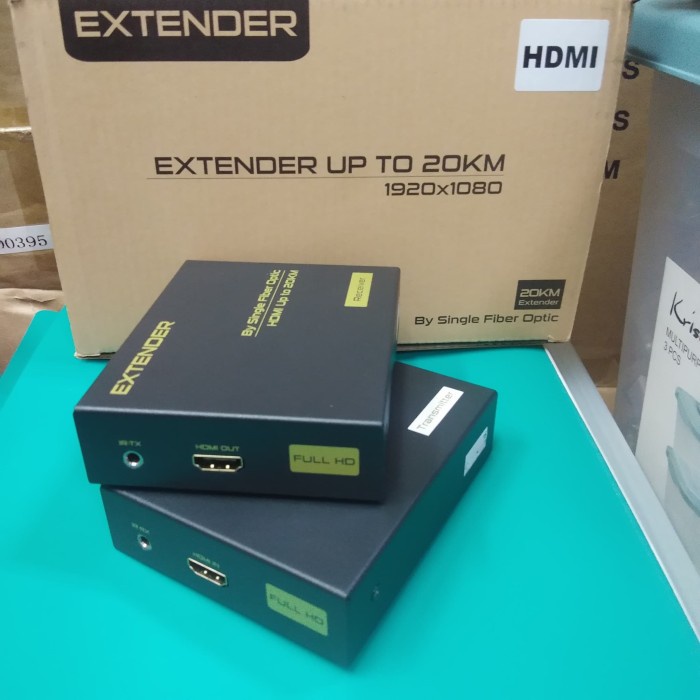

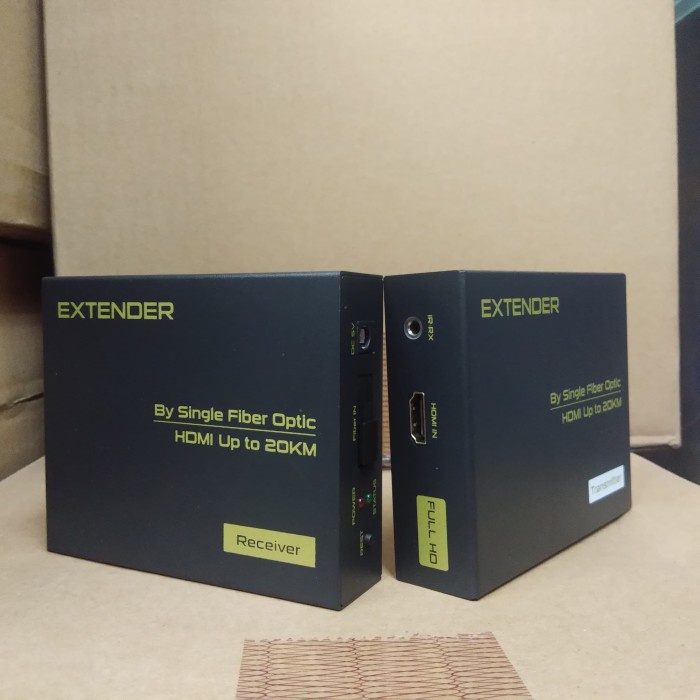

Gambar produk
