Netfo GT4000D Mini OTDR Optical Fiber Tester N

Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > Netfo GT4000D Mini OTDR Optical Fiber Tester N
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Netfo GT4000D Mini OTDR Optical Fiber Tester N

Meter model: OTDR-4000D
Central wavelength: 1310nm/1550nm + 20nm
Applicable fiber type: single mode
Interface type: FC/PC
Measurement range: 0~60KM
LCD display: 480 x 5.7, 640 inch color LCD
Interface: USB
Output interface: FC/UPC (standard, optional universal joint)
Power supply: AC/DC adapter: voltage range: 100V ~ 240V (1.5A), frequency range: 50/60Hz
DC: 15V ~ 20V (2A
)Internal lithium battery: 7.4V, 4400mAh, battery working time: 10 hours (room temperature) 3
Interface language: Simplified Chinese / English key switch
Environmental adaptability
Working temperature: 0 C ~ 40 (battery charge: 5 to 40)
Storage temperature: - 40 to 70 DEG C (batteries not included)
Relative humidity: 5%95%, no condensation
Appearance size: 210mm x 100mm x 60mm
Weight: About 1kg
Fungsi:

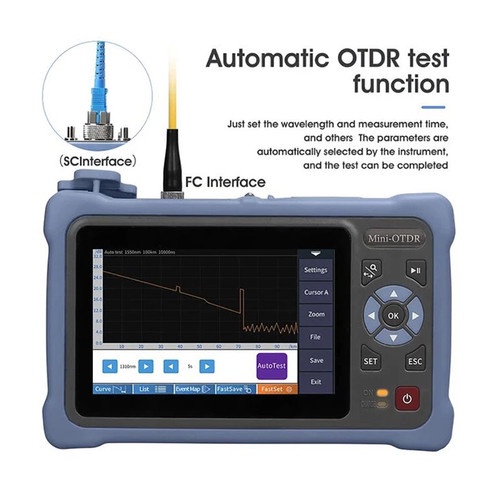

1. OTDR
2. OPM
3. VFL
4. LS
5. NETWORK CABLE TEST
6. FIBER INSPECTION
7. Event map
8. Loss test
9. Flashlight

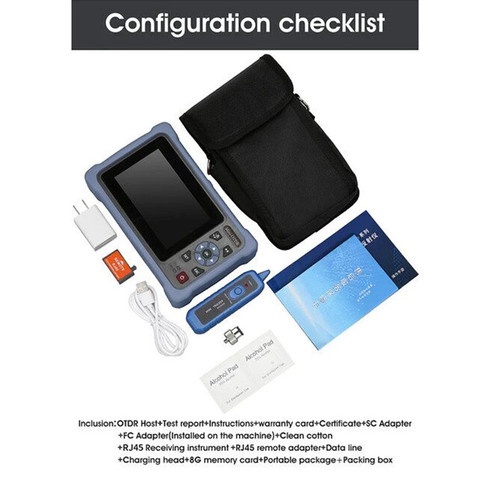

Kelengkapan :
Unit
Bag
Charger
Remote lan tester
Adapter SC/FC
Kartu garansi
Sertifikat kalibrasi
User manual

Gambar produk

Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
Netfo GT4000D Mini OTDR Optical Fiber Tester N
