Netfo FOWPB Fiber Optic Penyambung Waterproof Protection Box SC FTTH

Komputer & Aksesoris > Komponen Network > Repeater > Netfo FOWPB Fiber Optic Penyambung Waterproof Protection Box SC FTTH
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Netfo FOWPB Fiber Optic Penyambung Waterproof Protection Box SC FTTH

Deskripsi Netfo FOWPB Fiber Optic Penyambung Waterproof Protection Box SC FTTH

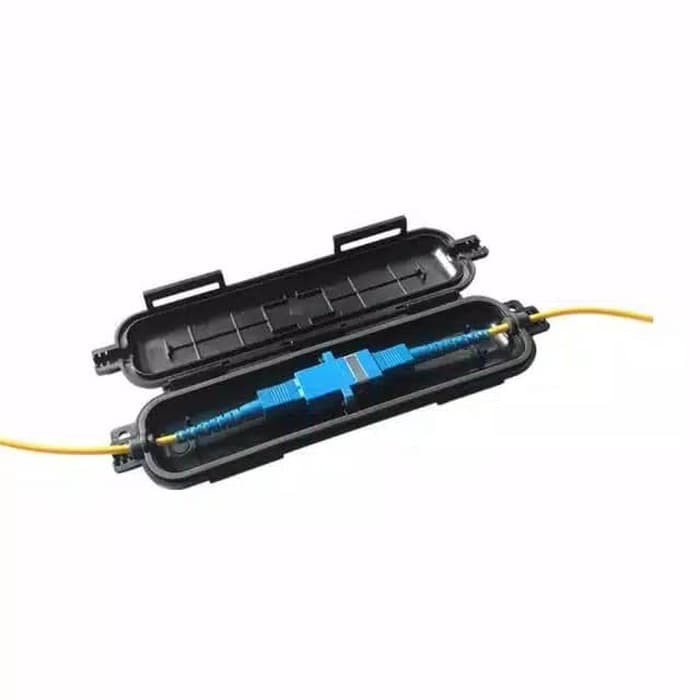

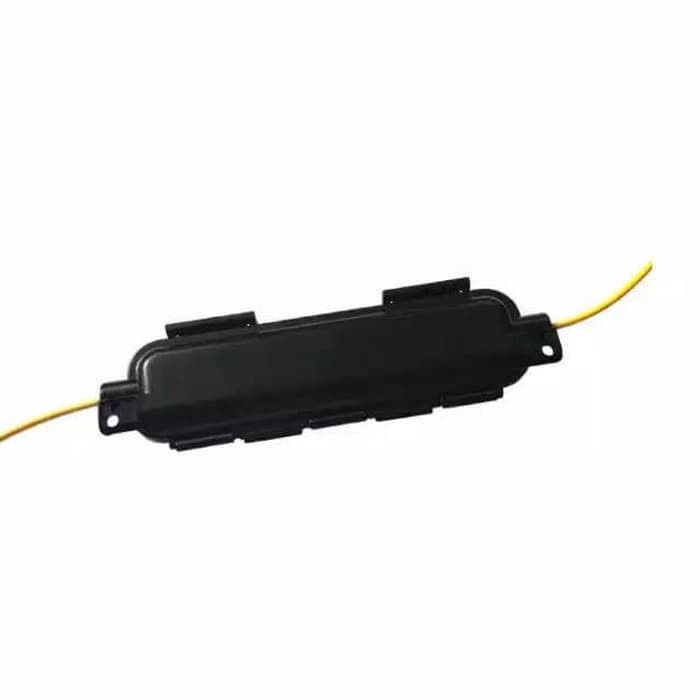

Fiber Optic Waterproof Protection Box SC FTTH

Ready Color Black

fiber optic casing SC cold junction protection box, waterproof and flame retardant optical fiber protection box, optical cable reserved protection box

Fiber curvature radius: 40MM (mm)
Additional loss: 0.2 (dB)
Disc length: 0.5 (m)
Fiber maximum capacity: a variety of options
Withstand voltage strength: 1000 (KV)
Scope of application: trunk cable connection, fiber optic cable laying
Size: 160 x 47 x 17mm
Color: Black
Product Name: SC cold type indoor cable connection protecting box
Product overview: the optical cable connection box is 1 into the 1, suitable for the 2 optical cable, optical fiber cable and the "8" shape of the optical fiber cable continued protection of 3. Can be elevated, wall hanging. Material: new ABS resistance fuel, quality assurance, flame retardant performance in line with the communications industry standards, flame retardant grade UL94V-0
Product use: FTTH FTTH indoor cable connection protecting box,
Product parameters:
Size: 160 x 47 x 17mm
Weight: 0.034KG
Suitable for optical cable diameter: Phi 2- Phi 3mm, 8 character skin cable
Number of cables: 1 to 1
Applicable flange: SC, ST, FC
Structure: open cover type
Color: grey (customizable color)
Seal: TPE sealing ring
Laying method: overhead, wall hanging
Working environment:
Ambient temperature: -45 -+80
Relative humidity: less than 85% (+30 degrees)
Protection level: (EN60529) IP58

Package Included:
1x Fiber Optic Waterproof Protection Box SC FTTH
