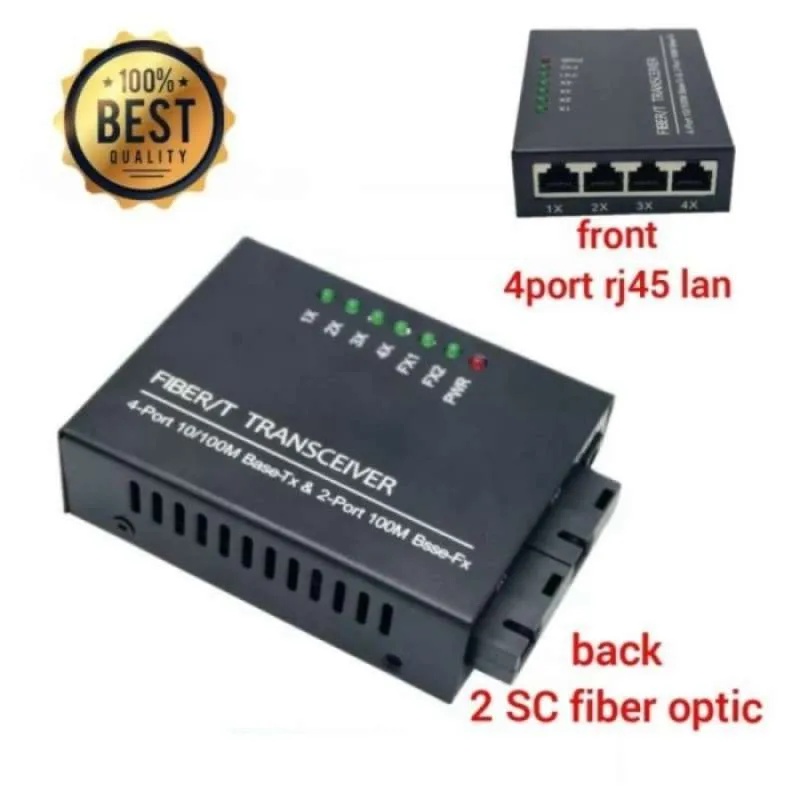

Netfo 4F2L 4Fo 2Lan Media Connverter Fiber 4 Fo 2 Lan M

Detail Netfo 4F2L 4Fo 2Lan Media Connverter Fiber 4 Fo 2 Lan M

Spesifikasi : 4Fo 2Lan
Support the switch between 100Base-FX and 10/100Base-TX
2*155Mbps full duplex fiber port, 2*10/100M adaptive Ethernet ports
Support 10/100M speed rate, MDI/MDIX and half/full-duplex
Each port has the complete LED Indicator light
Support IEEE802.1d Spanning Tree
Support high performance QoS function on each port
Support broadcast storm protection
Support max forwarding packet length 1552bytes
2W power consumption in full load condition
Support less time delay in transmission and isolation protection
Standards
- IEEE802.3 10Base-T
- IEEE802.3u 100Base-TX/FX
- IEEE802.3x Flow control IEEE802.1p QoS
- IEEE802.1d Spanning Tree
- IEEE802.1q VLAN
Certifications
- CCC, CE, FCC, RoHS
Ethernet Port
- Connector: RJ45
- Data Rate: 10/100M
- Distance: 100m
- UTP Type: UTP-5E or higher level
Fiber Port
- Connector: SC/FC/ST slot
- Data Rate: 155Mbps
- Optical Wavelength: 850nm/1310nm/1490nm/1550nm
- Distance: 550m~120km
Performance
- Processing Type: Store and Forward
- MAC Table Size: 1K
- Buffer Space: 448 bit
- Back bandwidth: 0.8G
- Maximum Packet Length: 1552 bytes
- Time Delay: <150μs
Power
- Input Voltage: AC100V~240V 50/60Hz
- Connector: DC Socket
- Working Voltage: 5V
- Power Consumption: 0.7W~2.0W
Environment
- Storage Temperature: -40~70?
- Operating Temperature: -10~55?
- Relative Humidity: 5-95% ( no condensation)

Gambar produk
